On30 Turnout Kitbash

Discussion in 'The Academy' started by Lighthorseman, Dec 14, 2003.

Thread Status:
Not open for further replies.
  1. Lighthorseman

    Lighthorseman Active Member

    Joined:
    Jul 24, 2002
    Messages:
    1,387
    Likes Received:
    0
    As requested, here is a step-by-step pictorial of how I convert Atlas HO code 83 turnouts to On30.

    I went this route for two reasons.

    One - The Peco On30 track is lovely, but I wanted code 83 rail, not code 100.

    Two - I had loads of code 83 track and turnouts, and being a cheap fella, wanted to use that up. :p

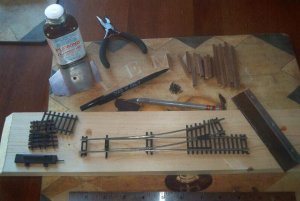

    So, off we go. Here are what I started with; rather than laboriously identify each item, I'll just include what I used in the picture.

    Attached Files:

  2. Lighthorseman

    Lighthorseman Active Member

    Joined:
    Jul 24, 2002
    Messages:
    1,387
    Likes Received:
    0
    ..

    First, I stripped some of the ties from the turnout, keeping some at the end to keep the rail roughly in gauge.

    Attached Files:

  3. Lighthorseman

    Lighthorseman Active Member

    Joined:
    Jul 24, 2002
    Messages:
    1,387
    Likes Received:
    0
    ...

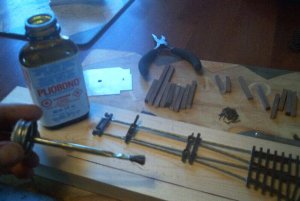

    I flipped the turnout upside-down, and applied "Pliobond" glue to the bottom of the rails, being very careful not to glue the moving rails. (Points? Slidey-things??):confused:

    Attached Files:

  4. Lighthorseman

    Lighthorseman Active Member

    Joined:
    Jul 24, 2002
    Messages:
    1,387
    Likes Received:
    0
    ....

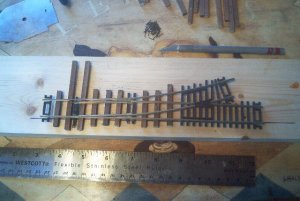

    Back over goes the turnout, and ties are placed underneath. The Pliobond holds them in place, although not too well, but enough to start spiking.

    Attached Files:

  5. Lighthorseman

    Lighthorseman Active Member

    Joined:
    Jul 24, 2002
    Messages:
    1,387
    Likes Received:
    0
    .....

    Now it's time to start spiking. I use a small pair of pliers, although I've heard of spiking tools. (?) While spiking, it's important to keep the rails in gauge. I use the NMRA standards gauge, and for funsies, run a wheelset along the rail.

    Attached Files:

  6. Lighthorseman

    Lighthorseman Active Member

    Joined:
    Jul 24, 2002
    Messages:
    1,387
    Likes Received:
    0

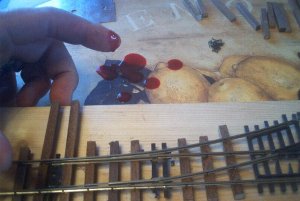

    ......"Ow!"

    Then, it's time to trim around the frog. Remember...X-Acto knives are sharp . Ouch. This is NOT how you stain the ties.;)

    Attached Files:

  7. Lighthorseman

    Lighthorseman Active Member

    Joined:
    Jul 24, 2002
    Messages:
    1,387
    Likes Received:
    0
    .......

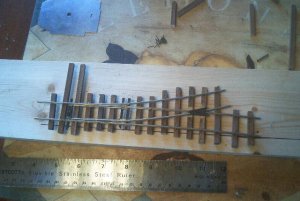

    Sorry 'bout that. :D Now, the frog has been trimmed, and I do not try to file the bottom of the frog down to the level of the rail; rather, I notch the ties under it. Here they are, all fitted in, ready for spiking.

    Attached Files:

  8. Lighthorseman

    Lighthorseman Active Member

    Joined:
    Jul 24, 2002
    Messages:
    1,387
    Likes Received:
    0
    ........

    Well, we're getting there. The last HO ties have been removed, and the new ties spiked down.

    Attached Files:

  9. Lighthorseman

    Lighthorseman Active Member

    Joined:
    Jul 24, 2002
    Messages:
    1,387
    Likes Received:
    0
    .........

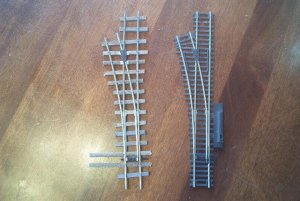

    Here are the before and after turnouts.

    Attached Files:

  10. Lighthorseman

    Lighthorseman Active Member

    Joined:
    Jul 24, 2002
    Messages:
    1,387
    Likes Received:
    0
    ..........

    Now that it's been built at the "workbench" (kitchen table), :D it's time to install the thing on the layout. Here it is, glued down.

    Attached Files:

  11. Lighthorseman

    Lighthorseman Active Member

    Joined:
    Jul 24, 2002
    Messages:
    1,387
    Likes Received:
    0
    ...........

    Oncethe glue had dried, it was time for my favourite part. The test run. Here it is.

    Attached Files:

  12. Lighthorseman

    Lighthorseman Active Member

    Joined:
    Jul 24, 2002
    Messages:
    1,387
    Likes Received:
    0
    Next...

    Once I have ballasted this section, I'll post a follow-up picture.

    I have no idea if this is actually useful, but it was a fun pictorial to put together. :)
  13. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    A great "how-to" Steve.
  14. Lighthorseman

    Lighthorseman Active Member

    Joined:
    Jul 24, 2002
    Messages:
    1,387
    Likes Received:
    0
    Following Up...

    Thanks so much for all the kind words, folks!

    Catt - Go right ahead. I'd be honoured. :oops:

    Shaygetz - That would be some careful work in HOn30. Beyond my fine-motor skills, I suspect! :D

    RailRon - I intend to have a manual under-the-table system involving an inexpensive slide-switch. Will post on this soon.

    Narrowsteam - Here is a link to the thread I posted when looking for switch stands.

    http://www.the-gauge.com/forums/showthread.php?s=&threadid=4377&highlight=switch stand

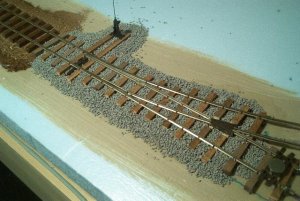

    I have put down some ballast, and here is the result. Next is to scenic around the turnout, paint the rail, and touch up with a little stain here and there.

    Attached Files:

  15. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0
    This thread was moved to the Academy November 2005. Some posts were deleted to provide clarity and continuity the this important thread. It has been locked, so if you have any comments on this thread, please make them in the appropriate forum. Thanks.
