    How about another? My wife and I used to live in this little mountain cabin up in the Ponderosa pines near Prescott, AZ. Boy, I sure miss this place. Anyways, the existing house was just the top half and we were very seriously considering adding on the whole bottom half (hence the plans and elevations).
    [​IMG]

    [​IMG]

    [​IMG]
  2. TrainNut

    TrainNut Ditat Deus

    Joined:
    Sep 15, 2004
    Messages:
    1,810
    Likes Received:
    0
    Since nobody else seems to be participating just yet, I hope you don't mind if I add another. This example was a ranch style house I designed from scratch for our property near Prescott. It never got built.:cry: This one's probably a bit more complicated than what you are looking for.

    [​IMG]

    [​IMG]
  3. Pitchwife

    Pitchwife Dreamer

    Joined:
    Apr 24, 2001
    Messages:
    1,796
    Likes Received:
    0
    Are you looking for detailed interior plans or will exterior plans be sufficient?
  4. Edavillenut

    Edavillenut Member

    Joined:
    Aug 5, 2002
    Messages:
    206
    Likes Received:
    0
    all i really need is the elevations, the spacing of windows and doors the hight and length of walls.
  5. rlundy90

    rlundy90 Member

    Joined:
    Oct 2, 2007
    Messages:
    80
    Likes Received:
    0
    My entry is based on this hotel built in 1897 and destroyed by fire in 1914. It would be nice to bring it back to life. This is the only picture I could find so I had to guess on what the other three sides looked like. I have to post this twice as there are 7 files and only six are allowed. Sorry I couldn't give you CAD drawings but even if I did have the program I wouldn't know how to use it. First the original picture then the drawings on the next post. Thanks, Ron.

    Attached Files:

  6. rlundy90

    rlundy90 Member

    Joined:
    Oct 2, 2007
    Messages:
    80
    Likes Received:
    0

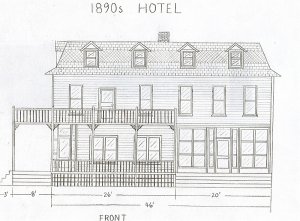

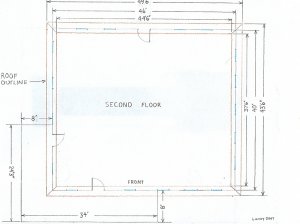

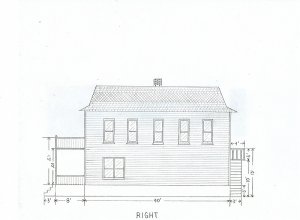

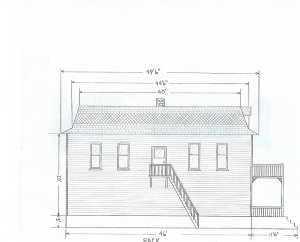

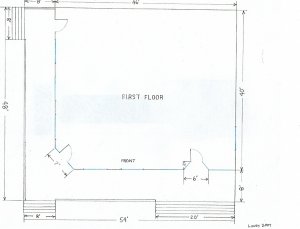

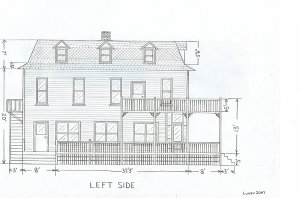

    Here are the drawings for the hotel. Thanks, Ron

    Attached Files:

  7. TrainNut

    TrainNut Ditat Deus

    Joined:
    Sep 15, 2004
    Messages:
    1,810
    Likes Received:
    0
    That is a neat building. Good job on the drawings as well. It's nice to see an entry from somebody other than me.
  8. rlundy90

    rlundy90 Member

    Joined:
    Oct 2, 2007
    Messages:
    80
    Likes Received:
    0
    Thanks TrainNut. Wish I had a CAD program and knew how to use it though. Took me three days to do up those drawings. Hopefully I will have time to do one more.This hotel was from a small town close to where I grew up and have some more neat buildings I would like to model.But figured if the hotel by some miracle wins it would be great as I want to build it for my layout.If it became a kit it would be that much easier.Ron.By the way, really like the feed building.
  9. rlundy90

    rlundy90 Member

    Joined:
    Oct 2, 2007
    Messages:
    80
    Likes Received:
    0

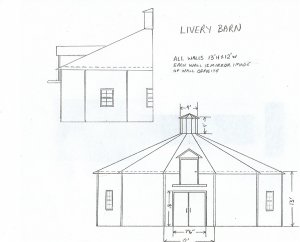

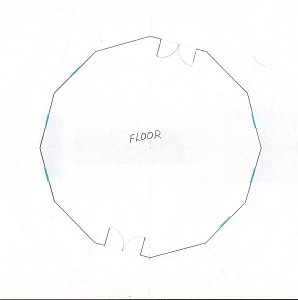

    My second entry is a livery stable that belonged to my Grandfather and Great Grandfather in the 1920s. This is the only known picture of this building. It was originally red with white trim and roof. Ron

    Attached Files:

  10. Gary Pfeil

    Gary Pfeil Active Member

    Joined:
    May 8, 2001
    Messages:
    2,593
    Likes Received:
    0

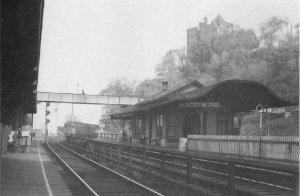

    Just opened this thread for the first time and think it's an awesome idea. I can't provide drawings or even dimensions, nor the other two sides of the building, but post this photo just out of a desire to be able to buy a kit of the structure. The roof line of the shelter over the platform is what gives this station its appeal. Would you be able to duplicate it?

    The station itself seems ordinary and the unseen sides could be made similar to other similar stations.

    In fact, the station could be offered with or without the extended roof over the platform. The station itself seems generic.

    Sorry to post this on a contest thread, I obviously don't intend it as an entry, just a suggestion for a future model to be designed by yourself....unless someone wants to prepare a drawing based on the photo? Heh heh

    Attached Files:

  11. Edavillenut

    Edavillenut Member

    Joined:
    Aug 5, 2002
    Messages:
    206
    Likes Received:
    0
    i can do just about any think i can figure out how to draw.


    right now i am working on some detailed truses for a customer who is building an engine house with full interior. i will post some pics so every one can see what can be done


    keep the drawings and ideas comming
  12. MilesWestern

    MilesWestern Active Member

    Joined:
    Sep 21, 2005
    Messages:
    1,905
    Likes Received:
    0
    Is this structure too complicated? I have the drawings (with measurements) if you'd be willing to tackle this structure. Also, I know quite a few people who have looked to have this kit built.

    [​IMG]
  13. Edavillenut

    Edavillenut Member

    Joined:
    Aug 5, 2002
    Messages:
    206
    Likes Received:
    0
    At this time i can not do brick.

    i am working on finding a material that will work and look good.

    i will keep that building in mind once i figure out how to do brick.

    thanks
    shawn


  14. Pitchwife

    Pitchwife Dreamer

    Joined:
    Apr 24, 2001
    Messages:
    1,796
    Likes Received:
    0
    [​IMG]I'm a month late and more than a dollar short, but I didn't see a winner announced so here is my entry.
    It isn't as classy as Ron's, but if you've ever traveled the country by car you will know it at a glance. It isn't from any prototype, but it could fit on most any layout. I have the specs if you are still interested. Been fighting with my CAD program to get it here (just goes to show how often I use the CAD). :rolleyes:
  15. rlundy90

    rlundy90 Member

    Joined:
    Oct 2, 2007
    Messages:
    80
    Likes Received:
    0
    Edavillenut have you looked at the plastruct #91611 Brick. I have only used it on an old branchline warehouse I bought, but it seems to look ok. Only thing I found is that if you are painting it with acrylics you will have to give it a coat of dullcoat first. Ron.
  16. MilesWestern

    MilesWestern Active Member

    Joined:
    Sep 21, 2005
    Messages:
    1,905
    Likes Received:
    0
    The only problem with sheet brick, Rlundy, is that you cannot make complex "runs" of brick easily, such as the part over the doors, windows, and entryway. Look at the perris Station on this page and all the squirrely directions the bricks go.
  17. rlundy90

    rlundy90 Member

    Joined:
    Oct 2, 2007
    Messages:
    80
    Likes Received:
    0
    Yes I see your point. It takes a real close look to see the details in that picture.Ron
  18. Edavillenut

    Edavillenut Member

    Joined:
    Aug 5, 2002
    Messages:
    206
    Likes Received:
    0
    ok guys, the contest ends tommrow night at midnight.

    keep the drawings coming.

    i will not be able to post a poll for the voteing untill sunday. i will be at a train show saturday.

    shawn
  19. Edavillenut

    Edavillenut Member

    Joined:
    Aug 5, 2002
    Messages:
    206
    Likes Received:
    0
    well everyone the month is over. i will set up a voting poll later today or tommrow.
  20. MadHatter

    MadHatter Charging at full tilt.

    Joined:
    Jan 27, 2007
    Messages:
    1,077
    Likes Received:
    0
    Edavillenut, will you be able to do overseas designs?

    I know it's too late for the competition, but was just wondering.
