Need help wiring turnouts

Discussion in 'DCC & Electronics' started by Mannix, Jul 9, 2006.

  1. Mannix

    Mannix Member

    Joined:
    Apr 10, 2006
    Messages:
    52
    Likes Received:
    0
    I want to use push buttons on a diagram to operate the turnouts that I can't reach, and I will be using a DC transformer to power them. Can someone tell me the steps that I need to take to make this become a reality? My Ho trains are operated with DCC Prodigy Express. Thanks.
  2. cidchase

    cidchase Active Member

    Joined:
    May 15, 2002
    Messages:
    1,640
    Likes Received:
    0
    Hiya Joe(?),

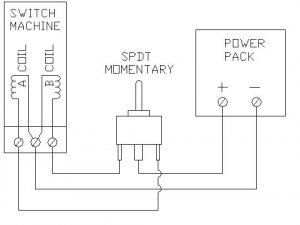

    Here's a basic electrical diagram for the switch machine hookup. If using pushbuttons they just go in place of each side of the toggle switch. Try searching on The Gauge for "control panel", there should be quite a few posts and pictures.:) :)

    Attached Files:

  3. Mannix

    Mannix Member

    Joined:
    Apr 10, 2006
    Messages:
    52
    Likes Received:
    0
    Thanks for the info; I will be doing some test wiring tomorrow, and I need to build a control box.
