My Bridge Project

Discussion in 'Scratchin' & Bashin'' started by Gary S., Mar 7, 2006.

  1. Gary S.

    Gary S. Senior Member

    Joined:
    Oct 13, 2005
    Messages:
    1,694
    Likes Received:
    0

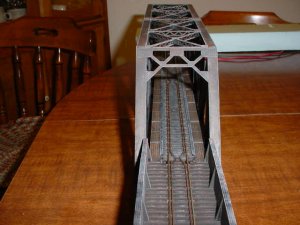

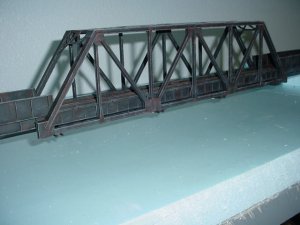

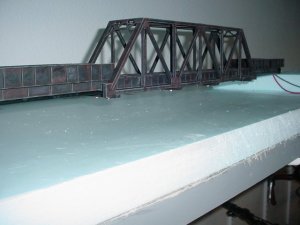

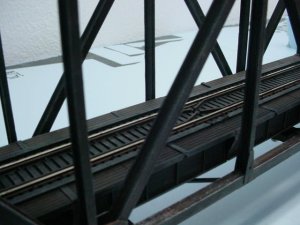

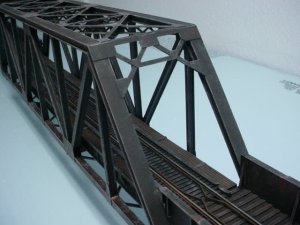

    Here are some pics of a bridge I built over the weekend. It will be used to span across a doorway so it can be removed and stored. The overall length is almost 4 feet, and it has no supports in the middle. I used a piece of "unistrut" which is a piece of steel channel 7/8 inch deep and 1-1/8 inch wide. I used three Atlas girder bridges, the floor sections out of 2 Atlas truss bridges, a Walthers singletrack truss bridge, and various sizes of strip styrene and T-sections. The bridge will fit into some groves at each side.

    I scratchbuilt the girder sections underneath the Girder bridges, the truss attachments under the unistrut channel, and pieces here and there to make it look complete. Then the entire thing got a coat of flat black paint, then weathering with burnt umber and raw sienna for rust, some gray for dust and fading, then drybrushed the whole thing to bring out the details and edges.

    Attached Files:

  2. abutt

    abutt Member

    Joined:
    Jan 11, 2006
    Messages:
    197
    Likes Received:
    0
    If you built that over the weekend, how would you like to lend a hand on My layout for an hour or two?

    Great looking bridge.

    Allan
  3. Gary S.

    Gary S. Senior Member

    Joined:
    Oct 13, 2005
    Messages:
    1,694
    Likes Received:
    0

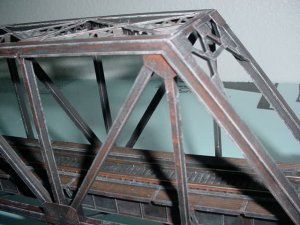

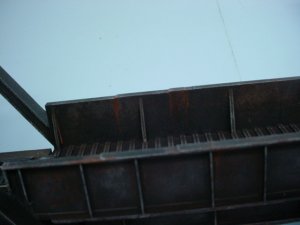

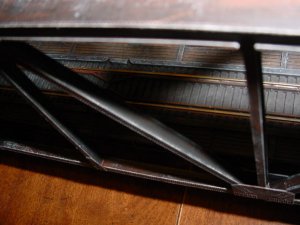

    Here's a few more photos. I was really surprised at the pics with the flash, it REALLY brought out the weathering, I mean the bridge doesn't look anything like that heavily weathered in normal light. I need to take some pics out in the sun I guess.

    What do yall think? Constructive criticism welcomed!

    Attached Files:

  4. Gary S.

    Gary S. Senior Member

    Joined:
    Oct 13, 2005
    Messages:
    1,694
    Likes Received:
    0
    Thanks Allan. "Over the weekend" does not include all the previous time during the week spent plotting. planning, thinking, purchasing, and test fitting. The painting is what took the longest. There were hours and hours of dry-brushing that went into this bridge. Saturday night I didn't go to bed until 4am!
  5. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,347
    Likes Received:
    0
    I think that looks grand Gary! The weathering looks just right to me. A clever solution for a removable bridge!
    Ralph
  6. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0
    Does that run the whole length of the bridge? That's is a great looking piece of work, looks like so many that we have crossing the bayous down here. You need a kid with a cane pole somewhere along that truss bridge.:thumb:
  7. Gary S.

    Gary S. Senior Member

    Joined:
    Oct 13, 2005
    Messages:
    1,694
    Likes Received:
    0

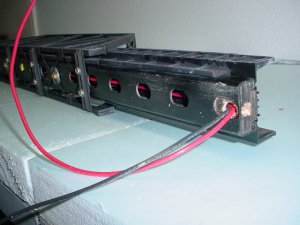

    The unistrut does indeed run the entire length of the bridge. I cut some wood pieces to a very tight fit at each end and hammered them into the unistrut as a solid attachment point for each end of the bridge. Then I drilled a hole in one end for the feeder wires to come out. I will drill a hole down through the abutment and pass the wires through to a terminal block or a plug-in type connection under the layout. The neat thing is, the unistrut channel provided a perfect place to contain the feeder wires.

    Hmm... instead of just passing the wires through to the underside, I wonder if I could fabricate some sort of plug-in connection on the top, some conductive blades under the bridge plug into a female receptacle on top of the abutment? This would save the hassle of terminating the wires every time I use the bridge.

    For the abutments, I am considering making them from wood, then sealing and painting them to look like concrete, or perhaps I should make some forms and pour the abutments out of plaster?

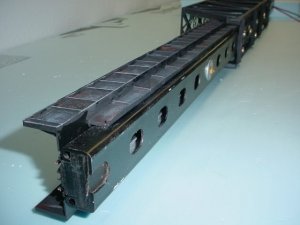

    Here are a couple of pics of the bottom. I need to paint the washers and nuts, and I also need to repaint the strut with flat black, and I wish I would have had smaller machine screws instead of what I used.

    Attached Files:

  8. jim currie

    jim currie Active Member

    Joined:
    Jun 29, 2003
    Messages:
    1,443
    Likes Received:
    0
    neat idea using the unistrut weathering looks good are you in steam if so a touch of soot on the top of the truss would be needed.
  9. Gary S.

    Gary S. Senior Member

    Joined:
    Oct 13, 2005
    Messages:
    1,694
    Likes Received:
    0
    didn't even think about dirtying the top... I won't be running steam, will be doing the 1960's I think, still, wouldn't the diesel exhaust put some sooti-ness up there? Probably not much, and I guess the rain would wash it off and make it run down?
  10. nachoman

    nachoman Guest

    that looks fantastic.

    kevin
  11. RailRon

    RailRon Active Member

    Joined:
    Nov 23, 2002
    Messages:
    1,665
    Likes Received:
    0
    Gary, this is a wonderful bridge model, and the weathering is superb! :thumb:

    I'd like to hear a long freight train rumbling over that bridge...

    Ron
  12. webmaster

    webmaster Member

    Joined:
    Feb 17, 2006
    Messages:
    171
    Likes Received:
    0
    Yup, I'm with Ron, it looks superb!
  13. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Great looking bridge!
  14. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    Very nicely done bridge, Gary!
    :thumb: :thumb: :thumb: :thumb:
  15. Gary S.

    Gary S. Senior Member

    Joined:
    Oct 13, 2005
    Messages:
    1,694
    Likes Received:
    0
    Thanks for the comments, guys. Now the next project is to get the layout design finished so I can actually start laying some track.
  16. Tileguy

    Tileguy Member

    Joined:
    Apr 28, 2003
    Messages:
    810
    Likes Received:
    0
    announce1 Perfect!! :thumb:
  17. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0
    Like everyone else, I think that's really, really good. :thumb::thumb:You asked for criticism, well, I can't think of any, it's that good.:D
  18. Wyomingite

    Wyomingite Member

    Joined:
    Mar 17, 2002
    Messages:
    596
    Likes Received:
    0
    One heck of a job.

    Ron :thumb: :thumb: :thumb: :wave:
  19. MadHatter

    MadHatter Charging at full tilt.

    Joined:
    Jan 27, 2007
    Messages:
    1,077
    Likes Received:
    0
    Gary that looks awesome, I gave a friend of mine a similar idea except he is using an arched bridge in the middle, now I know the idea will work, thanks for posting pics so that we can all see!!
  20. cnw1961

    cnw1961 Member

    Joined:
    Jan 8, 2006
    Messages:
    936
    Likes Received:
    0
    Gary, great idea and very well executed :thumb: :thumb: Criticism? I am trying hard, but you didn’t give us a chance :cry: :cry: :cry: :cry: .
