Magnetic Uncoupling

Discussion in 'FAQs' started by billk, Oct 22, 2001.

  1. billk

    billk Active Member

    Joined:
    Jun 13, 2001
    Messages:
    1,130
    Likes Received:
    0
    Here's a brainstorm I'd like to toss out for discussion - has anyone ever tried mounting a magnet on some kind of stick to use for uncoupling? It (the magnet and the stick) would have to be skinny enough to fit between the cars and get near the couplers, obviously.
    BillK
    PS - Once I worked on a project where we had brainstorming sessions scheduled on a regular basis. One of the rules for these sessions was that every idea was discussed, no matter how "dumb" -- we found that some of our best solutions came out of discussions of the dumbest ideas!
  2. yellowlynn

    yellowlynn Member

    Joined:
    Jul 8, 2001
    Messages:
    760
    Likes Received:
    0
    magnets

    I've got exactly what you described. It is shaped like h , with magnets on the 2 bottom legs, pulling the metal parts of the couplers apart. I don't know if mine is homemade or commercial. I got it in a box of stuff. It does work good.

    Lynn
  3. shamus

    shamus Registered Member

    Joined:
    Dec 17, 2000
    Messages:
    3,521
    Likes Received:
    0
    You can buy the "h" type for un-coupling.
    shamus
    [​IMG]
  4. billk

    billk Active Member

    Joined:
    Jun 13, 2001
    Messages:
    1,130
    Likes Received:
    0
    Does anyone know who makes/sells these "H"-uncouplers? Or can someone post enough details so that I could make one myself? )For N-scale)
    Thnx
    Bill K
  5. yellowlynn

    yellowlynn Member

    Joined:
    Jul 8, 2001
    Messages:
    760
    Likes Received:
    0
    I think you should be able to buy them at most hobby shops, but I don't know. It doesn't have to be an h. A piece of wood thin enough to slide down between the cars. Cut a slot in one end, wide enough amd deep enough to fit over the couplers. Small , or tiny magnets are glued to the inside of the legs. That is what uncouples, or pulls the couplers apart. If you have two magnets thin enough, hold them ,one pon each side and bring them in toward the couplers and you'll see the couplers pull apart. You'll then understand how to make one, very simple. I'm not the best at explaining, but I hope this helps. I think refrigerator magnets are strong enough.

    Lynn
  6. Gary Pfeil

    Gary Pfeil Active Member

    Joined:
    May 8, 2001
    Messages:
    2,531
    Likes Received:
    0
    I think (but am not sure) the commercially available ones are made by Rix products.

    Gary
  7. Peirce

    Peirce Member

    Joined:
    Dec 29, 2000
    Messages:
    182
    Likes Received:
    0
    Gary, I believe you are right. Rix does make one. I have one for HO. I don't know if it will work on N, or if they make a smaller one. I picked mine up at my favorite model RR store.
  8. shamus

    shamus Registered Member

    Joined:
    Dec 17, 2000
    Messages:
    3,521
    Likes Received:
    0

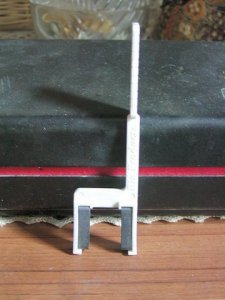

    Here it is
    shamus
    [​IMG]

    Attached Files:

    • h.jpg
      File size:
      35 KB
      Views:
      114
