looking for pics of ww2 german rail gun

Discussion in 'Scratchin' & Bashin'' started by scoobyloven, Apr 4, 2003.

  1. scoobyloven

    scoobyloven Member

    Joined:
    Jan 13, 2002
    Messages:
    317
    Likes Received:
    0
    i been looking for pic on the german rail gun to scratch build i want to do it in both ho scale and in n scale the one i want to do is big butha the biggest gun rail gun in world war 2 i found one in walther but it is way to short i have some pics of the one i want to do but they are taken after we blow it up if anyone can halp with pics of this on or any other it would be helpful

    the name of the gun i want to do is the (dora) it was the biggest one of them all
  2. scoobyloven

    scoobyloven Member

    Joined:
    Jan 13, 2002
    Messages:
    317
    Likes Received:
    0
    here is one of the photo i have

    Attached Files:

  3. RailRon

    RailRon Active Member

    Joined:
    Nov 23, 2002
    Messages:
    1,665
    Likes Received:
    0
    Hi Scooby,

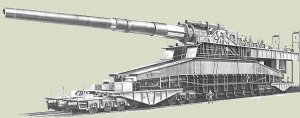

    here's a pic of the Dora. With this gun you have quite a project at hand!

    A few technical data:
    Caliber of the gun: 80 cm (31.5"), barrel length 32 m (106 ft), weight of the barrel alone greater than 400 tons. In her career 'Dora' only fired 48 shots!
    Weight of the whole gun with carriage: 1350 tons! :eek: And the carriage ran (ran??? crept!!) on 40 axles, running on two RR tracks side by side. The crew for this gun alone: 4000 men! :eek: :eek: :eek:

    BTW, there is a book "German Railroad Guns in Action" by Squadron/Signal Publications.

    Didn't find a plan somewhere for the moment. If I do, I'll be back. Now keep us posted about the progress of your BIG project - it's about 12" long in N scale!

    Ron

    Attached Files:

    • dora.jpg
      File size:
      41.6 KB
      Views:
      302
  4. RailRon

    RailRon Active Member

    Joined:
    Nov 23, 2002
    Messages:
    1,665
    Likes Received:
    0

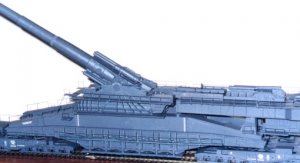

    Just found out that a manufacturer 'FCM' in Germany (I guess) makes a resin/aluminum kit in H0. See picture below. However - it costs around $500 (wihout P&P) :(

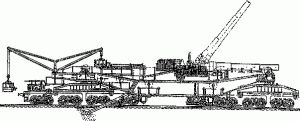

    Here are a few more pics of the gun. The captions are in German, but the pics are self-explaining.

    Ron

    Attached Files:

  5. scoobyloven

    scoobyloven Member

    Joined:
    Jan 13, 2002
    Messages:
    317
    Likes Received:
    0
    thanks for some of the pics guys i know i have a big task on hand but i think when it is all done and i get it how i want it. it would make a good talk peace on the layout or in the train room i went out to day and got the axels i needed for this and also got brass tubing and styrene i spent about 150.00 on what i hope would do it in n scale i was hopeing that i could get a side view of it and the total lenght and hight.i found some pics on the net but they all show it in the wrong way


    ron on that ho scale kit is their a web site for the company or do they have any more pics of it
  6. RailRon

    RailRon Active Member

    Joined:
    Nov 23, 2002
    Messages:
    1,665
    Likes Received:
    0
    There is a website of FCM (I guess that it is the manufacturer, found it per Google), but it's offline at the moment - got no connection. :confused:
    The site must be in German, however.

    Hope this helps

    Ron
  7. scoobyloven

    scoobyloven Member

    Joined:
    Jan 13, 2002
    Messages:
    317
    Likes Received:
    0
    ron i got on the site and that kit goes for 534.92 in us funds that is out of my budget for this project i have 50% of what i need in n scale and all i need now is a good side view
  8. acsxfan1

    acsxfan1 New Member

    Joined:
    May 26, 2003
    Messages:
    16
    Likes Received:
    0
  9. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    Looks like something absnut would build :D

    Nice pics Ron, that you in front of hte first? :D

    http://www.geocities.com/CapeCanaveral/Lab/1167/edora.html

    Welcome to the-gauge acsxfan1!

    Been there on business, didn't drink the water. Spooky place if you have any fear of chemicals. I did some work there in the building where they gave the GI's LSD during the Vietnam war.
  10. acsxfan1

    acsxfan1 New Member

    Joined:
    May 26, 2003
    Messages:
    16
    Likes Received:
    0
    Thanks .. have been registered for quite some time .. but only lurking ..
