Lehigh & New England Fantasy (Locomotive)

Discussion in 'HO Scale Model Trains' started by TomPM, Mar 26, 2005.

  1. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    In my little model railroad world the Lehigh & New England Railroad did not go out of business in 1962. It became part of the Ridley Keystone & Mountain Railroad Companies. The prototype LNE only had ALCO FA1, FB1, RS-2, and S-2 diesels.

    One thing I always wanted to do was modernize the LNE fleet some. So I came across the idea of doing a fantasy scheme for a later diesel model.

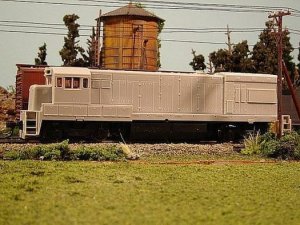

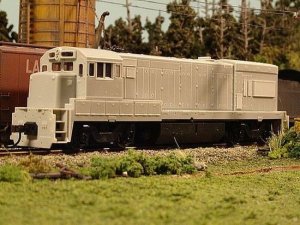

    Keeping with the theme that the LNE would not have a large fleet I felt this would be easy. Since the LNE was all ALCO I figured that their original ALCOs would be replaced by other ALCOs such as Century models and when ALCO went out of business that LNE would go with ALCO’s “successor”, GE. Therefore I was able to locate an undecorated Atlas U23B for my project.

    Attached Files:

  2. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0

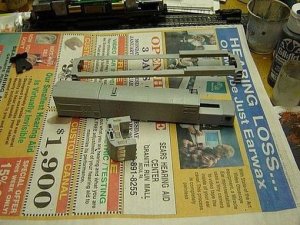

    First I disassembled the shell and removed it form the frame for painting.

    Attached Files:

  3. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0

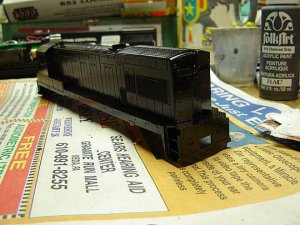

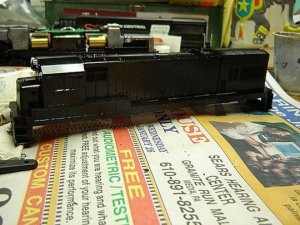

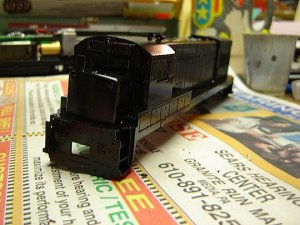

    I airbrushed the shell with Folk Art Licorice. I then sealed it will Glosscoat.

    Attached Files:

  4. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0

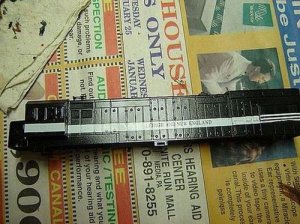

    Then I began decaling the locomotive as seen in this progress shot.

    Attached Files:

  5. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    The decals are used were from Microscale. They are the Lehigh & New England Diesels set. After applying the decals I sealed it with Glosscoat. Once the gloss coat was dry I hit with Dullcoat. I reassembled the locomotive. Next I installed the grabirons and handrails.

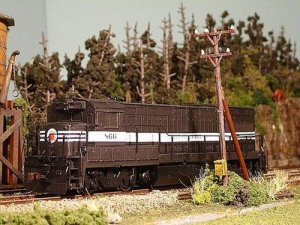

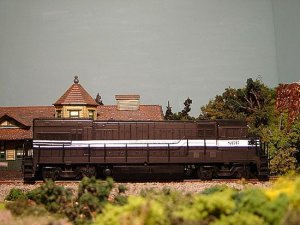

    In the next set of pictures the windows are still masked because I will be weathering the locomotive. Also I need to install the couplers.

    Attached Files:

  6. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0

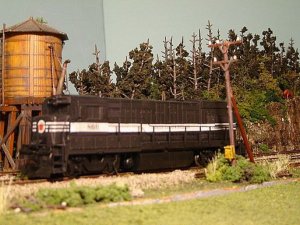

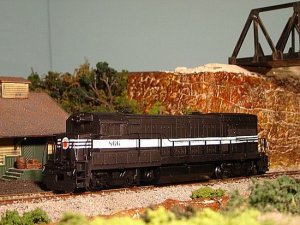

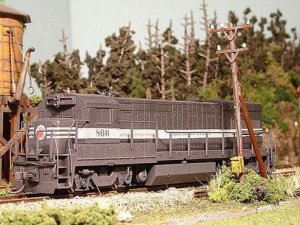

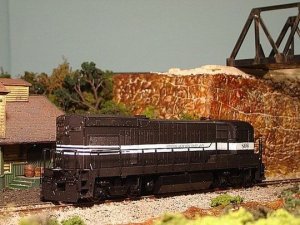

    And a couple more shots.

    Attached Files:

  7. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    Nice scheme! I like it! Very neat paint work too!
    Ralph
  8. NYC-BKO

    NYC-BKO Member

    Joined:
    Jun 6, 2004
    Messages:
    512
    Likes Received:
    0
    Kewl!!

    Very nice, Tom-:thumb: :thumb: :thumb: :thumb: :thumb:
  9. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0
    Excellent work Tom!
    Nothing like a "fantasy" paint theme.
  10. brakie

    brakie Active Member

    Joined:
    Nov 8, 2001
    Messages:
    2,949
    Likes Received:
    0
    Tom,Great looking locomotive.. :thumb:
  11. Chessie6459

    Chessie6459 Gauge Oldtimer

    Joined:
    Aug 4, 2003
    Messages:
    2,978
    Likes Received:
    0
    Very Cool Addition to the Roster Tom :thumb: :thumb: :thumb:
  12. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Good paint job Tom. That sure looks like a heavy hauler.
  13. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Thanks everyone!

    So now it time to weather the LNE U23B.

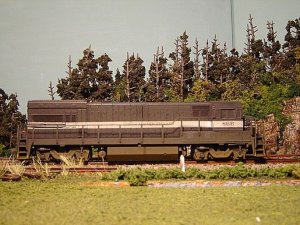

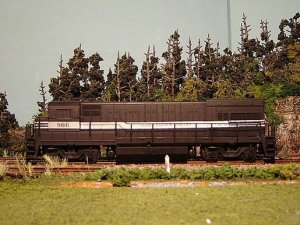

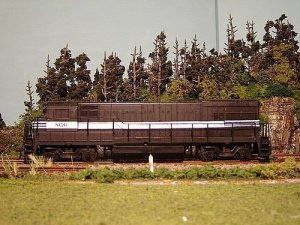

    Start out with the unweathered version.

    Attached Files:

  14. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0

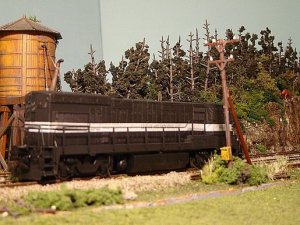

    First I gave the locomotive an overspray of Folk Art Licorice (1 part paint: 1 part blue windshield washer fluid) with the airbrush. I apply the paint from a distance to get a light touch. This deadens the bright white and lettering.

    Attached Files:

  15. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0

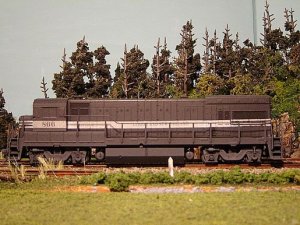

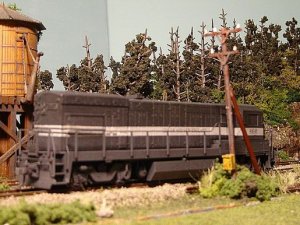

    Next I hit it with an overspray of Folk Art Charcoal Black (1 part paint: 1 part blue windshield washer fluid) with the airbrush. I concentrate the paint on the trucks and lower portion of the locomotive.

    Attached Files:

  16. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0

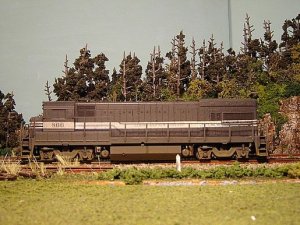

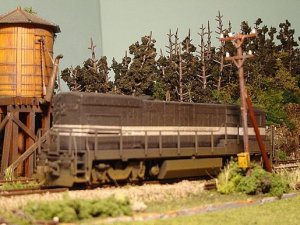

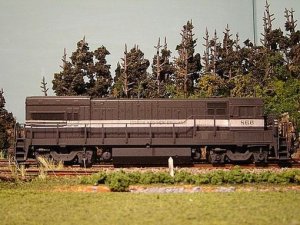

    Lastly I apply a spray of Folk Art Raw Sienna (1 part paint: 1 part blue windshield washer fluid) with the airbrush. For this application I only do the trucks and lower portion of the locomotive. I actually spray the paint into the paper that I have covering the surface that the locomotive sits on. This way the paint bounces up on to the locomotive.

    Attached Files:

  17. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0

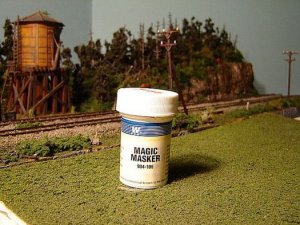

    I used Walthers Magic Masker to cover the windows prior to beginning the painting.

    I had some difficulty getting the masking off. This was the first time I had ever used it. Once I was able to grasp a little bit of it, it was easy to pull off. I did have some touch ups to do around the windows.

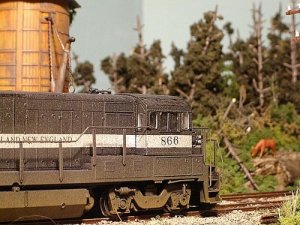

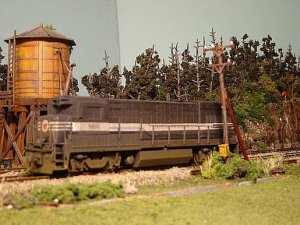

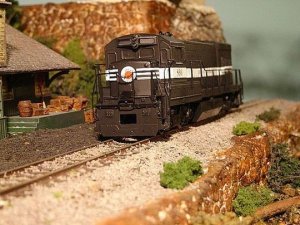

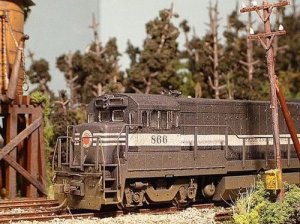

    Here it with the windows unmasked.

    Attached Files:

  18. Chessie6459

    Chessie6459 Gauge Oldtimer

    Joined:
    Aug 4, 2003
    Messages:
    2,978
    Likes Received:
    0
    Glad to see the U-Boat all weathered and ready to operate. Great Job :thumb: :thumb: :thumb:
  19. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    Oh yeah!!!!! That U boat looks like its done some work now! Nice Tom!
    Ralph
  20. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Thanks everyone for the compliments!

    Leigh & New England U23B number 866 is about to get a partner.

    Another undecorated U23B has emerged from the paint shop and is currently being decaled. One side of the locomotive has been completed and the second side should be done shortly.

    Pictures coming!
