Layout Plan 1,000,001

Discussion in 'Track Planning' started by rich maiorano, Oct 12, 2003.

  1. rich maiorano

    rich maiorano Member

    Joined:
    Apr 27, 2002
    Messages:
    644
    Likes Received:
    0

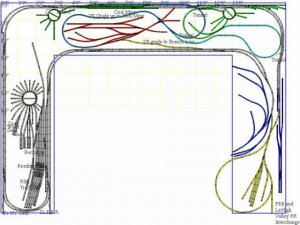

    well with a lot of help from RTS Expert SS he came up with this for me and any more ideas you can come up with and a few changes I have in mind maybe I can get this one to work for me:eek: :eek: :eek: Rich


    opps forgot the pic
  2. rich maiorano

    rich maiorano Member

    Joined:
    Apr 27, 2002
    Messages:
    644
    Likes Received:
    0
    Here it is I hope

    Attached Files:

  3. belg

    belg Member

    Joined:
    Apr 29, 2001
    Messages:
    900
    Likes Received:
    0
    Rich I think that you had better start building that monster of a layout and let your brain rest a little. There seems to be plenty of opportunity to do all kinds of switching and running so it's time to get to it. You can always make some last minute changes as you go along. GOOOD LUCK
  4. Topo

    Topo Member

    Joined:
    Mar 25, 2002
    Messages:
    416
    Likes Received:
    0
    My God!!

    Rich, I'm tired only to imagine the WORK of building that enormous layout!! :eek:

    In the other side, you will have fun for years... ;) :p

    Ahhh, You made me jealous. If only I had ½ of this space to expand my layout... But... wait a minute... I NOT EVEN have started to build mine!!! :eek: :rolleyes: :eek:
    (Boy, my natural laziness is hitting hard on me. I need a beer...) ;)
  5. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    N scale, right Rich? It looks like the benchwork is just a little more than 2 feet deep so access doesn't look like a problem. Lots of action and operating possibilties, THREE turntables! Cool! Time to start buying lumber! :D
    Ralph
  6. brakie

    brakie Active Member

    Joined:
    Nov 8, 2001
    Messages:
    2,949
    Likes Received:
    0
    Ok,Ralph you heard one side of the coin now I will let you see the flip side.:D

    If I was building that layout first thing I would do is ditch the track work in the middle or redo it(sorry SS) as it looks like a dump bowl of spaghetti and makes the layout look dumpy.:(
    Outside of that it is a nice looking layout over all.:D

    See Ralph,I wasn't to harsh in showing you the flip side of the coin.:D
  7. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    No problem with me Brakie, let's see what Rich thinks! :)
    Ralph
  8. brakie

    brakie Active Member

    Joined:
    Nov 8, 2001
    Messages:
    2,949
    Likes Received:
    0
    Oops! I meant Rich..(BIG BLUSH) :eek:
  9. rich maiorano

    rich maiorano Member

    Joined:
    Apr 27, 2002
    Messages:
    644
    Likes Received:
    0
    the bench work is up and already have some of the track just have to move it a little and going to lose that reverse loop if I can too
    :D :D :D :D :D :D :D Rich
  10. Russ Bellinis

    Russ Bellinis Active Member

    Joined:
    Feb 14, 2003
    Messages:
    4,707
    Likes Received:
    0
    I just saw it this morning and didn't have time to post then. Question #1, what is the point of a "balloon track" going from one leg of the turntable to another leg of the same turntable?
    My other comment concerns the track work at the top of the grade to the coal mine. I think you can simplify that track quite a bit. How many coal mines are you serving up there? Since it is a branch line, you can use the branch and a double ended siding one train long as a run around, you might want to make it a double runaround with a second siding at the same place for holding loads you've pulled out while switching in empties. Then put a ladder under the tipple to move empties in and loads out. If you are servicing more than one mine, you could still get by with one run around track and put in a second ladder to the second tipple. A ladder track system consisting of three tracks capable of holding 5-6 cars each for loading under the tipple will make a train 15-18 cars long. Two such ladders will yield a train of 30-34 cars. That is a lot of operation, especially if you are bringing up an empty train, spotting the cars as you pull the loads out for a loaded train going back down grade.
  11. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    Looks like you have a nice double loop going almost all the way around. Why not remove the yellow reverse loop (lower right) and trun around the double main at that end too? Thataway yus cans runs trains till yer blue in the face without touching a single knob :D :D :D Apprears that is not the priority, but it seems easy to do and can come in handy, like if you wnat trains running while you work on something, or you have a youngster running the throttle. Just a thot :)

    I'm buyin' stock in atlas, cuz when Rich buys all that track, their stock price is goin' up! My personal preference would be to thin out the track and have more scenery, but I'm not going to suggest that, because I'm hoping to get rich, erm, uh, sorry, Rich, uh, wealthy off this stock deal :D :D :D
  12. screwysquirrel

    screwysquirrel Member

    Joined:
    Jun 30, 2003
    Messages:
    711
    Likes Received:
    0
    As the designer, I think I'll speak up a little

    Brakie said:
    the 'Spaghetti bowl' is because Rich asked for a 'meandering branchline' thus all the rolling around.

    Russ Said:
    Ok, there are 2 mines: the Coal mine in the top center, which has 3 storage tracks all linked to the engine turntable, for a turnaround.

    the other mine is an Iron mine, which has the 'parking space' like storage track where you assemble a train' the baloon track allows you to build a train, serve the mining camp siding, and run an engine around to the back of a train to park empty cars. It also means operations at the Iron mine and the Coal Mine look different.


    As for changing the reverse loop and keeping it double track, that should be done easily enough with a number of crossovers. I'll make some changes and get back to rich on it
  13. screwysquirrel

    screwysquirrel Member

    Joined:
    Jun 30, 2003
    Messages:
    711
    Likes Received:
    0

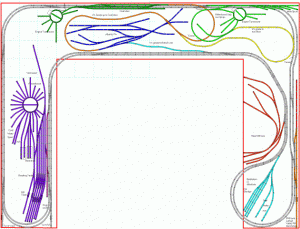

    Some changes

    This shows the changes I just made to the trackplan... the reverse loop is now a simple 19" radius curve turnaround (the outer loop uses several short straights around the turn).


    the yard space is now purple, with the A/D track a different shade

    Attached Files:

  14. rich maiorano

    rich maiorano Member

    Joined:
    Apr 27, 2002
    Messages:
    644
    Likes Received:
    0
    as you can see that was one of my ideas Jon got to let the kids run it sometimes and sometime i just like watching too and as for the bowl of spaghetti theres room to play there too got to get the main down first and thanks SS for the redo there too:D :D :D :D :D :D :D :D :D Rich
  15. Hoss

    Hoss Member

    Joined:
    Nov 10, 2003
    Messages:
    194
    Likes Received:
    0
    It's a bit overwhelming to me....but I'm sure it would be awesome to operate.

    One question on the yard....it looks like there is only one track going into the purple yard...and it's in the middle of the yard instead of the end. Is that one track the only way in an out? Seems like it would make more sense to have a turnout going into the yard on each end instead of one in the middle....the trains could enter the yard from either direction.

    On edit...looks like this hasn't been posted on for almost a month. Didn't mean to bring up a dead thread. :(
  16. screwysquirrel

    screwysquirrel Member

    Joined:
    Jun 30, 2003
    Messages:
    711
    Likes Received:
    0
    re: the yard

    the yard works this way: theres the double main which connects to an arrival/departure track. the yard connects to that by a single turnout, because the a/d track is where you build or tear down the train. the A/D track also connects with the engine storage area, to attach the road engine after the train is built
  17. Hoss

    Hoss Member

    Joined:
    Nov 10, 2003
    Messages:
    194
    Likes Received:
    0
    I see. Is that a prototypical practice (or WAS it)?? I ask because I don't know. Doesn't matter I suppose...it just seems to me that it makes it a little harder to get to the yard. I do like the track plan though. :)
  18. screwysquirrel

    screwysquirrel Member

    Joined:
    Jun 30, 2003
    Messages:
    711
    Likes Received:
    0
    pROTOTYPICAL

    yes it was pretty much prototypical practice
  19. Hoss

    Hoss Member

    Joined:
    Nov 10, 2003
    Messages:
    194
    Likes Received:
    0
    Cool. Learn something new every day. :)
