Kato Unitrack Truss Bridge Bash

Discussion in 'N / Z Scale Model Trains' started by enwhycentral, Aug 17, 2009.

  1. enwhycentral

    enwhycentral New Member

    Joined:
    Dec 9, 2007
    Messages:
    2
    Likes Received:
    0
    A long time ago (7 years or so) a member of this forum named UPGuy posted on this forum a short explanation of how he went about shortening a Kato Unitrack truss bridge. I am about to attempt the same thing with a double track version and wonder if anyone can provide me with any more details about the procedure and what pitfalls to avoid. I am particularly interested in how to deal with the end sections of the bridge where the rails pass through the section just before where the Unijoiners are attached. Any help you can provide would be greatly appreciated.

    Larry Weinberg
    enwhycentral @optonline.net
  2. TrainGuyRom

    TrainGuyRom Member

    Joined:
    Apr 28, 2008
    Messages:
    79
    Likes Received:
    0
    I do not know much about that track, but I think your best option or shortening the bridge it to cut a section out of the center of the bridge, put normal rail joiners to connect the to pieces & glue(with plastic glue) the deck & truss together.

    as I said I do not know much about Kato Unitrak, so don't take what I am saying as gospel.

    hope I helped
    TGR
  3. upguy

    upguy Oregon Western Lines, CEO

    Joined:
    Jan 27, 2001
    Messages:
    465
    Likes Received:
    0
    I haven't looked in on The Gauge for a long time, but today I decided to do a little more work on the scenery surrounding the modified Kato bridge that is mentioned in this thread. This is a picture of the bridge as it was when I finished today.

    Attached Files:

  4. Denyons

    Denyons Member

    Joined:
    Nov 3, 2006
    Messages:
    102
    Likes Received:
    0
    Kato Unitrack Bridge

    Re. shortening a Kato Unitrack truss bridge.
    Larry Weinberg

    Not sure about shotening the bridge but on my layout I believe that I just pulled off the Unitrack clips and installed it with the usual rail joiners.
    Denyons

    Attached Files:

  5. enwhycentral

    enwhycentral New Member

    Joined:
    Dec 9, 2007
    Messages:
    2
    Likes Received:
    0

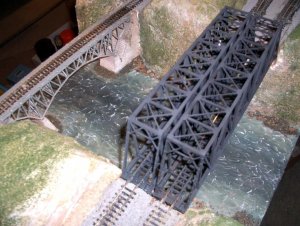

    Kato Bridge Bash Redux

    UPGUY,
    Your bridges looked great 8+ years ago and they still do! Your post brightened up my day considerably, since I thought I was the only laggard when it came to finishing projects. My own Kato bridge bash, which I started about 2 years ago hasn't been worked on for well over a year. It's still only about 75% complete and still needs cables, sheaves, walkways, a bridge tender's structure and painting and detailing. The bridge was scratch built from basswood and styrene upon 3 double track Kato truss bridge decks. I decided not to use any of the other structural components of the bridge as I custom designed the truss.
    ENWHYCENTRAL

    Attached Files:

  6. upguy

    upguy Oregon Western Lines, CEO

    Joined:
    Jan 27, 2001
    Messages:
    465
    Likes Received:
    0

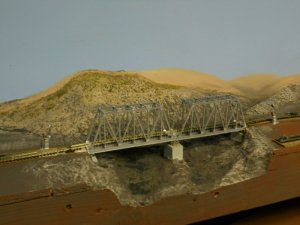

    This is the look of the bridge area as it was left over the weekend. Tuesday, I expect to give it another coat of paint and maybe try to work the mountains into the layout background. I should have taken some picture of the area so I would have a "real life" look to the background. Instead, I'll just paint some hills and hope that my memory of the area is good enough...(that's a really huge expectation).

    Attached Files:

  7. Denyons

    Denyons Member

    Joined:
    Nov 3, 2006
    Messages:
    102
    Likes Received:
    0
    That is a beautiful job you did. I wouldn't think that the deck will be movable and operational, or I am wrong?
  8. upguy

    upguy Oregon Western Lines, CEO

    Joined:
    Jan 27, 2001
    Messages:
    465
    Likes Received:
    0

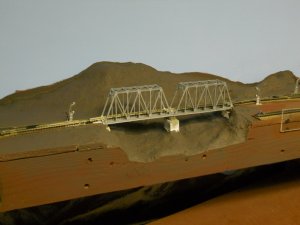

    My project is more about the scenery around the bridge, but I'll post it anyway just in case someone is interested.

    Attached Files:

  9. Boiler-man

    Boiler-man New Member

    Joined:
    Jan 7, 2011
    Messages:
    8
    Likes Received:
    0
    Looking good!!!
  10. upguy

    upguy Oregon Western Lines, CEO

    Joined:
    Jan 27, 2001
    Messages:
    465
    Likes Received:
    0

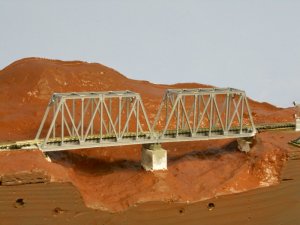

    Sorry the picture didn't come out as sharp as it should have, but here is another update on the bridge project....

    Attached Files:

  11. ufhc

    ufhc ufhc

    Joined:
    Mar 16, 2011
    Messages:
    10
    Likes Received:
    0
    These are really nice bridge models.
