    Kaslo Shops Products F59PH Metrolink

    Hi everybody,

    was thinking about buying a shell kit from Kaslo Shops. I bought a F59PH Shell kit, exclusively ditributed by George's Trains of Toronto. I'm more a passenger guy and wanted to build a F59PH in Metrolink colours. It's different to the Go Transit loco, but I'm not a rivet counter. After weeks (actually 8) of waiting, I got it on my desk. The kit had to wait 7 weeks in customs warehouse somewher in Germany before they let it pass! Every hint or tip is still welcome.Also any additional information on the prototype will be welcome.

    Thank you in advance,

    Tobias
    :thumb:

    BTW: Anybody out there who know how to model Nippon-Sharyo gallery cars:wave:
  2. davidmbedard

    davidmbedard Member

    Joined:
    May 20, 2003
    Messages:
    141
    Likes Received:
    0
    You will find that the Kaslo products go together without any fuss....top notch products.

    David
  3. davidmbedard

    davidmbedard Member

    Joined:
    May 20, 2003
    Messages:
    141
    Likes Received:
    0
    You will find that the Kaslo products go together without any fuss....top notch products.

    David
  4. caliban

    caliban Member

    Joined:
    May 3, 2006
    Messages:
    145
    Likes Received:
    0
    Hi David,

    thanks for your post. I've already ordered a shell from george's trains in Toronto. Now I've to wait. Will post a kind of short review on this thread when I have the shell in my hands.

    Tobias
  5. Russ Bellinis

    Russ Bellinis Active Member

    Joined:
    Feb 14, 2003
    Messages:
    4,707
    Likes Received:
    0
    Just curious, by "Metrolink" are you going to model the commuter trains operating here in the Los Angeles area?
  6. caliban

    caliban Member

    Joined:
    May 3, 2006
    Messages:
    145
    Likes Received:
    0
    Actually a little bit farther north, the Bay Area. But I like the look of the F59PH and Metrolink. I've a Metrolink Bombardier cabcar and a complete Caltrain set including custom F40PH. I'm right back from the basement, where I had painted a Gallery car to match the MDTX cars that were on lease to caltrain a few years ago.

    Tobias
  7. caliban

    caliban Member

    Joined:
    May 3, 2006
    Messages:
    145
    Likes Received:
    0

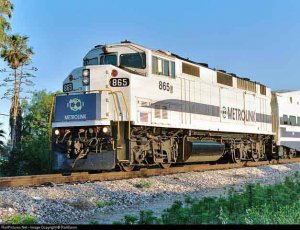

    Image of the prototype, found on RailPictures.net

    Tobias :wave:

    Attached Files:

  8. caliban

    caliban Member

    Joined:
    May 3, 2006
    Messages:
    145
    Likes Received:
    0
    Unbelievable!!

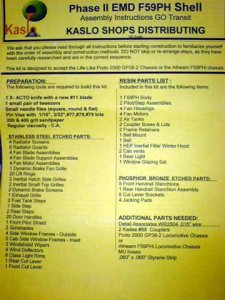

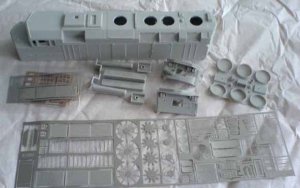

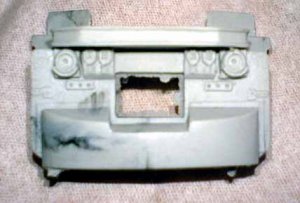

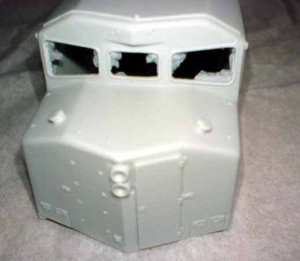

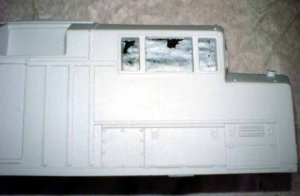

    Here's a first overview, right after opening the box.
    You get a lot of foto etched parts and high quality resin. What you don't get: locomotive chassis, MU hoses, front/rear handrails and the longer grabs for the doors.
    It'll take the some time to finish this kit and I still have no chassis.

    Tobias

    Attached Files:

  9. caliban

    caliban Member

    Joined:
    May 3, 2006
    Messages:
    145
    Likes Received:
    0

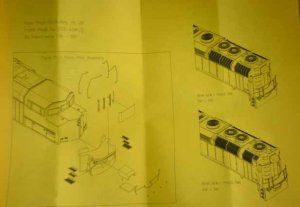

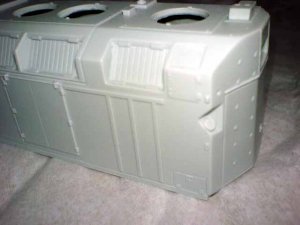

    And a few more...

    Attached Files:

  10. caliban

    caliban Member

    Joined:
    May 3, 2006
    Messages:
    145
    Likes Received:
    0
    What is the correct blue for Metrolink? It looks a bit like Conrail blue on fotos.
  11. dsfraser

    dsfraser Member

    Joined:
    May 13, 2004
    Messages:
    73
    Likes Received:
    0
    You will find the F59PH is pretty good. There is some effort required in bending the handrails and grabs, but the shell is accurate. I know this because I did the drawings for the instructions, looked through over 250 photos of GO Train and Metrolink units, measured the test castings with digital calipers, and critically compared the model with photos. I did find errors, but to their credit, the errors in the original castins that I found were promptly corrected by John, at considerable cost to Kaslo. The versions released have completely new shells and new frets, and are are as good as they can be given the state of the art with resin shells. Buy with confidence, but beware that as with any resin kit, modelling skills are required.

    Cheers
    Scott Fraser
    Calgary, Alberta
  12. Russ Bellinis

    Russ Bellinis Active Member

    Joined:
    Feb 14, 2003
    Messages:
    4,707
    Likes Received:
    0
    I'm not familier with the Northern California Metrolink, but if you send Miles Western a p.m., he could probably help you out. He lives in the San Francisco Bay area.
  13. caliban

    caliban Member

    Joined:
    May 3, 2006
    Messages:
    145
    Likes Received:
    0
    Hi all,

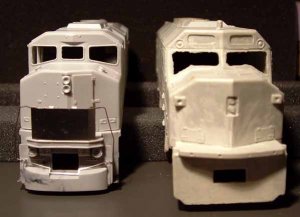

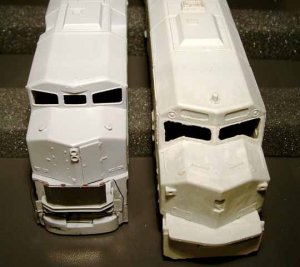

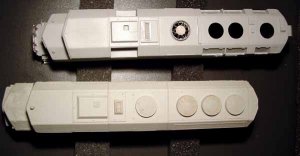

    Here're some photos of the Kaslo Shell with the first parts glued on. Next to the Kaslo F59PH shell is IHP's F40PHL shell. The IHP shell is right out of the box and not cleaned. I'm still unsure about the blue on the Metrolink engines, anybody from the L.A. region out there who could give a hint on the paint?

    Attached Files:

  14. caliban

    caliban Member

    Joined:
    May 3, 2006
    Messages:
    145
    Likes Received:
    0
    Hi,

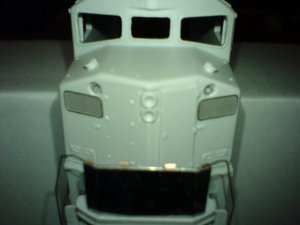

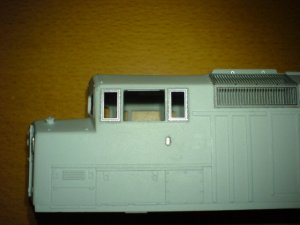

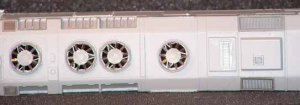

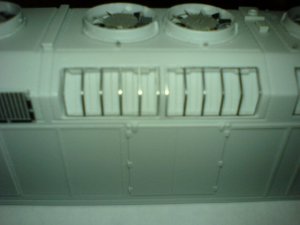

    made a little progress on the F59PH. There are some differences between the GO Transit and the Metrolink engines. I need to figure out were the bell and the horn is located on the Metrolink F59PH, couldn't find a top view pic in the web.
    announce1 ANY HELP IS WELCOME!!!

    Attached Files:

    • ph1.jpg
      File size:
      35.6 KB
      Views:
      200
    • ph2.jpg
      File size:
      31.7 KB
      Views:
      193
    • ph3.jpg
      File size:
      34.5 KB
      Views:
      166
    • ph4.jpg
      File size:
      34.4 KB
      Views:
      194
    • ph5.jpg
      File size:
      34.2 KB
      Views:
      167
  15. caliban

    caliban Member

    Joined:
    May 3, 2006
    Messages:
    145
    Likes Received:
    0
    Scott,

    you're so right. It's more than pretty good, the datailling is awesome! Nonetheless I found some parts to change or to add for the Metrolink loco. And questions, the exact location of the horn, ...
  16. TruckLover

    TruckLover Mack CH613 & 53' Trailer

    Joined:
    Apr 15, 2006
    Messages:
    4,352
    Likes Received:
    0
    There looking great Tobias :thumb: :thumb:
  17. p32acdm

    p32acdm New Member

    Joined:
    Aug 30, 2006
    Messages:
    2
    Likes Received:
    0
    F59PH details

    Tobias, I'm seriously thlinking about purchasing one of those Kaslo shells. Did you purchase the PH I or II version? As far as some of your questions, I checked the Valhalla Videos VHS tape on Metrolink from 1998, and they state the blue color Metrolink uses is "Periwinkle Blue". I have no idea what FS number that would translate to! In regards to the horns on F59PH's, I'm guessing they may be behind the pilot or in another concealed location, as photos I have of # 861's roof and carbody top taken at Fullerton, CA (unfortunately too large to post here) show no horns visible anywhere on the top of the unit.

    Mike
  18. caliban

    caliban Member

    Joined:
    May 3, 2006
    Messages:
    145
    Likes Received:
    0
    Hi Mike,

    Thanks for the info! I found a few pic's in the internet showing a horn behind the dynamic brake fan. Would you e-mail me the your pics? To answer your question, parts for both are includeed in the kit!!! The main difference is the rearmost screen, for phase one you have to cut some material away. As far as I could figure out from the pics, most Metrolink F59PH are Phase II. You have to drill the holes for the front marker lights, scratch build the rear marker light bases, change the bell on the front to a single red light and add a vent on the left side of the cab. I can highly recommend the kit, btw I've a SD60F kit waiting to follow the F59PH and the F40PHL through the "production line".
  19. UP SD40-2

    UP SD40-2 Senior Member

    Joined:
    Apr 30, 2006
    Messages:
    2,812
    Likes Received:
    0
    Tobias, i think you are taking on an AWESOME project:thumb: . those models look like they have GREAT detail:thumb: . i cant wait to see how they turn out!!!:D -Deano
  20. caliban

    caliban Member

    Joined:
    May 3, 2006
    Messages:
    145
    Likes Received:
    0
    Hi :wave: ,

    most of the bigger parts are on the shell now. I will leave the screen over the radiators off until I've finished the paintjob. The radiators will be painted black and then masked until the rest is finished. I also added the marker lights on the front and a few other details like lift rings and grab irons on the rear. Next step is to bend the rest of the handrails ,to add the last missing small parts, scratch build the cab vent and rear marker light housing. Final step is the chassis, but still along way to go.
    announce1I still need information for the correct position of the horn, cab vent, bell and antennas.

    :thumb:Thanks:thumb:,

    Attached Files:
