    My layout needed a water tower at Vincents Landing, so I looked at a few that have been built recently, Masonjar's and Belg have both built real nice ones.As we have no proto types here in SA that I could base it on I surfed the Links and found onethat was to my liking.I decided to copy (with his permission ) the Water tower that Casey Feedwater has on his layout
    A tank on a stone plinth with a shed . Not being a fine scale modeler here is my project, Photo's were taken as it progressed so in the manner that Matthro uses to show his many fine projects here it is.
    Made the tank by glueing timber round a spraycan cap,after fist wrapping it with masking tape, acardboard box was made for the plinth

    Attached Files:

  2. jimmybeersa

    jimmybeersa Member

    Joined:
    May 15, 2001
    Messages:
    516
    Likes Received:
    0

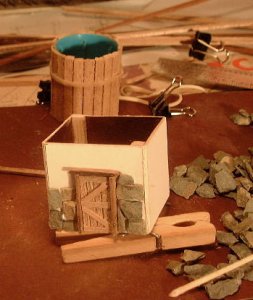

    Stone Mason at work

    Attached Files:

  3. jimmybeersa

    jimmybeersa Member

    Joined:
    May 15, 2001
    Messages:
    516
    Likes Received:
    0

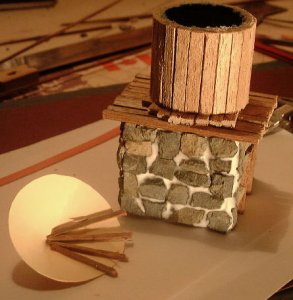

    Tank mounted on the plinth,note white glue run in to make the morter, disc cut for the roof and therafters being glued in tanks height was reduced to suit layout

    Attached Files:

  4. jimmybeersa

    jimmybeersa Member

    Joined:
    May 15, 2001
    Messages:
    516
    Likes Received:
    0
    Roof being shingled

    Attached Files:

  5. jimmybeersa

    jimmybeersa Member

    Joined:
    May 15, 2001
    Messages:
    516
    Likes Received:
    0
    Shed construction ...note rafter jig and cereal box

    Attached Files:

  6. jimmybeersa

    jimmybeersa Member

    Joined:
    May 15, 2001
    Messages:
    516
    Likes Received:
    0
    Shed erected andshingled,water spout as per tip from Masonjar for using apaint brush handle

    Attached Files:

  7. jimmybeersa

    jimmybeersa Member

    Joined:
    May 15, 2001
    Messages:
    516
    Likes Received:
    0

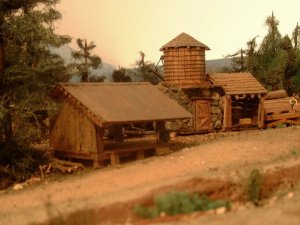

    Last one This is where it will be placed on the layout

    Attached Files:

  8. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Excellent workmanship Jimmy my friend. Hope to see more as this progresses. The stone work is great. What kind of stone do you use?A great addition to your railroad Jimmy. The tank looks like it has been there forever. Perfect weathering.
  9. jimmybeersa

    jimmybeersa Member

    Joined:
    May 15, 2001
    Messages:
    516
    Likes Received:
    0
    Robin... the rock chips are from a load of agregate that Stuart is useing to make concrete foundations, the rock is crushed waste rock from the mines
  10. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0
    This thread was moved to the Academy Noovember 2005. Some posts were deleted to provide clarity and continuity the this important thread. It has been locked, so if you have any comments on this thread, please make them in the appropriate forum. Thanks.
