Inside the Rotary

Discussion in 'Photos & Videos' started by DanRaitz, Apr 6, 2003.

  1. DanRaitz

    DanRaitz Member

    Joined:
    May 30, 2002
    Messages:
    316
    Likes Received:
    0

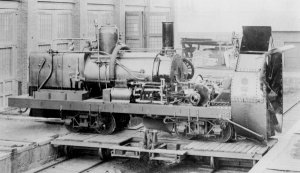

    I was going through my collection of railroad calendars and came across this shot. It is from the 1989 Great Northern Railway Historical Society's calendar. Showing the insides of Cooke #47 which was delivered to the Spokane Falls & Northern in Nov 1894. It became GN #X-802 in 1908 and then after a rebuild X-1511.
    Enjoy :D

    Attached Files:

    • guts.jpg
      File size:
      67.5 KB
      Views:
      108
  2. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Thanks for the post Dan, that`s a treasure Was it a snow blower?? or is that just an attachment?:)
  3. satokuma

    satokuma Member

    Joined:
    Jul 9, 2002
    Messages:
    56
    Likes Received:
    0
    Great photo...

    Interesting "transfer" table, modeling idea!
  4. shamus

    shamus Registered Member

    Joined:
    Dec 17, 2000
    Messages:
    3,688
    Likes Received:
    0
    Hi Dan,
    I just love these oldie photo's, lots of charm and nostalgia.

    Shamus[​IMG]
    [​IMG]
  5. RailRon

    RailRon Active Member

    Joined:
    Nov 23, 2002
    Messages:
    1,665
    Likes Received:
    0
    A fine picture, Dan! Thank you for posting it.

    It shows many interesting details. I suppose that the rotary blades were driven from a transverse axle across the car by some sort of crown wheel mechanism. Do you have a detail view of that mechanism? Or a hint where to find such information?

    Come to think of it: That must have been a hell of a hot, noisy and dangerous place to work inside that rotary snowplow! :eek:

    Ron
  6. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0
    Dan,
    I haven't gotten aroun to building, yet, but I have an Athearn, and a MDC kit for rotary plows. That interior shot will come in handy, thanks!!!
    Pete
