How do you open the loco cover?

Discussion in 'HO Scale Model Trains' started by PrairieTrains, Jun 18, 2008.

  1. PrairieTrains

    PrairieTrains Member

    Joined:
    May 25, 2008
    Messages:
    31
    Likes Received:
    0

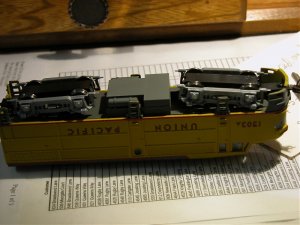

    Just received my starter loco - it is a Walther's ALCO FA-1 Diesel. I was just wanting to open it up to see how much room there might be for a decoder, etc. Is there any easy way without breaking something?? I've attached a photo. Thank you for your help, Pat Patrick

    Attached Files:

  2. e-paw

    e-paw Member

    Joined:
    Mar 17, 2007
    Messages:
    209
    Likes Received:
    0
    I have an older one from about 10 years ago. with a smaller fuel tank. Mine has 4 screws on the frame near the tank that hold the frame to the shell. if you pry off the tank they may be there.
  3. PrairieTrains

    PrairieTrains Member

    Joined:
    May 25, 2008
    Messages:
    31
    Likes Received:
    0
    The tanks do pry off but it is just solid plastic underneath. The only visible screws are on the couplers.
  4. logicman

    logicman Greybeard

    Joined:
    May 1, 2008
    Messages:
    542
    Likes Received:
    0
    Hi, Patrick. (There's a lot of us Patricks about.):mrgreen:

    It's not Walther's but may help.
    4 separate exploded view pdfs - somewhat typical of
    all manufacturers of this diesel type -

    Welcome to the Aristo-Craft Trains Internet Depot >> Exploded Parts Diagrams >>

    :wave:
  5. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0

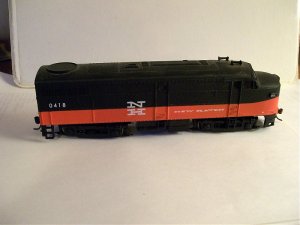

    I have one of those, just not in UP.
    Here's a step by step.
    Hope it helps.

    Attached Files:

    • fa1.jpg
      File size:
      145.6 KB
      Views:
      12
  6. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0

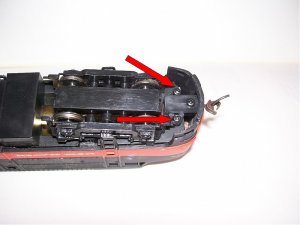

    First, remove the coupler boxes. There's two screws on eachh side that hold the box in. The rear coupler is the same. Just remember the longer coupler box is the front.

    Attached Files:

    • fa2.jpg
      File size:
      111 KB
      Views:
      7
  7. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0

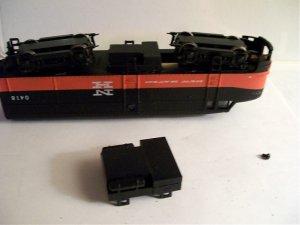

    Next...remove the fuel tank. This is held by clips on the frame. Slight pry with a jewlers screwdriver should pop it right off.

    Attached Files:

    • fa3.jpg
      File size:
      125.8 KB
      Views:
      6
  8. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0

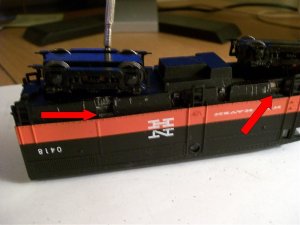

    Next...theres four tabs, two on each side, that hold the glazing for the side porthole. Carefully pry on these, and at the same time lift the frame until the clips come undone from the frame.

    Attached Files:

    • fa4.jpg
      File size:
      144.7 KB
      Views:
      9
  9. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0

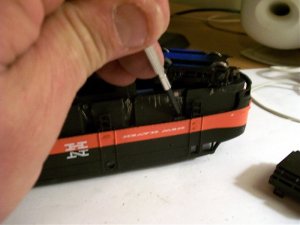

    Now comes the hard part.
    Carefully, at the point where the glazing clips are, lift the frame off the body. Its a good idea to alternate between the front and back, left and right side.You will get scratches on the frame, but thses will be hidden with the body back in place.
    Take your time on this step.

    Attached Files:

    • fa5.jpg
      File size:
      140.7 KB
      Views:
      5
  10. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0

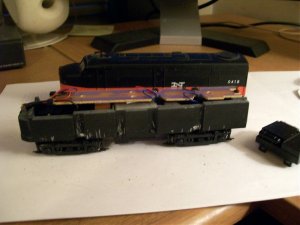

    And there you have it!
    Assembly is the reverse, except the body will slip right back on. Make sure you have the porthole glazing is in place.

    Attached Files:

    • fa6.jpg
      File size:
      141.8 KB
      Views:
      8
  11. PrairieTrains

    PrairieTrains Member

    Joined:
    May 25, 2008
    Messages:
    31
    Likes Received:
    0
    Wow! Thank you! You guys are amazing. I'll carefully do this AFTER a good night's sleep. Is there room for a decoder and speaker?
  12. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0
    By the looks, a speaker maybe pushing it. But you might be able to get a replacement PC board for a DCC decoder.
    Good luck...Let us know how you made out.
  13. jbaakko

    jbaakko Active Member

    Joined:
    Jun 25, 2006
    Messages:
    1,151
    Likes Received:
    0
    You should be able to fit a narrow rectangular speaker in there somewhere.
  14. PrairieTrains

    PrairieTrains Member

    Joined:
    May 25, 2008
    Messages:
    31
    Likes Received:
    0
    I'm new at this - but a speaker would be fluff (and really not necessary). I was wondering if just one of the small decoders would fit ok? You know, tip of little finger size with a bunch of wires sticking out of it --- :)
