HO Scale Injection Molding Equipment

Discussion in 'Scratchin' & Bashin'' started by Colton_modeler, Oct 14, 2008.

  1. Colton_modeler

    Colton_modeler Member

    Joined:
    Jan 12, 2006
    Messages:
    238
    Likes Received:
    0
    I haven't done much building since my transcontinental move east, but I was reading through some back issues of Mainline Modeler and Model Railroading and saw a little article by Dean Freytag on modelling heavy industrial equipment that inspired me to organize my workbench and get something small built.

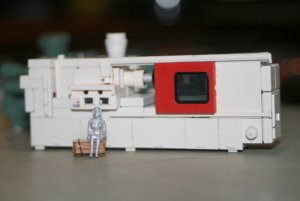

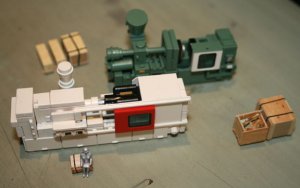

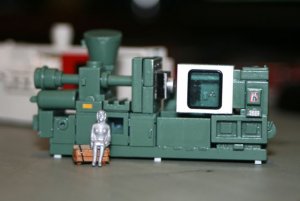

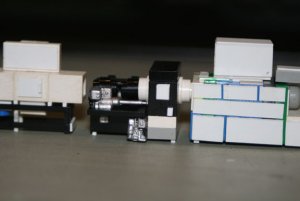

    So, here are two small models of large injection molding machines, freelanced but based on photos and function. One's modelled after a fairly new machine, the other a bit older. I still have to do some detail painting and add a few manufacturers decal to the newer (enclosed) unit.

    Attached Files:

  2. Colton_modeler

    Colton_modeler Member

    Joined:
    Jan 12, 2006
    Messages:
    238
    Likes Received:
    0

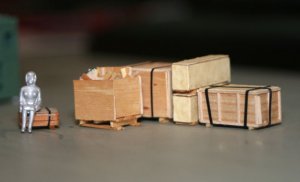

    I also built a few wooden crates, experimenting with different materials. I have some veneer samples that look like (and, technically, are) scale plywood.

    Attached Files:

  3. TruckLover

    TruckLover Mack CH613 & 53' Trailer

    Joined:
    Apr 15, 2006
    Messages:
    4,352
    Likes Received:
    0
    HOLY COW!!! How did you make those things? Those are AWESOME!!!!
  4. e-paw

    e-paw Member

    Joined:
    Mar 17, 2007
    Messages:
    209
    Likes Received:
    0
    nice work.
  5. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0
    Wow...that's some serious looking machinery.:thumb:
  6. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,634
    Likes Received:
    0
    Outstanding modeling! Those are so nicely done I didn't think they were scratch built.

    Loren
  7. nachoman

    nachoman Guest

    Nice work!

    But what a weird looking figure...???;)

    Kevin
  8. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0
    I didn't go there...:oops::mrgreen:
  9. CCT70

    CCT70 Member

    Joined:
    Jun 25, 2003
    Messages:
    543
    Likes Received:
    0
    Injection Molded manequin manufacturing? :mrgreen:
  10. Dave Harris

    Dave Harris Member

    Joined:
    Feb 21, 2001
    Messages:
    405
    Likes Received:
    0
    Very NICE . When I read the intro , I was hoping you had found a way to build a REAL injection machine -- I was all set to build my own & MAKE ALL my parts from now on!!sign1
  11. Colton_modeler

    Colton_modeler Member

    Joined:
    Jan 12, 2006
    Messages:
    238
    Likes Received:
    0
    Thanks everyone. I know the figure is funky - I wanted to add a scale reference, and that's the only one I found handy, mixed with some scrap styrene (like I said, I just started getting my work area set back up:rolleyes:).

    Anyway, I thought I'd hold out on the big 'secret' to building these things so everyone would wonder how they were built....they're about 90% Legos :thumb:. I've saved a huge box of them since I was a kid and gave them to my son, and he was willing to let me requesition some for model building purposes.

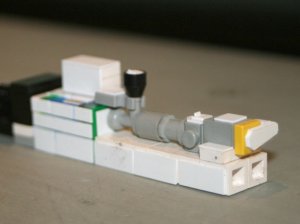

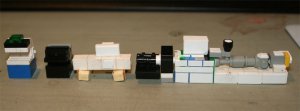

    Here's a few in-progress shots without paint - these are for a thermoplastic extruder and plastic pipe production line. You can see that some of the Legos have been modified to make them less obvious, and a layer of thin styrene panels has been added - seeing 'scale' edges goes a long way in the realism.

    I still need to add support feet and a framework to the cooling section (long white rectangular piece on blocks), latches and handles, and a bunch of black insulated wire for hydraulic lines (after everything else is painted). I'll be adding hydraulic and cooling lines to the first two models I posted as well.

    Attached Files:

  12. Colton_modeler

    Colton_modeler Member

    Joined:
    Jan 12, 2006
    Messages:
    238
    Likes Received:
    0
    Dave, there's actually a fair amount of information on the web as to how to build your own real machine on the cheap, and several manufacturers of small machines that run on compressed air (I've used a machine built by Morgan Press) - the prices aren't bad; the most difficult part is the tooling (molds).
  13. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,634
    Likes Received:
    0
    Legos. Never would have known. Great idea.

    Loren
  14. nkp174

    nkp174 Active Member

    Joined:
    Oct 11, 2006
    Messages:
    1,549
    Likes Received:
    0
    Very clever! They didn't seem to be as simple as your post implied...but now it is very clear that they are. I recognize the lego parts now. Excellent modeling!
  15. Triplex

    Triplex Active Member

    Joined:
    Aug 24, 2005
    Messages:
    1,851
    Likes Received:
    0
    Shame on all of you for not recognizing.
  16. Major Walter Schmidt

    Major Walter Schmidt Newbie Designer

    Joined:
    May 26, 2008
    Messages:
    43
    Likes Received:
    0
    sign1Too bad they arn't real...
  17. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0
    THOSE ARE EXCELLENT!
    Working in the plastic industry before(2000-2005). I suggest two conveyors that comes out from the bottom of the machine. One for the "sprues" that'll lead to a grinder for recycling, and one for the finished product. These are usually supplied with new machines.
  18. Colton_modeler

    Colton_modeler Member

    Joined:
    Jan 12, 2006
    Messages:
    238
    Likes Received:
    0
    Thanks for the tip. I had planned to add the conveyor for finished parts, but a 2nd convery for the sprues hadn't crossed my mind.
    I've got most of the pre-paint detailing for the pipe extursion line done, I'll post some more progress pics later today.
  19. Colton_modeler

    Colton_modeler Member

    Joined:
    Jan 12, 2006
    Messages:
    238
    Likes Received:
    0

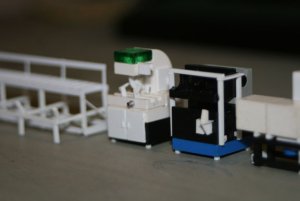

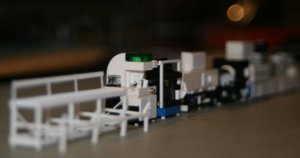

    Here are a few more progress shots. In addition to some more panelling, I've added some technical looking details from my scrap box, and built an outfeed table from a casting for a porch railing and some 4x4 square styrene. I can't wait to get some paint on these puppies this weekend:thumb:

    Attached Files:

  20. Colton_modeler

    Colton_modeler Member

    Joined:
    Jan 12, 2006
    Messages:
    238
    Likes Received:
    0

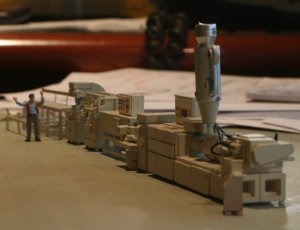

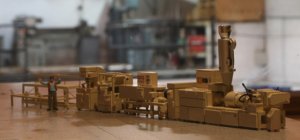

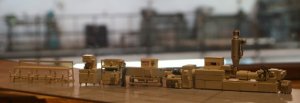

    And here's the finished pipe extrusion line - now all I need is some scale lengths of 8" pipe. It's amazing what a coat of paint and a few decals do:thumb:

    Attached Files:
