Highway overpass

Discussion in 'Scratchin' & Bashin'' started by Bill Pontin, Jun 8, 2006.

  1. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0

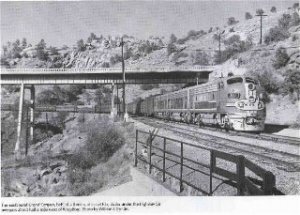

    Here is a picture my Dad took back in the fifties of the Highway 58 overpass just a little west of Woodford, CA.

    Attached Files:

  2. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0

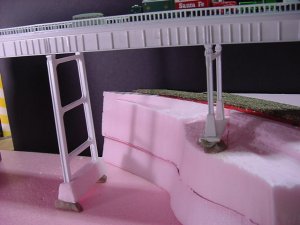

    My brother wants to do a prototypical NTrak module of this scene and I volunteered to make the overpass with styrene. So far so good, the only problem is I am making it to dimensions he supplied from his partially completed module. He is in Canada and I am in Connecticut and using a mock up of his dimensions I am scratch building this thing.

    Attached Files:

  3. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0

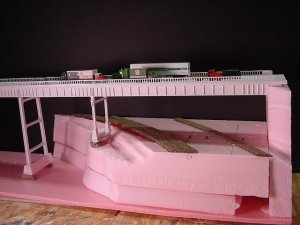

    The pink foam is not the module but the heights he supplied for the overpass construction and is for my reference only. The actual overpass is twice the length, but we had to limit the size of the module. The overpass will start at the edge of the module and cross over the red/blu/yel lines and onto the mountain.

    Attached Files:

  4. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0

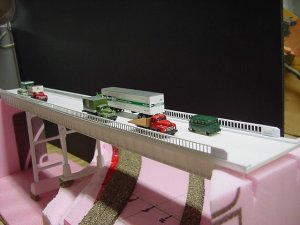

    Painting will be a problem as the photograph is black and white. I assume the railings and roadway are concrete and will be painted accordingly, the steel "I" beams and towers I can only guess that they are grey in color. Any help would be appreciated here, this is California in the late fifties and the overpass pictured has since been replaced.

    Attached Files:

  5. zedob

    zedob Member

    Joined:
    Dec 26, 2004
    Messages:
    795
    Likes Received:
    0
    Nice job. Some paint and weathering and it'll sure be an eye catcher.
  6. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0

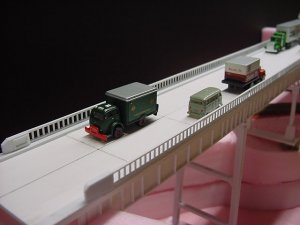

    Shipping the completed structure should pose no problem as long as I do not attach the towers. Hope my brother does not ask me for the vehicles I pictured.

    Attached Files:

  7. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0
    Found my other picture of the highway overpass, hope it's not too big to open. This picture shows the actual length of the overpass. Too big, will try and shrink it.
  8. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0
    Maybe it will upload now -

    Attached Files:

    • s.jpg
      File size:
      24.9 KB
      Views:
      202
  9. MilesWestern

    MilesWestern Active Member

    Joined:
    Sep 21, 2005
    Messages:
    1,905
    Likes Received:
    0
    Maybe the girder portion would be a dark version of seafoam green, but closer to forest green, I saw this on some bridges in my (near Oakland, CA) area, but not sure if this is comtemparary, or it just looks old...hmm...
  10. zedob

    zedob Member

    Joined:
    Dec 26, 2004
    Messages:
    795
    Likes Received:
    0
    There's a good chance that it may have been painted silver.
  11. MilesWestern

    MilesWestern Active Member

    Joined:
    Sep 21, 2005
    Messages:
    1,905
    Likes Received:
    0
    That sounds (and looks) correct, good thinking zedob!
  12. Russ Bellinis

    Russ Bellinis Active Member

    Joined:
    Feb 14, 2003
    Messages:
    4,711
    Likes Received:
    0
    I think it was probably painted silver, but don't forget to blacken the area directly over any tracks to simulate exhaust smoke and soot
