Help with Trix engine

Discussion in 'N / Z Scale Model Trains' started by COX 47, Jun 23, 2006.

  1. COX 47

    COX 47 Member

    Joined:
    Dec 28, 2004
    Messages:
    133
    Likes Received:
    0
    I am trying to get a old Trix f unit going again...I have checked it out and I think the trouble may be in the pick-ups on the trucks to the frame? anybody worked on one?..Cox 47
  2. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    Yes, I have. I hard wired the wheel wipers to the motor to eliminate the problem.
    Here's a link to a thread showing these locos.
    http://www.the-gauge.com/showthread.php?t=10943

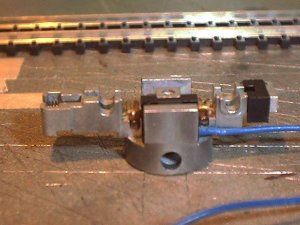

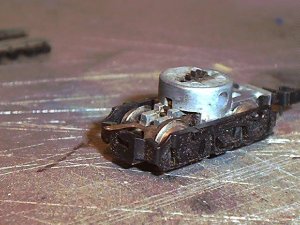

    Attached are some photos of the rewired truck.

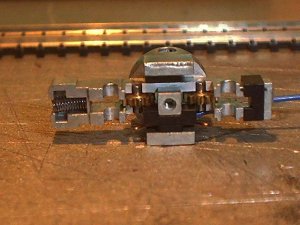

    The 3rd photo is the stock truck.

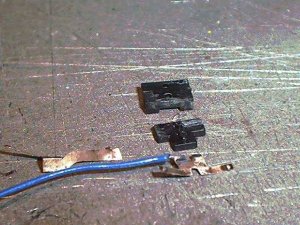

    The 4rth shows the modified wiper with the wire. Wire from an old mouse works great.
    Some filing of the wiper insulators was required to clear the solder and wire.
    I wired them directly to the replacement motor, but you can solder the wires to the PC board under the motor.
