Geirgetown Sub part 2

Discussion in 'HO Scale Model Trains' started by Matthyro, Mar 11, 2005.

  1. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Georgetown Sub part 2

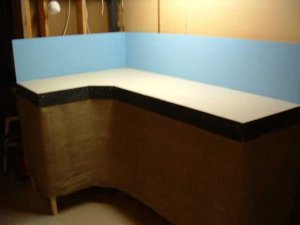

    Today I made the L shaped frame work using the old L shaped beams. Added legs then a 1/2 inch plywood surface and covered it with 1/2 inch white foam. Added skyboard which is 1/2 inch chip board. The overall size is 4ft on one leg and 7ft on the other. This is in answer to the challenge that Val(spitfire) and Johnathan (Catt!) gave me to come up with an HO diorama. The track plan that starts this project can be found in the track planning forum. The trackplan will no doubt see some changes when I fit the actual track. I will start that tomorrow after visting my LHS.

    Attached Files:

    • st.jpg
      File size:
      20.9 KB
      Views:
      246
  2. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

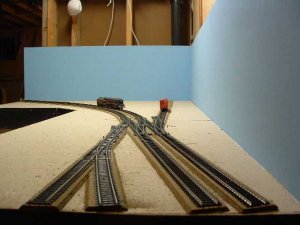

    I have been laying some of the track. The dual track main line is done with crossover for switching. That old loco you can see is a Hornby Du-L0 The Dutchess of Atholl. I have had that loco since I was a kid.
    Tracklaying in HO is a breeze compared to N.
    So far I have sunk $350 into this project.

    Attached Files:

  3. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Looking nice and BIG Robin :thumb: :D :D :D :D :D
  4. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

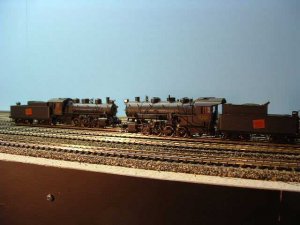

    Just received my two CN switchers today. An 0-6-0 and an 0-8-0
    I am more than impressed with the workmanship on thes Proto 2000 locos

    Attached Files:

    • sw1.jpg
      File size:
      36.8 KB
      Views:
      183
  5. Clerk

    Clerk Active Member

    Joined:
    Nov 6, 2002
    Messages:
    1,744
    Likes Received:
    0
    That's neat Robin
  6. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Too cool Robin! :cool: As usual you are making very fast work of this. I agree with you about the P2K engines - they're really nicely done, and good runners as well.

    Just wait til you see all the detailing parts available in HO!!

    Val
  7. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,718
    Likes Received:
    0
    Wow Robin - you work fast!

    As per Val's message, you will not be disappointed with the P2K's, although the 0-8-0 does not have tender pick-ups and is a little more reluctant over insulated frogs. There is a kit to add pick-ups if you so choose.

    Andrew
  8. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Thanks for the heads up on the pickups Andrew. Who supplies the pick-up kit?
    The track laying is done. There are 16 sections of flex track and 20 Peco switches. Two of the switches are large diameter and 18 are medium diameter.
    There is far more track than I would normally have in the space but as this is to be a switching puzzle I figure it is appropriate. There are 6 industries and 6 box cars. A roll of the dice will determine which industry has ordered a pck-up and another roll of the dice will determine which box car will be sent. I am hoping this will provide some fun for me and for visitors eho come by.

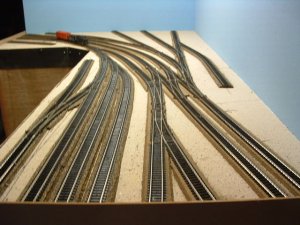

    The first photo is looking west. There is a three track yard on the left and you can see the industry trackage at the top.

    Attached Files:

    • tp4.jpg
      File size:
      68 KB
      Views:
      141
  9. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

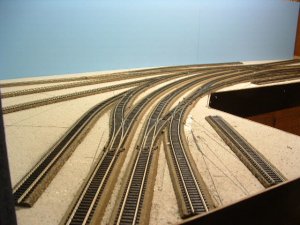

    The next photo is looking East. I will paint the ties and track next then it will be ready for ballast. It will take me a while to build the various industries.

    Attached Files:

    • tp5.jpg
      File size:
      67.1 KB
      Views:
      145
  10. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Cool looking layout, Robin!

    Looking forward to future progress reports.
  11. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0
    Looks good Robin.
    Must be hard going from N to HO.
    Val's right...You can "See" detail parts in HO!
  12. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,718
    Likes Received:
    0
    Hi Robin,

    There are a few options:

    1) I believe the kit is from Life-Like itself - Hobbycraft here in Canada.

    2) If you can't locate one, here is a great thread by Jon Grant (from this here forum, in fact!) about how to do it yourself...

    http://www.the-gauge.com/showthread.php?t=13691

    3) The tender from the 0-6-0 has the pick-ups, so you could just find a 0-6-0 tender and swap it for the 0-8-0 one.


    Andrew
  13. NYC-BKO

    NYC-BKO Member

    Joined:
    Jun 6, 2004
    Messages:
    512
    Likes Received:
    0
    Very, very nice, Robin.-:thumb: You crossed over, eh!

    Looking forward to the progress.
  14. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Brian I am still an N gauger at heart but this challenge has been fun and I must admit these HO steamers are definately a cut above their N gauge brothers
  15. Will_annand

    Will_annand Active Member

    Joined:
    Jan 12, 2004
    Messages:
    1,509
    Likes Received:
    0
    Brian, Robin only changed his hat for the moment. :wave:

    Say? Would that make him a cross dresser? :confused:

    Sorry Robin, could not resist. :D
  16. Eddie Landreth

    Eddie Landreth Member

    Joined:
    Mar 9, 2003
    Messages:
    115
    Likes Received:
    0
    Very nice, Robin. :thumb: You do excellent work, very professional and polished looking. I really like the amount of operations that you've worked into the available space.
  17. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

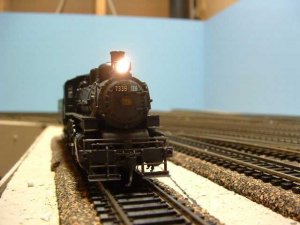

    Thanks Eddie, it has been a challenging effort for me to make it suite what I want it for. I have decoders installed on the locos now and replaced the lights with yeloglo white L.E.Ds. Are the ever bright.

    Attached Files:

    • hl.jpg
      File size:
      34.7 KB
      Views:
      73
  18. Will_annand

    Will_annand Active Member

    Joined:
    Jan 12, 2004
    Messages:
    1,509
    Likes Received:
    0
    Looking good Robin. :thumb:

    How does it feel working with such gigantic track and rolling stock? :confused: :D
  19. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,718
    Likes Received:
    0
    Hi Robin...

    I love the look of those LEDs - could you provide more info please? I am currently running my 0-6-0 with the original bulbs, resistors, and less than satisfactory appearance...!

    Thanks.

    Andrew
  20. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Whoo-hoooo! Looking GOOD Robin!! :thumb:

    Val
