Executive Long Range Shuttle (TOS non-canon)

Discussion in 'Renders and Illustrations' started by thehaggard, Feb 25, 2014.

  1. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,516
    Likes Received:
    2,454
    This is REALLY LOOKING GOOD!!!
    I am looking forward to see it finished!!!
    thehaggard likes this.
  2. thehaggard

    thehaggard Member

    Joined:
    Sep 13, 2004
    Messages:
    38
    Likes Received:
    39
    Preliminary unfolding is complete. But, my not get more work done on it for a week or two.
  3. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,516
    Likes Received:
    2,454
    This looks like it will be a fun (easy) build.
    thehaggard likes this.
  4. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,047
    Likes Received:
    3,686
    This is absolutely fantastic! I can't believe that I haven't seen this thread for so long..! :)
    Last edited: Sep 16, 2014
  5. spaceagent-9

    spaceagent-9 Right Hand Man and Confidant Moderator

    Joined:
    Jul 11, 2013
    Messages:
    1,859
    Likes Received:
    1,206
  6. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,684
    Likes Received:
    3,524
    Non Canon, hogwash, I think it is of the highest caliber!! :)
  7. thehaggard

    thehaggard Member

    Joined:
    Sep 13, 2004
    Messages:
    38
    Likes Received:
    39

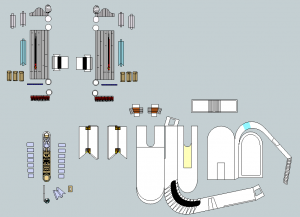

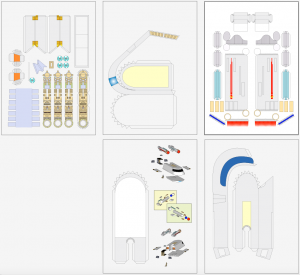

    The page work is done in Illustrator... tabs and folds seem all good... now on to the test build... someday. Hopeful it will be test built before Christmas. Five pages with exploded view for instructions. The parts and the exploded view will be numbered. Then I will skin that mule. -The Haggard
    Screen Shot 2014-10-27 at 9.36.50 PM.png
    Tonino, D-WHALE, bgt01 and 1 other person like this.
  8. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,516
    Likes Received:
    2,454
    The layout looks good.
    I am looking forward to seeing the alpha build.
  9. thehaggard

    thehaggard Member

    Joined:
    Sep 13, 2004
    Messages:
    38
    Likes Received:
    39

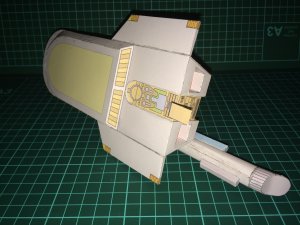

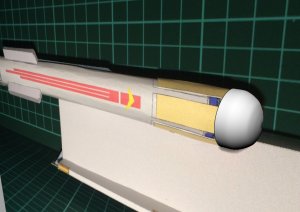

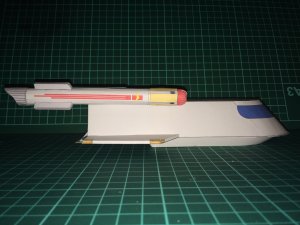

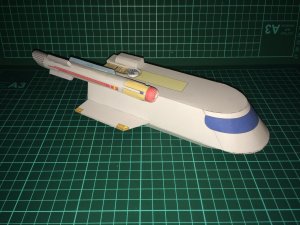

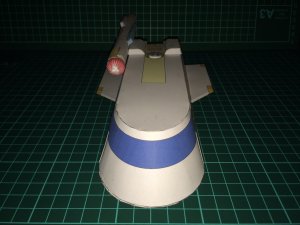

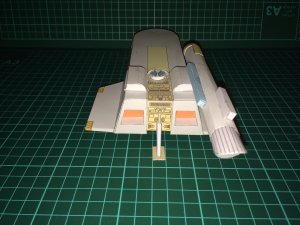

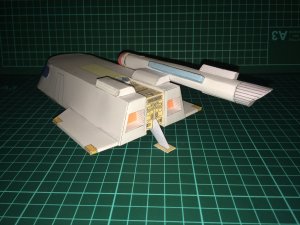

    And here is the alpha build. I did it quick and dirty. After almost 4 years of no designing or building I realized something... I HATE domes (as in the warp engine Bussard Collector). I may redo it as layered ring sections rather than tapered flaps. Now on to textures and a real (careful) build. Sometime next year?
    IMG_0023.jpg IMG_0025.jpg IMG_0026.jpg IMG_0027.jpg IMG_0028.jpg IMG_0030.jpg
    Rhaven Blaack, D-WHALE and bgt01 like this.
  10. THE DC

    THE DC Member

    Joined:
    Nov 12, 2008
    Messages:
    738
    Likes Received:
    80
    thehaggard likes this.
  11. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,684
    Likes Received:
    3,524

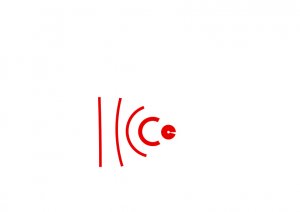

    I think the Domes of the Bussard Collectors are best done with conical rings. Give me a diameter, and profile curve, as long as I have a picture that has the diameter's stated size, just draw the profile curve of the dome, and I can whip you up a set of conical rings. It is really easy to do, if the model is of a decent size., and yours looks big enough. Give me the diameter of the Base of the dome, and I will bang out some conical rings. You could use these if you scale them to your needs. :)

    1A.jpg Unrolled.jpg
  12. thehaggard

    thehaggard Member

    Joined:
    Sep 13, 2004
    Messages:
    38
    Likes Received:
    39
    Thanks for the kind offer, but I have no trouble converting it to cone sections. I just need to find time to add the art/skin detail... and make a new build.
  13. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,684
    Likes Received:
    3,524
    Have you ever tried using a cone/petal combination? I did this with a Cessna Aircraft, and the result was amazing. I would connect pieces that lined up in a manner that it was for the most part, not all, but many pieces were all connected somewhere, which made forming with a steel ball ended tool possible. The Bussard collector may not be the best piece for this, but it is a technique worth investigating. Sample below.


    [​IMG]
    Patron_zero likes this.
  14. thehaggard

    thehaggard Member

    Joined:
    Sep 13, 2004
    Messages:
    38
    Likes Received:
    39
    That's a cool idea, but I think you are correct that it might not be best for so small of a part. But it is a technique I will use elsewhere. Thanks.
  15. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,684
    Likes Received:
    3,524
    Great! I try to offer ideas, that is all, I never criticize, though I may offer technique improvement suggestions, that is more of a mechanical thing. Some people take it wrong, but I have learned what I know from listening, and looking at what others do. That is what this forum excels at, the exchange of ideas. :)
    thehaggard likes this.
  16. thehaggard

    thehaggard Member

    Joined:
    Sep 13, 2004
    Messages:
    38
    Likes Received:
    39
    All taken in good faith and assuming the best of itentions... all good. I wouldn't post my work in progress if I was offended by other's opinions. I take them as learning, either mine or theirs.
    zathros likes this.
  17. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,684
    Likes Received:
    3,524
    It is a technique that works really well on models that have lots of panel lines. You can make it difficult to see where the pieces came together by following the panel lines. :)
    thehaggard likes this.
  18. thehaggard

    thehaggard Member

    Joined:
    Sep 13, 2004
    Messages:
    38
    Likes Received:
    39
    I did that very thing on a few of my other models, most notably the Work Horse line of spaceships and the Taiwan Space Command models I did for E-Cardmodels. Unfortunately, I want this model to have the old 60's Trek look with minimal panels and a clean sheen look. the lines are going to be harder to hide, especially right around the nose where the parts are just too big to keep on one page as one part.
  19. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,684
    Likes Received:
    3,524
    There are those limitations with paper. I have been experimenting with setting papers and using different size spoons, some very round, to try and fold the wet part over. As long as you are using Pigment Ink, you can actually almost pull the fibers apart, and when it dries, put some glue in the back to strengthen the part. Some incredible blisters made of paper can be made that way. :)
  20. thehaggard

    thehaggard Member

    Joined:
    Sep 13, 2004
    Messages:
    38
    Likes Received:
    39

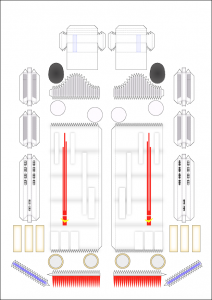

    Hi Gang - it's been a while. Been busy with writing and teaching. Finally started on real skinning of the model.
    Screen Shot 2015-03-22 at 10.37.30 PM.png
