Danscrew's Colonial one

Discussion in 'Science Fiction & Fantasy' started by Danscrew, Feb 15, 2014.

  1. Danscrew

    Danscrew Danscrew

    Joined:
    Oct 10, 2011
    Messages:
    195
    Likes Received:
    181
    IMG_3608.JPG IMG_3604.JPG IMG_3605.JPG IMG_3606.JPG
    I guys,

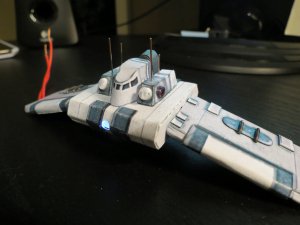

    I'm back again and started a new build. The BSG Colonial one. Like my other build, i love to do more than cut, mark and glue the parts. I love to add some détails and lights and this model will be challenging. I try to reproduce my construction like the pictures we found on the net.

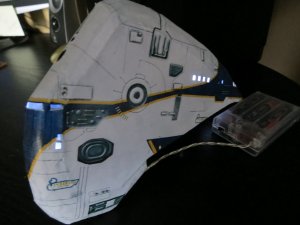

    I started with the head. The first build was terrrible due to the cut I have to do for the windows and preparation I have to do to prevent the light from passing in the through the paper. I scraped it. The second attempt was not bad but I was not satisfied. The third was better but I'm not sure.

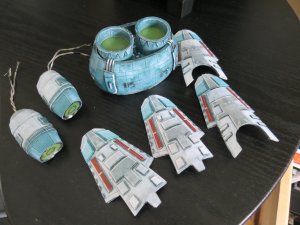

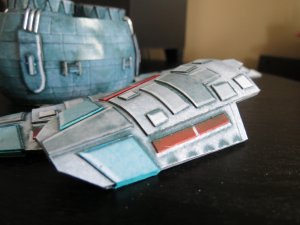

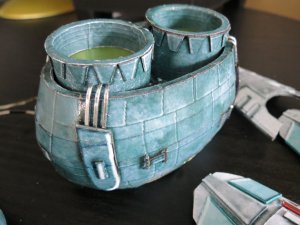

    I decided to steep this piece aside and do the fins and the back engines.

    Soon, I will start the ring (this one will be cool with the lights) and the hull.
    Revell-Fan, D-WHALE, bgt01 and 3 others like this.
  2. Danscrew

    Danscrew Danscrew

    Joined:
    Oct 10, 2011
    Messages:
    195
    Likes Received:
    181
    Some update..........

    Attached Files:

    Revell-Fan, D-WHALE, bgt01 and 2 others like this.
  3. DanBKing

    DanBKing Dan the Man

    Joined:
    Feb 29, 2012
    Messages:
    1,659
    Likes Received:
    1,072
    Oh boy! Another beauty in the making!
    I am 'watching' this!
  4. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator

    Joined:
    Jun 12, 2009
    Messages:
    7,417
    Likes Received:
    2,254
    It looks like you are off to a really good start!
    I am looking forward to seeing how this project will turn out.
  5. Revell-Fan

    Revell-Fan Co-Administrator Administrator

    Joined:
    Aug 1, 2009
    Messages:
    5,892
    Likes Received:
    3,537
    FINALLY - ANOTHER MASTERPIECE IN THE WORKS!!!!

    :):) :):):) :):):)

    Assembling the curved parts of the head in this high quality is simply breath-taking! Even at this early stage your build looks much better than mine!!! (My head is slightly warped...)

    Some words of caution: Inserting the head into the main body is a bit tricky. You may need to widen the front piece of the neck a bit to make the gap large enough to accept the head.

    Are you using greaseproof paper for the windows?
    What about the engines? Will they be glowing as well?
  6. zathros

    zathros -----SENIOR---- Administrator

    Joined:
    Apr 6, 2013
    Messages:
    7,405
    Likes Received:
    3,330
    Oh I like this model so much. I just love this ship! Great start! :)
  7. dnalor

    dnalor Active Member

    Joined:
    Oct 28, 2011
    Messages:
    928
    Likes Received:
    183
  8. Danscrew

    Danscrew Danscrew

    Joined:
    Oct 10, 2011
    Messages:
    195
    Likes Received:
    181

    Thank's for the tip R-F.

    All the engines will be glowing and the ring engines will be also glowing. For those one I will post some ''How I make'' pictures to show the bulding step. So stay around I will post someting soon.

    Attached Files:

    D-WHALE, bgt01, Revell-Fan and 2 others like this.
  9. Revell-Fan

    Revell-Fan Co-Administrator Administrator

    Joined:
    Aug 1, 2009
    Messages:
    5,892
    Likes Received:
    3,537
    YAY! Thank you for making this fine model even better! You have glued me to this thread, ya know..! ;-)
  10. Danscrew

    Danscrew Danscrew

    Joined:
    Oct 10, 2011
    Messages:
    195
    Likes Received:
    181

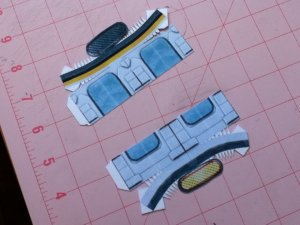

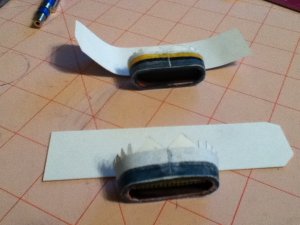

    The ring engine (the back)

    Attached Files:

  11. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator

    Joined:
    Jun 12, 2009
    Messages:
    7,417
    Likes Received:
    2,254
    I like how you used the screen for added detail. The effect is PERFECT!!!
  12. Danscrew

    Danscrew Danscrew

    Joined:
    Oct 10, 2011
    Messages:
    195
    Likes Received:
    181
    Thanks you guy's. I will try to do the front engine this evening and post it with the light on.
  13. zathros

    zathros -----SENIOR---- Administrator

    Joined:
    Apr 6, 2013
    Messages:
    7,405
    Likes Received:
    3,330
    Incredibly cool!! :)
  14. Danscrew

    Danscrew Danscrew

    Joined:
    Oct 10, 2011
    Messages:
    195
    Likes Received:
    181

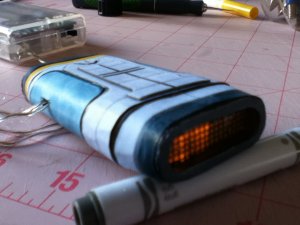

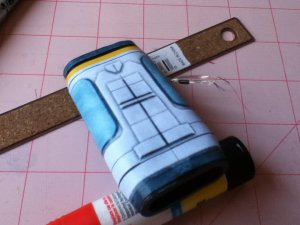

    I almost competed the engine. The next stage is the improvement and the détails.

    Some tips : I put some black electric tape Inside the piece where the light glow. It avoids seeing the light somewhere else that the place we want to see her.

    Attached Files:

    Last edited: Mar 26, 2014
    Chris74, D-WHALE, bgt01 and 3 others like this.
  15. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator

    Joined:
    Jun 12, 2009
    Messages:
    7,417
    Likes Received:
    2,254
    GREAT TIP on using the black electrical type inside the component for the light.
    Chris74 likes this.
  16. Revell-Fan

    Revell-Fan Co-Administrator Administrator

    Joined:
    Aug 1, 2009
    Messages:
    5,892
    Likes Received:
    3,537
    Ueber-Cool..! :cool:
  17. Danscrew

    Danscrew Danscrew

    Joined:
    Oct 10, 2011
    Messages:
    195
    Likes Received:
    181
    Some computer problem......I'm back !

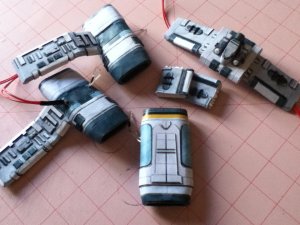

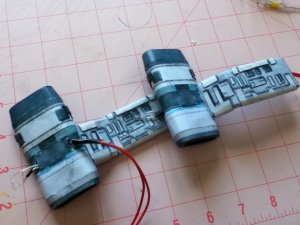

    I completed 2/3 of the ring engine.

    For enhancement I printed the pieces several times on high quality paper. Before sticking thenew parts, I sanded the harshness to have the softest possible forms. I take an other set to make the détails. In summary, I print four or five times the parts.

    Attached Files:

    Last edited: Mar 29, 2014
    D-WHALE, bgt01, Malgo and 3 others like this.
  18. Revell-Fan

    Revell-Fan Co-Administrator Administrator

    Joined:
    Aug 1, 2009
    Messages:
    5,892
    Likes Received:
    3,537
    That ring was kind of a b***h to me, too :p! I had to print it twice before it was safe in place.

    BTW, you may need to adapt the lower and upper hull assembly. The mesh was really stubborn when it came to chopping the parts into sections. I think it would be easier to cut off the pieces forming the skeleton, attaching them to the flat base(s) and then wrapping the upper (lower) hull skin around. You may need to cut the skeleton pieces a tad smaller to make them fit. (This was the first internal skeleton I developed, so please accept my apology if anything is a bit too big :oops::):rolleyes:!)

    I may get back to the kit and revise it someday... :)
  19. Danscrew

    Danscrew Danscrew

    Joined:
    Oct 10, 2011
    Messages:
    195
    Likes Received:
    181
    Third engine and all the pièces of the ring completed !

    Attached Files:

    D-WHALE, bgt01, Malgo and 1 other person like this.
  20. Danscrew

    Danscrew Danscrew

    Joined:
    Oct 10, 2011
    Messages:
    195
    Likes Received:
    181

    Thank's RF for the tips

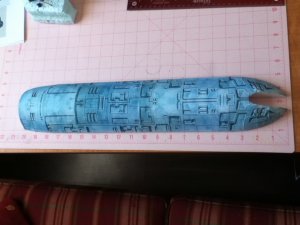

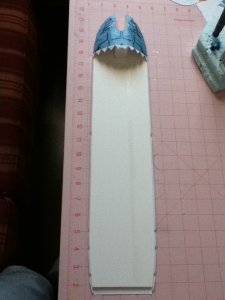

    I already assembled the lower hull and this is how I do

    First, I cut and assembled the pieces 17-18-19. I cut a piece of form core board and glued with stick glue on the skeleton. I make sure that the tabs goes up to glue the body parts. That help me getting a solid and plane surface. It is easier to stick the hull segments.

    After that, I glued the hull segments 20 to 25 starting with the part 20.

    I didn't put the inner skeleton cause the piece are to high. So I've made them with form core.

    I think you did a great job with the mesh. The are ok. :)

    Attached Files:
