Clone Wars ATTE

Discussion in 'Science Fiction & Fantasy' started by Scarecrow, Dec 13, 2011.

  1. Scarecrow

    Scarecrow Member

    Joined:
    Sep 15, 2011
    Messages:
    33
    Likes Received:
    0
    Right! Finally back to this after a busy couple of months.

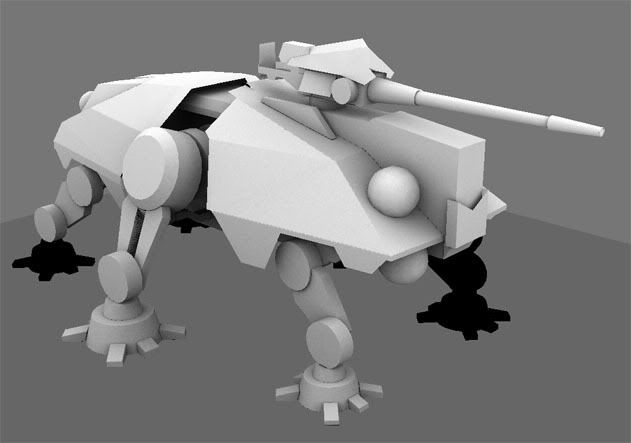

    Got it unwrapped at lunchtime and ran a quick Ambient Occlusion bake to a texture. I can now get on with texturing it. My favourite bit.

    [​IMG] [​IMG]

    Crow
  2. Zathros

    Zathros Guest

    WOW!! You have a beauty on your hands there!! :)
  3. Scarecrow

    Scarecrow Member

    Joined:
    Sep 15, 2011
    Messages:
    33
    Likes Received:
    0
    I finally got some time to work on this. It's been quite a while.

    I started roughing out the panel lines using my umpteen tons of reference images and Maya's 3DE paint tool. I've also modified a few bits and remapped and re-lit it several times. I need to get all that nailed before I finally move over to Pepakura.

    Crow

    [​IMG]
  4. blaar

    blaar Member

    Joined:
    Mar 10, 2008
    Messages:
    263
    Likes Received:
    0
    Thanks for the update, really looking forward to this and to the completion of that other little project of "ours" :)
  5. Scarecrow

    Scarecrow Member

    Joined:
    Sep 15, 2011
    Messages:
    33
    Likes Received:
    0
    Yes, I haven't forgotten about the Axeman. He's still in the projects folder :D

    Crow
  6. kolacho

    kolacho Member

    Joined:
    Aug 3, 2007
    Messages:
    32
    Likes Received:
    0
    OMG! OMG! :) y love this model!! please can you post some pic of the 3d model? it a possibility to make it in another scale? 1/50 maybe?
    I stay tunned :)
  7. Scarecrow

    Scarecrow Member

    Joined:
    Sep 15, 2011
    Messages:
    33
    Likes Received:
    0
    My original plan was to make it about 16cm long as a desk decoration, but I'm seriously considering making it 1:50 now to work with 28mm miniatures for gaming. That'd make it about 26cm long.

    oh.. and most of the images posted so far are of the 3D model.

    Crow
  8. kolacho

    kolacho Member

    Joined:
    Aug 3, 2007
    Messages:
    32
    Likes Received:
    0
  9. kolacho

    kolacho Member

    Joined:
    Aug 3, 2007
    Messages:
    32
    Likes Received:
    0
  10. Scarecrow

    Scarecrow Member

    Joined:
    Sep 15, 2011
    Messages:
    33
    Likes Received:
    0
    Quick update.

    I've made some progress on drawing in the panel lines properly.

    [​IMG]

    Crow
  11. Scarecrow

    Scarecrow Member

    Joined:
    Sep 15, 2011
    Messages:
    33
    Likes Received:
    0
    I'm considering making the PDO available for folks who want to tinker with scale and maybe add their own textures etc, however my concern is that with the latest version of pepakura, it's possible to extract the mesh from the file and I don't really want people doing that. If I thought folks might use it honestly then I wouldn't mind, but I wouldn't want to see it for sale on Turbosquid and the like as I believe happens all too often.

    Is it possible to lock a PDO file so that textures and scale can be changed but the mesh can not be extracted?

    Crow
  12. dnalor

    dnalor Active Member

    Joined:
    Oct 28, 2011
    Messages:
    928
    Likes Received:
    183
    why don't you make it as a PDF?

    it's a nice model...
  13. Scarecrow

    Scarecrow Member

    Joined:
    Sep 15, 2011
    Messages:
    33
    Likes Received:
    0
    Well, that's been my intention all along, but PDOs allow folk to customise the model. Someone suggested simply providing the part sheets in a scalable format, including just the linework so that folk can make the parts any size and colour it themselves.

    It'll be a wehile before I have the model ready to publish, so I've got time to consider it.

    Crow
  14. Millenniumfalsehood

    Millenniumfalsehood Active Member

    Joined:
    Mar 17, 2007
    Messages:
    1,610
    Likes Received:
    94
  15. Scarecrow

    Scarecrow Member

    Joined:
    Sep 15, 2011
    Messages:
    33
    Likes Received:
    0
    Those are some gorgeous shots and will help with a couple of things. I'm basing the model, panelling and texturing on the Clone Wars model, though and I've umpteen dozens of screen grabs as reference for that.

    Crow
  16. Scarecrow

    Scarecrow Member

    Joined:
    Sep 15, 2011
    Messages:
    33
    Likes Received:
    0
    Okay, the panel lines are pretty much done, I think. There's still a couple of details to mop up and some to adjust, but it's nearly ready for texturing.

    [​IMG]

    Crow
  17. Kjev

    Kjev Member

    Joined:
    Dec 16, 2006
    Messages:
    763
    Likes Received:
    50
    That is so cool! I really need to learn 3D modeling.
  18. Scarecrow

    Scarecrow Member

    Joined:
    Sep 15, 2011
    Messages:
    33
    Likes Received:
    0
    Texturing Begins:

    [​IMG]

    Crow
  19. Scarecrow

    Scarecrow Member

    Joined:
    Sep 15, 2011
    Messages:
    33
    Likes Received:
    0
    Texturing nearly complete. There are a few minor pieces still to do I need to balance the tone on the legs with that of the hull as well, but it's nearly unfolding time.

    [​IMG]

    Crow
  20. Revell-Fan

    Revell-Fan Co-Administrator Administrator

    Joined:
    Aug 1, 2009
    Messages:
    5,891
    Likes Received:
    3,537
    That looks magnificent!

    Will the legs be movable?

    If I had a wish I'd ask you if you could make a LAATi transporter in the same scale when the AT-TE is finished, please. I've been looking for too long for that, and it would make a terrific diorama when displayed together.
