Can a tool be scratchbuilt/kitbashed?

Discussion in 'Scratchin' & Bashin'' started by shaygetz, Jun 26, 2005.

  1. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0

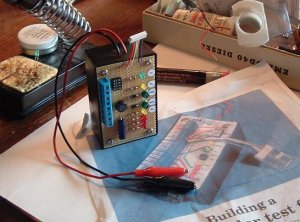

    While waiting for Walmart to decide whether it wants to take my railroad under its new found right of eminent domain, I put together this here DCC decoder tester based on an article in the Sept. '01 RMC, page 89-92. I made the "Plug-n-play" socket by modifying an 8 pin IC socket. I added a Digitrax wiring harness into the circuit because that is the dominate decoder in our club. I also went for an industrial look (read that: impress the guys at the club with my electronic prowess ;) ) by moving the components to the front rather than hide them behind the graphix. Provisions have been made for sound chip testing in the future with the addition of a speaker and four more terminals.

    I found this an easy electronics project to do having only done one other, a transistor throttle, and that over twenty years ago. It was my first using a perferated circuit board.

    Attached Files:

  2. b28_82

    b28_82 Member

    Joined:
    Jan 25, 2004
    Messages:
    449
    Likes Received:
    0
    so that's where that paper went :p
  3. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0
    Yep, got busted when Carol's E8 didn't run. When Bill found it was the decoder after much trial and error, I vowed to build this thing once and for all. No decoder comes to my shop without going thru this thing :thumb:
  4. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    I always admire you electronic whizzes. Looks to be way over my head Bob.
  5. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0
    See what I mean, just move them little doo-hickeys and whutzits to the front of the board and everybody thinks you're an electronics whiz. :thumb:

    Robin, I've found that, if I read the schematic just like a roadmap, it works out just fine...well, that and a good, hot soldering iron...and maybe a good, clean cotton sock to place in my mouth when the vile explicatives commenced to welling up within my innermost being ;) :thumb:

    A great website that helped me thru the tougher symbols>>> http://www.kpsec.freeuk.com/symbol.htm
  6. belg

    belg Member

    Joined:
    Apr 29, 2001
    Messages:
    900
    Likes Received:
    0
    Bob that link gets you a huge star, I saw something I wanted to make the other day but when I looked at the diagram I said forget it as I had no idea of what some of the symbols meant but with this link I'll be able to figure it out. Thanks alot Pat
  7. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0
    Grasshopper, you must learn to become one with the soldering iron. :D :D

    Avoiding the deep inhalation of vaporized flux also helps. :eek: :p :D :D :D

    I subscribe to the " thick book theory".....always carry a thick book, people will think you're smarter than you are.
    If that doesn't work.....wear a hard hat, coat and tie, and carry a clipboard... NOBODY will mess with you! :D
    Pete
  8. zedob

    zedob Member

    Joined:
    Dec 26, 2004
    Messages:
    795
    Likes Received:
    0
    That should be on a bronze plaque. Priceless!
  9. Pitchwife

    Pitchwife Dreamer

    Joined:
    Apr 24, 2001
    Messages:
    1,796
    Likes Received:
    0
    Pete, just wanted to let you know you have been added to my collection of great quotes. :thumb: :thumb: :thumb: :thumb:
  10. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0
    You're welcome, Pat...when do I get it? ;)

    Actually, I've found inhaling the vapors helps with my occasional 70s flashbacks...innagaddadaveda, baby :p

    Personally, I find that the plastic pocket protector raises my I.Q. at least 15 points. :thumb:

    Used the tester for the first time today...is it me or does Digitrax cross the white/yellow functions? The NMRA standard says white for front headlights and yellow for rear and danged if I don't wind up with just the opposite near everytime. Other than that, it works just peachy, I highly recommend it as a beginner project.
