Brill Motor Car drawings

Discussion in 'Getting Started' started by rlundy90, Oct 17, 2007.

  1. rlundy90

    rlundy90 Member

    Joined:
    Oct 2, 2007
    Messages:
    80
    Likes Received:
    0
    Hi. I was wondering if anyone knows where I can find drawings for a 1922 Brill Model 55 Moter Car. Thanks, Ron.
  2. hmas

    hmas Member

    Joined:
    Mar 22, 2007
    Messages:
    216
    Likes Received:
    0
    I might have something BUT is a Canadian model 55 the same as a model 55 as used on the SAR.
    when I find my way home I have a look & post it someone else may be able to tell
    Tony
  3. rlundy90

    rlundy90 Member

    Joined:
    Oct 2, 2007
    Messages:
    80
    Likes Received:
    0

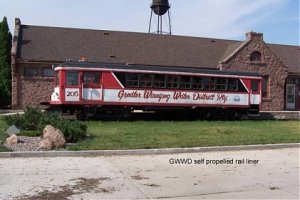

    Hi hmas. I'm not sure if they are the same or not.The one I want to model belongs to the Greater Winnipeg Water District railway. It was bought new in 1922 and is still in use today. Heres a couple of pics of it. One in the old yellow and black scheme and one in the new red and black. Was looking at some pictures of the original car just now, that were taken in the early 30's. There have been quite a few changes to the car since then.All or most of the windows are changed as well as the trucks. These look like they may be off an alco switcher.Thanks, Ron.

    Attached Files:

  4. hmas

    hmas Member

    Joined:
    Mar 22, 2007
    Messages:
    216
    Likes Received:
    0
    Hi Ron
    snap
    Looks like Brill did the model T in railcars opposite sides of the world & they look the same.
    Tony

    Attached Files:

  5. hmas

    hmas Member

    Joined:
    Mar 22, 2007
    Messages:
    216
    Likes Received:
    0
    well almost the same
  6. rlundy90

    rlundy90 Member

    Joined:
    Oct 2, 2007
    Messages:
    80
    Likes Received:
    0

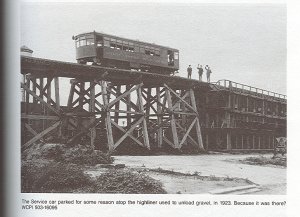

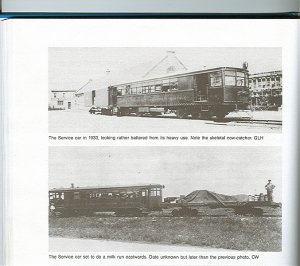

    That car is almost identicle. Where was it taken? It looks like a nice original Brill car. The only difference I can see is the length of the hood where the radiator sits. It may just be that it is a bit newer model with different engine.The one I am modelling is actually made by Service Motor Truck Co. from Wabash, Ind. Brill designed the car in conjunction with Service and bought out the rights to the car in 1922. It was originally purchased for $16,000.00. Here are a few pics of the car in its original configuration. Seems Railroad Model Craftsman did an article on modelling these cars in the 2005 January issue. I will see if I can pick one up here as will cost me $14.00 from RMC. Too much for 1 article that may not even be what I am looking for. Thanks for the pics, Ron.

    Attached Files:

  7. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    There are Brill 55 drawings in the April 1985 Railroad Model Craftsman.
  8. Gary Pfeil

    Gary Pfeil Active Member

    Joined:
    May 8, 2001
    Messages:
    2,594
    Likes Received:
    0
    Hi Ron, That article was written by a friend of mine, Blake Tatar. So, it was one of the few issues I knew I could find easily! The article won't be of much help I'm afraid, as it details modifying and painting a brass model to represent an Erie railcar. Apparently there were no known color photos of this car, so he goes on for a bit about using tones of black and white photos to determine a shade of red (comparing to caboose photos, passenger cars photos, etc also in black and white) where color photos also exist. He adds quite a bit of detail but it may be specific to Erie. There are no drawings.

    In the event you are interested in info on the brass model, it is an MTS Imports model, in HO
  9. rlundy90

    rlundy90 Member

    Joined:
    Oct 2, 2007
    Messages:
    80
    Likes Received:
    0
    Thanks for the info on the drawings Ray. Turns out I just bought that issue with a bunch of other mags at a train show this weekend. Didn't even know I had it. The drawings are in O scale but I can resize them easy enough. Also door and window placement is different but as long as I have outside dimensions the rest should be easy. Thanks Gary for the info on that article. Would have just wasted my time looking for it. Thanks again everyone, Ron
  10. hmas

    hmas Member

    Joined:
    Mar 22, 2007
    Messages:
    216
    Likes Received:
    0

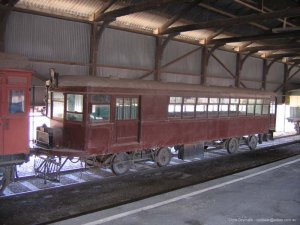

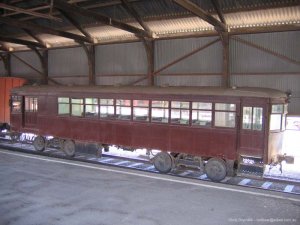

    The piccy is of a model 55 sitting forlornly at the rail museum.
    This page gives more info
    South Australian Railways Passenger Carriage Home Page Information
  11. rlundy90

    rlundy90 Member

    Joined:
    Oct 2, 2007
    Messages:
    80
    Likes Received:
    0
    Thanks for the link hmas.Reading the description it sounds like exactly the same one I am modelling. Looks like a nice museum. Ron.
  12. nkp174

    nkp174 Active Member

    Joined:
    Oct 11, 2006
    Messages:
    1,549
    Likes Received:
    0
    Hmm...I recall an article about building a Brill Car from scratch in an old issue of MR...

    Ah yes...July 1998...pg 98...but it is a Model 350. Regardless, that might help you in construction.
  13. rlundy90

    rlundy90 Member

    Joined:
    Oct 2, 2007
    Messages:
    80
    Likes Received:
    0
    Thanks nkp174. I will look for that issue.Ron
