brige elevation

Discussion in 'Scratchin' & Bashin'' started by belg, Sep 1, 2003.

  1. belg

    belg Member

    Joined:
    Apr 29, 2001
    Messages:
    900
    Likes Received:
    0

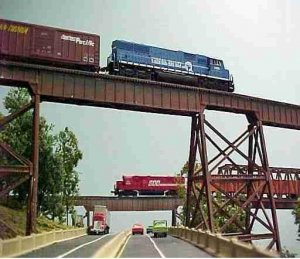

    I'm trying to build a bridge accross a double loop and a spur that runs to the coal yard, the height is 4.5 to 5" above the lower track because of the grade loops.I'm wondering what is the maximum height a plate girder bridge could like the one I'm attaching below and how far in between supports would be acceptable. I borrewed the picture from one of our members and thank him for that.

    Attached Files:

  2. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0
    The record length is one that passes over a blvd. in Chicago at about a 45 degree angle. It's the USA's longest plate girder bridge at 150'.
  3. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Belg, the NMRA standards will help you to decide. I believe the minimum space between rail head and the base of the bridge is 3 inches in HO scale. If the height of the track over ia at 4.5 then the bridge would have a size of 1.5 inches times the length.
    Check out
    NMRA
  4. Mike R

    Mike R Member

    Joined:
    Jan 18, 2002
    Messages:
    256
    Likes Received:
    0
    Belg, as Robin notes, the NMRA info will help. It is actually the A.R.E.A. prototype engineering standard.

    Keep in mind that the prototype RR engineers generally used as many support towers as feasible, in order to cut down on depth of girders, and therefore contain material cost without sacrificing strength.Towers were a lot cheaper than extra-deep girder assemblies.
    For example, on a 30 foot span, ( for E70 loading ), they only needed a girder depth of 5'9", but for a 110 foot span, they needed a girder depth of 10 feet !

    The prototype freely mixed different sizes and kinds of bridges to cross odd spans, much more so than we tend to do on our model railroads. So they would throw in a short through-girder in a series of deck girder spans, just to provide a specific situational clearance.
    It was also common to see two or even several different tower designs in the same structure.
    good luck & regards
    Mike:D
  5. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0

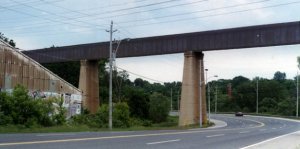

    Belg, here's a shot of a deck girder bridge spanning Pottery Rd. in Toronto. Sorry I didn't get the pier on the right in the shot, but as you can see it spans 4 lanes. Hope it helps.

    cheers
    Val

    Attached Files:

  6. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,135
    Likes Received:
    0
    I read once that one design goal for a bridge is that the cost should be split 50-50 between the supports and the bridge. That would make an interesting study. Even more interesting to apply it to your modelling. :D
  7. scoobyloven

    scoobyloven Member

    Joined:
    Jan 13, 2002
    Messages:
    317
    Likes Received:
    0
    your welcome for that shot, as for that bridge i have removed it from the layout do to a 2nd track on the main line on that part. but it got a new home on the southern end of the layout as the branch line runs out of the mountans and joins the main line
