    I'm building a 30" by 60" layout in the living room of my condo. It's a one-way loop along city streets with a line crossing. I will have overhead, but I'm not that stage yet.

    I have soldered my rails and I'm started paving the streets.

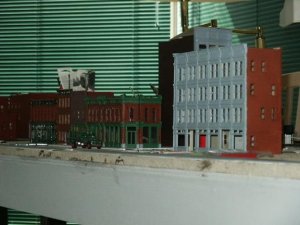

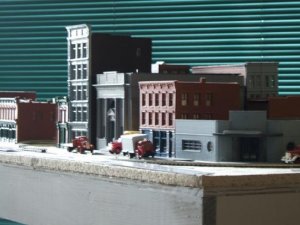

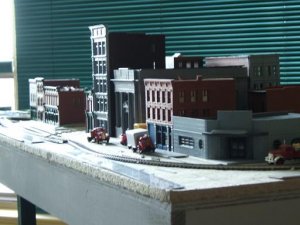

    Here's three older photos from last year when I was sizing up building positioning.

    I'll post more photos later.

    Attached Files:

  2. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    GREAT!!!!!.
    Your vehicle`s tell me you are in the 40s to 55 era is that about right Bill?.


    Hey I see a bus station too, nice.
    I love it, Are you planning on taking this to shows?
  3. bill937ca

    bill937ca Member

    Joined:
    Jan 16, 2007
    Messages:
    203
    Likes Received:
    0
    Yes. It's the 1950s.

    I have several Bowser PCCs which were painted and decaled by Customtraxx. With these PCCs the timeline could be anytime from 1947 to today as several of the prototype Philadelphia cars that the Bowser PCC is based on now run in San Francisco on the F line.

    The single trucker is a Model Power TTC class F car of a type retired from passenger service in 1925.

    This my first layout. I had never built a layout before.

    Some details on the layout itself. It's 1/2 inch plywood under 1/2 inch Homasote.

    Sidewalks are Smalltown USA and painted Polly Scale Aged Concrete. Incidentally these Smalltown USA sidewalks can make good station platforms. They are scored on the back and can easily be cut in half lenghtwise for a narrower walk. Evergreen Strip styrene #149 strips are glued to the Homasote along the what will be the curb line and #167 strips at the rear of the sidewalk. Then the Smalltown USA sidewalk pieces were glued on top of the strips.

    Most of my track is Atlas flextrack. I have used Orr crossings and Orr girder rail on the cross street. Even with the Orr bending tool I found curving rail by hand less than productive so i decided just to use flextrack so I can get some cars running by summer (hopefully).

    The cross street is based on 4th Ave in Pittsburgh. It was really a two lane street with a streetcar track down the middle, although officially I think it was an 8 foot parking lane, 10 foot traffic lane and another 8 foot parking lane. Building wall to building wall is less than the length of a 46' PCC car, which makes for an interesting sight line.

    The white patches are where I have started to pave the streets with Sculptamold. I'm working in small areas at a time. I will paint the streets a mix of Polly Scale Steam Power Black and Grimy Black to no particular formula (see Paving the Town by Robert Smaus, February 2004 RMC).

    I have poles from Jason's Brass Poles and will soon start drilling holes for the poles.

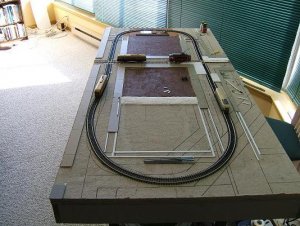

    I've attached two photos. One from each end of the layout. At one end of the layout there is an on-street loop and at the other end of the layout is an off street loop.

    I have another 30" x 60" table in storage that can be attached to this table to make a 30" by 10 foot layout. But I think the maximum comfortable layout would be 30" x 90". (2.5 feet x 7.5 feet). That's pretty big for a living room. If I go that far the off street loop would become a cutback loop and the line would be extended to a carbarn and L station complex (think Frankford and Bridge in Philadelphia) to give the line a transportation purpose.

    For now I'm just having fun with this little setup. Although the layout is on casters I don't really plan on taking it to shows. The compact size is in case I should ever move.

    Attached Files:

  4. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    You are doing it the right way Bill, I love those tight curves the Traction can handel,
    I drove PCC and CLRC also the ALRV for ten years,(TTC).

    This is going to be a very well detailed lay out, being "City" there is so much you can put in to it over time.

    One of Traction in Action gang moved to Brighton 3 years ago, Dave , He has a "Musuem " type layout in his basement and plans to do a small layout for the shows out your way.

    Like me he likes to scratch build the heavy electrics.

    Those bowser have a great motor now and do run well.

    Keep posting Bill as I though no one was doing traction , but there you go, you and Torpedo come in on day.

    Good stuff.:thumb:
  5. bill937ca

    bill937ca Member

    Joined:
    Jan 16, 2007
    Messages:
    203
    Likes Received:
    0
    Thanks Chris. I've passed on word of this forum to a couple of other traction fans who are building layouts or planning layouts.

    Now for a shameless plug. I have a Toronto Traction discussion group on Yahoo.

    http://finance.groups.yahoo.com/group/Toronto_traction/

    I'm surprised myself how many traction modellers there are.

    P.S. I know David too. I used to see him at the TTS meetings before I moved from Toronto and David moved to Brighton.
  6. hooknlad

    hooknlad Member

    Joined:
    Mar 28, 2005
    Messages:
    423
    Likes Received:
    0
    Bill, Hello and welcome to the Gauge. Very nice work you have there !!!
  7. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Thanks for dopping by Micheal keep popping in:wave:
  8. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    What a small world.
    I have been to a few TTS meetings over the years with Dave, Andy, Dave Morgan , and a few more.

    I have looked at the Yahoo group Bill, seem a great bunch.
  9. bill937ca

    bill937ca Member

    Joined:
    Jan 16, 2007
    Messages:
    203
    Likes Received:
    0
    It is a small world. I'm in touch with Dave Morgan and Andy Douglas pretty well every month.
  10. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Good to know, Dave Morgan must be settled in his new home now.
    If Andy is not walking the BRIM tell him you met Chris Walker here he will get a blast .
    :D
  11. bill937ca

    bill937ca Member

    Joined:
    Jan 16, 2007
    Messages:
    203
    Likes Received:
    0

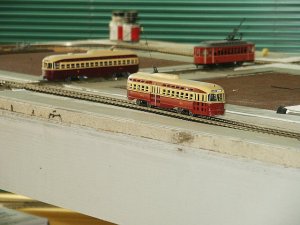

    Another photo from the second camera showing the streetcars.
