Bill Boards

Discussion in 'Scratchin' & Bashin'' started by GNRail, Jul 16, 2003.

  1. GNRail

    GNRail Member

    Joined:
    Jun 19, 2003
    Messages:
    94
    Likes Received:
    0
    I wanted to try scratching a couple of bill boards. Not quite sure where I'll use them but ran into a bit of a snag and thought I might check with the gang here.

    My problem

    Dimensions??

    Are there any standard sizes? typical sizes for city streets, highways, along the rails?
    Ratios of length to height etc?
    How high off the ground?
    How many supports for a given size?
    Walkways? Size of walkway?
    Lighting?

    I tried searching the web but couldn't find anything very useful.

    I model in N scale but dimensions in any scale (please give scale) including full size would be greatly appreciated

    Thanks

    Garry
  2. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Welcome to the Gauge
    I was looking at a real billboard GNRail. It looke to be about 6ft up from the ground and was about 20ft wide and 12ft high.

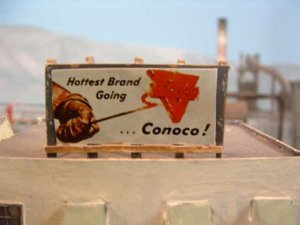

    This is one on my N gauge layout. I got it from a print in MR.
    It is 1 1/2inches wide and 3/4 of an inch high

    Attached Files:

    • bb.jpg
      File size:
      27.5 KB
      Views:
      214
  3. rockislandmike

    rockislandmike Active Member

    Joined:
    Nov 6, 2001
    Messages:
    1,290
    Likes Received:
    0
    There ARE standard sizes.

    http://www.outdoorbillboard.com/home/industry_basics.html

    14' x 48'
    10'6" x 36'

    I bought an Athearn Coca-Cola billboard myself, affixed a thin magnet to it, and then printed a number of different billboards on magnet sheets, so I can change them at will. Turned out pretty kewl I think. Hang on I'll see if I can't find a pic.

    [​IMG]

    This one is a Blues Brothers movie poster, which came out at the exact time of my layout. Definitely helps set the era.
  4. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Here is a photo of the real thing.

    Attached Files:

  5. GNRail

    GNRail Member

    Joined:
    Jun 19, 2003
    Messages:
    94
    Likes Received:
    0
    Thanks for the information. I really like the subject matter of the real thing.:cool:


    More questions. How do you print on magnetic sheets? Where do you find them? I like the idea of being able to change the sign, since I think a couple of these may end up on one of my N-Trak modules. It should keep them coming back for more!


    Garry
  6. rockislandmike

    rockislandmike Active Member

    Joined:
    Nov 6, 2001
    Messages:
    1,290
    Likes Received:
    0
    Most bigbox office/stationery stores should have them. I can't remember the brand name, but they're usually with the CD labels and other weird stuff that you can print on. Each package contains 15 or so "sheets" - one side you can print on (bright white), and the other side is magnetic. Simply print on the one side, cut them out, and they'll work just like a magnet.

    If I think about it, I'll check the brand name. Otherwise, your best bet might be to go to one of the above stores (Staples, Office Depot, etc.) and ask them about it. They should be able to point it out toot-sweet.
  7. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0
    It makes for a small rooftop billboard in HO and a nice size N scale roadside one. Cut a piece of styrene slightly larger than a standard business card and frame it with 1/8" Plastistruct channel on the bottom and both sides. Mount it in whatever manner you area commonly mounts them i.e. pilings, steel I beams. etc.. Now you have a changable billboard that you can place friends and business associates cards in, as well as print up your own on the 'puter.
  8. MagicMan_841

    MagicMan_841 Member

    Joined:
    May 10, 2003
    Messages:
    82
    Likes Received:
    0
    LOL this Jack Daniel's billboard is so funny! I'm scratchbuilding it right now. I made the sign in MS Paint and printed it on plain paper. then I cut a styrene piece to glue the paper on and painted the back black. Can I spray dullcote over the paper of is it going to make a big mess????
  9. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0
    Krylon makes a "Fixative" that is made to spray paper and keep the ink from running. I use it all the time and you can't tell it's there. You can overcoat that with anything you want. Most arts and crafts stores carry it.

    Don
