Benchwork and Clearance ???????

Discussion in 'FAQs' started by marty w., Jan 13, 2003.

  1. marty w.

    marty w. Member

    Joined:
    Jun 11, 2002
    Messages:
    562
    Likes Received:
    0
    Hi All,

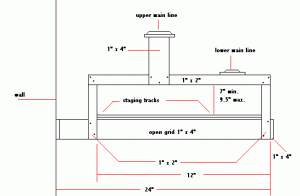

    The pic below shows the design for the benchwork that will have the hidden staging yard on the new layout. It's not to scale but hope you get the idea. I have a problem with my scanner and I did this with Paint.
    The front of the staging will not have a fasica board to allow for access. Do you think that 7" to 9.5" or 9" to 11.5" between the risers are enough? The reach is 12" max. This is HO scale.
    Thanks,
    Marty

    Attached Files:

  2. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,718
    Likes Received:
    0
    Scientific Calculation

    ?? Space required = height of track and roadbed + height of tallest car + thickness of forearm + safety margin??

    Andrew
  3. billk

    billk Active Member

    Joined:
    Jun 13, 2001
    Messages:
    1,192
    Likes Received:
    0
    Marty - How about making a full-size mockup, out of cardboard or something, and doing a "test-fit" on you and anyone else likely to be trying to access the various areas?
  4. shamus

    shamus Registered Member

    Joined:
    Dec 17, 2000
    Messages:
    3,688
    Likes Received:
    0

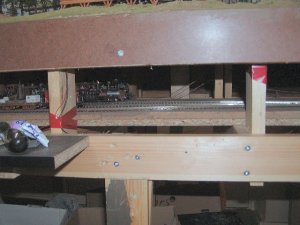

    Hi Marty, My clearance is 6", and it's plenty of room to get into.
    Shamus[​IMG]

    [​IMG]

    Attached Files:

  5. marty w.

    marty w. Member

    Joined:
    Jun 11, 2002
    Messages:
    562
    Likes Received:
    0
    Thanks Guy's!
    Shamus thanks for the pic!!! That is exactly what I needed.
    Thank You,
    Marty
  6. Lighthorseman

    Lighthorseman Active Member

    Joined:
    Jul 24, 2002
    Messages:
    1,387
    Likes Received:
    0
    Shamus! Are You Loafing??

    Good lord, man! Your hidden staging tracks aren't scenicked!

    DISAPPOINTED!! :D :D :D
