Bench Work

Discussion in 'FAQs' started by JR&Son, Mar 2, 2007.

  1. JR&Son

    JR&Son Member

    Joined:
    Dec 26, 2006
    Messages:
    113
    Likes Received:
    0
    Guys,
    Can I pull this off in 4 x 7 feet
    http://i142.photobucket.com/albums/r91/JRSON_photos/JRSONTry1.jpg
    Since the color does not show up.................
    The Mountain is in the upper left corner
    Most extreame left track goes OVER the mountain (shows triple black)
    Center track goes thru TUNNEL the mountain (shows red)
    The right track goes around the mountain (shows green)
    Top left hand corner shows 2 tracks going nowhere.
    Future expansion for a 4 X 3 feet fiddle yard

    JR&SON
    Owners Team Clueless Inc.
    Props. Red Mtn & Flat River RR
  2. Dansco

    Dansco Member

    Joined:
    Feb 26, 2007
    Messages:
    106
    Likes Received:
    0
    posible (with many alimitation)

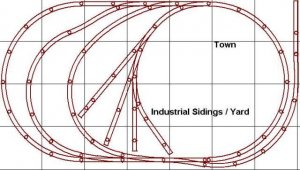

    How about this:

    22" minimum radius on out side loop
    18" minimum radius on all other curves

    Designed using RTS (free)

    The mountain is in the same place, and I only have one spur for future expansion.

    Due to grade limitations I think you will only get about 1 1/2 inch diffrence in the "over" vs "around" or "through" but since the tracks dont verticly overlap, youll be able to have the "over" cross over the "shoulder" of the mountain, the "around could go around the base of the mountain and the thru could go, well thru..

    Hope this helps (im a noobie btw, though I like to design)

    Attached Files:

  3. Dansco

    Dansco Member

    Joined:
    Feb 26, 2007
    Messages:
    106
    Likes Received:
    0
    Oh,
    I assumed HO scale
  4. JR&Son

    JR&Son Member

    Joined:
    Dec 26, 2006
    Messages:
    113
    Likes Received:
    0
    It is HO
    What is RTS

    JR&SON
  5. baldwinjl

    baldwinjl Member

    Joined:
    Apr 30, 2005
    Messages:
    410
    Likes Received:
    0
  6. Russ Bellinis

    Russ Bellinis Active Member

    Joined:
    Feb 14, 2003
    Messages:
    4,707
    Likes Received:
    0
    I think your plan is totally unworkable. You just don't have room for the necessary grades to make the separations. To get those three tracks at three different levels out of three adjacent switches and then back down at the three switches on the other side of the layout will demand that the grades be almost verticle walls.
  7. JR&Son

    JR&Son Member

    Joined:
    Dec 26, 2006
    Messages:
    113
    Likes Received:
    0
    The inner and middle line are actually the same grade level.
    The outer line is the "over" the mountian road.
    Im thinking a "cut" thru the pass, so that the look is right but the grade is not huge.
    Basically an inch to a max of 2 inches high "in the mountians".
    I have not figured out the grade, but over 4 feet it will only rise 1 to 2 inches.

    Will it work now?
    2 inch rise in 48 inches works out to 4% if Ive done the math right.

    JR&SON
  8. Squidbait

    Squidbait Recovering ALCO-holic

    Joined:
    Jan 27, 2007
    Messages:
    1,257
    Likes Received:
    0
    I'm not quite seeing what the point of having 1 siding rise and fall 2" is... it's kinda roller-coaster-ish, and doesn't really go anywhere.

    What do you want from your layout? 1 train running with a long mainline? 1 train with several "routes"? 2 trains? Switching?

    And why 4' x 7'? That's an odd size, and in your sketch you show a possible extension off one end. Are you trying to fit an existing table?
  9. Santa Fe Jack

    Santa Fe Jack Member

    Joined:
    Jul 20, 2006
    Messages:
    254
    Likes Received:
    0
    Grades aside, you have a major problem with the curves throughthe mountain. With only 4 ft of width, it's all you can do to have a single curve, like what you have drawn on the outside loop. You cannot have another loop go inside the mountain and double back. Try working with a compass and some graph paper, or with RTS, and you will quickly see that it can't work.

    Nevertheless, if you perhaps make the tunnel part another simple curve, like an inner loop, then it could work.
  10. JR&Son

    JR&Son Member

    Joined:
    Dec 26, 2006
    Messages:
    113
    Likes Received:
    0
    The over the mountain is more or less just a "cut"
    The bottom of the cut will actually be lower than the top of the tunnel.
    The tunnel and around the mountain are at the same level.
    2 mainlines will run, one clockwise one counter.

    The area I have is 4x7 with a possible addition on 3x4
    Hence my size constraints

    JR&SON
