Bashed Atlas Turntable Project.....

Discussion in 'Scratchin' & Bashin'' started by Iron Goat, Mar 1, 2007.

  1. ocalicreek

    ocalicreek Member

    Joined:
    May 4, 2005
    Messages:
    838
    Likes Received:
    0
    Works for me! Lookin' good!

    I'm curious to see what you do with the motor house...
  2. bigsteel

    bigsteel Call me Mr.Tinkertrain

    Joined:
    Dec 12, 2006
    Messages:
    1,380
    Likes Received:
    0
    cant wait to see it on your layout!--josh
  3. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Beautiful work Bob - I love the access hatch! :thumb:

    Val
  4. cnw1961

    cnw1961 Member

    Joined:
    Jan 8, 2006
    Messages:
    936
    Likes Received:
    0
    Bob, you turned the Atlas turntable into a real piece of art. Awesome job :thumb: .
  5. LNEFAN

    LNEFAN New Member

    Joined:
    Dec 15, 2005
    Messages:
    5
    Likes Received:
    0
    Questions

    I really like your project and its given me inspiration to try something similar. A few questions:

    1. What kind and dimensions of wood did you use?

    2. What is the origin of the cables/details used?

    3. Does this turntable use Code 100 or Code 83 rail? I use Code 83 so if it's 100 I'd need to make some sort of transition?

    Thanks-
    -Tom
  6. Iron Goat

    Iron Goat Member

    Joined:
    Apr 10, 2004
    Messages:
    577
    Likes Received:
    0

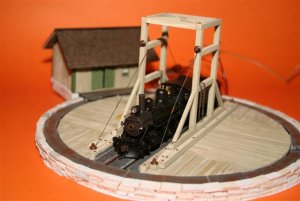

    Thanks, Tom... the stripwood used was .0208" X .125" X 11" sections (Basswood); and the wire that I used for the cable was some scrap steel wire left over from another project (I really don't have the wire dia. info, but the diameter is about half the thickness of the shaft of a straight pin) if I had to guess, I'd say about .0150" diameter wire; the four turnbuckles were "S" scale Grandt Line Turnbuckles; and the track on the Atlas T/T is code 100.

    You could use short pieces of code 100 for the approach, and storage tracks, and then a foot or so back down the approach track use a section of 100 - 83 transition track... that is what I am doing.

    The stripwood was stained with Driftwood weathering solution, and was attached to the T/T deck using GE II Silicone adhesive.... DO NOT use anything containing MEK of the deck, as it will come out of level (warp) badly. I heard that horror story from another modeller, and he sounded pretty convincing to me.

    Good luck in your modeling.... Bob sign1
  7. LNEFAN

    LNEFAN New Member

    Joined:
    Dec 15, 2005
    Messages:
    5
    Likes Received:
    0
    Thanks Bob! Looking forward to pics and commebtary on the shed modifications.
  8. Iron Goat

    Iron Goat Member

    Joined:
    Apr 10, 2004
    Messages:
    577
    Likes Received:
    0

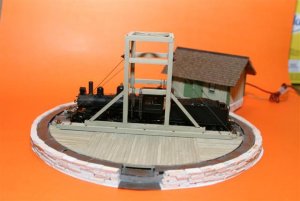

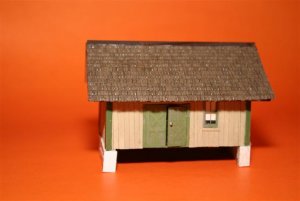

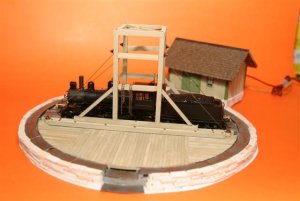

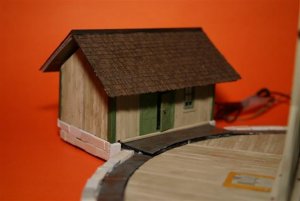

    Well, the shed is just about finished... I'll head for the train store tomorrow and pick up a chimney to "cap off" the roof, then I'll scratchbuild a coal bin on the side of the shed, do some weathering on the shed itself, stone walls, and the Law's gallows.... and that should do it until I get my locomotive service area benchwork completed.

    Bob :wave:

    Attached Files:

  9. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,631
    Likes Received:
    0
    That is great. Best looking Atlas tt I ever saw. :thumb:

    Loren
  10. Herc Driver

    Herc Driver Active Member

    Joined:
    Apr 19, 2005
    Messages:
    1,593
    Likes Received:
    0
    Wow it keeps getting better and better!!! Wonderful work.
  11. LNEFAN

    LNEFAN New Member

    Joined:
    Dec 15, 2005
    Messages:
    5
    Likes Received:
    0
    Excellent Bob! I agree, this is the best-and most straight forward- bash of the Atlas TT I have seen so far. As I mentioned before, its really given me the inspiration to attempt something similar. And your rendition of the shed looks great! I have a perfect spot on my layout for just such a project. Do add pics for us as it gains its final form and placement.Thanks!
  12. ocalicreek

    ocalicreek Member

    Joined:
    May 4, 2005
    Messages:
    838
    Likes Received:
    0
    BUY a chimney? After all that scratchbuilding? C'mon, I'd expect to see one hand carved from a section of stripwood! (still, on most of my scratch/bash projects one of the few purchased details has been, of all things, a chimney...)

    But seriously, looking fantastic!
  13. YmeBP

    YmeBP Member

    Joined:
    Dec 4, 2006
    Messages:
    586
    Likes Received:
    0
    all i can say is : jawdrop
  14. modelsof1900

    modelsof1900 Member

    Joined:
    Jul 29, 2005
    Messages:
    214
    Likes Received:
    0
    Bob, a very fine done job!

    Can I make a suggestion for a correction and an extention?

    - If you own use a smaller NBWs. I think these are a bit too large.
    - Add two wires (each side one) between the upright posts, so that the NBWs look like the ends of two clamps holding the posts fixed together.

    Only two ideas.

    Bernhard
  15. Iron Goat

    Iron Goat Member

    Joined:
    Apr 10, 2004
    Messages:
    577
    Likes Received:
    0
    Good call, Bernard ! I have wondered about the size on those 8 large NBW's ever since I used them on this model.... but I originally tried using the small NBW's that you also see in the photo, and it looked like the ones used for the cable needed to be larger.

    I think I'll look for someting slightly larger than the smaller of the two I am presently using, but the only thing I could originally find were these two sizes. I may have to try S scale detail parts. Any ideas ???

    Thanks for your input... Bob
  16. modelsof1900

    modelsof1900 Member

    Joined:
    Jul 29, 2005
    Messages:
    214
    Likes Received:
    0
    Bob,

    look for Precision Scale Co. parts, that you can find also in Walthers online Catalogue. Make a search for NBW there. Precision Scale has really good NBWs in plastic and brass. I prefer brass because the greater stability.

    Bernhard
  17. Iron Goat

    Iron Goat Member

    Joined:
    Apr 10, 2004
    Messages:
    577
    Likes Received:
    0
    Thanks, Bernard... I'll order some.

    Bob
  18. LNEFAN

    LNEFAN New Member

    Joined:
    Dec 15, 2005
    Messages:
    5
    Likes Received:
    0
    What does NBW stand for?
  19. Iron Goat

    Iron Goat Member

    Joined:
    Apr 10, 2004
    Messages:
    577
    Likes Received:
    0
    That's NUT, BOLT, WASHER.... in plastic or some brass.

    Bob
  20. MadHatter

    MadHatter Charging at full tilt.

    Joined:
    Jan 27, 2007
    Messages:
    1,077
    Likes Received:
    0
    LOOKS GREAT, very neat woodwork.
