Base for buildings?

Discussion in 'Modular Layout Forum' started by berraf, Apr 27, 2007.

  1. berraf

    berraf Member

    Joined:
    Oct 29, 2006
    Messages:
    282
    Likes Received:
    0
    How do you make your foundations for buildings on modules that you visit meetings with?
    Any tip of the day would be highly appreciated :)
  2. railwaybob

    railwaybob Member

    Joined:
    Jun 16, 2003
    Messages:
    438
    Likes Received:
    0
    I don't know exactly what you mean but you have the choice of either gluing them to the module, or leaving them loose and lifting them off the module every time you take your modules down.

    For gluing them on the module, you can use, white glue, carpenter's glue, polyurethane glue, no-more-nails, etc. I think it all depends on what you're gluing down and which glues you're more comfortable with.

    Bob M.
  3. berraf

    berraf Member

    Joined:
    Oct 29, 2006
    Messages:
    282
    Likes Received:
    0
    Sorry, I need to be more precise :)
    Since the buildings need to be transported separately when going to an exhibition I need a good way to mount them back on the modules.
    I believe that I need some kind of base to mount them on and I wonder how you do it?
    I don't know if anyone could understand what I mean cause my english is bad and I don't have enough words to explain myself :cry:
  4. Gary S.

    Gary S. Senior Member

    Joined:
    Oct 13, 2005
    Messages:
    1,694
    Likes Received:
    0

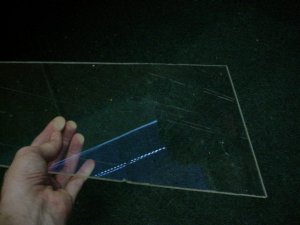

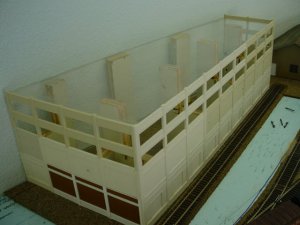

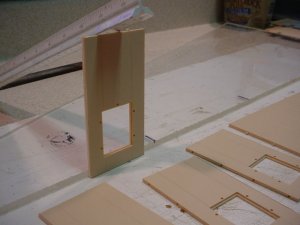

    Here is something that may or may not be of use to you. For my larger structures, I have been using plexiglass. It just so happens that I am starting a new structure today. Here are 2 photos, plus 2 more photos of another building I started a few weeks ago.

    Attached Files:

  5. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,634
    Likes Received:
    0
    I think what Berraf is trying to get at is a foundation to reattach the buildings to when he gets to an exhibit and sets up. Is that correct, Berraf? Off hand I have no idea what to do.

    Loren
  6. berraf

    berraf Member

    Joined:
    Oct 29, 2006
    Messages:
    282
    Likes Received:
    0
    That's correct. Thanks for your help
  7. Gary S.

    Gary S. Senior Member

    Joined:
    Oct 13, 2005
    Messages:
    1,694
    Likes Received:
    0
    What is wrong with gravity? When you set up the module, you set the building on the module, and gravity holds it down.

    My buildings are not going to be attached to my shelf layout. Now, the concern is, how do I make the buildings look like they are "not just set there"? I am thinking maybe I will put Seran plastic wrap tightly around the bottom of the buildings when I do the scenery right up against the buildings. I let it dry, then I take up the building, remove the Seran wrap, and then there is a "socket" that the building will fit right in to.

    Anyone see problems with this idea?
  8. ddavidv

    ddavidv Member

    Joined:
    Oct 22, 2003
    Messages:
    197
    Likes Received:
    0
    This is a mobile module we're talking about. I have two; one built each way. The one with the 'loose' buildings is a PITA. I have to carry extra boxes with the structures in it and handle the structures a whole lot more, which tends to lead to damage. The one with attached buildings I just set up and run trains in minutes, and it only requires one trip to the truck. :)

    So, how to attach? The attached module uses plastic kits that came with bases. I just cut them down as much as possible and then hid them under the scenery after gluing, then glued the structures to their bases. You can't even tell they have a plastic, kit base if done with any care.

    The ones that don't come with bases, what I would do is add some strips of some material across the 'floor' of the building attached to the walls. The more 'grid' you have the more firmly you can attach the structure to the module. Then glue, or if you want them removable for repairs, screw up from the underside into the grid (this could be tricky unless you leave the roof off until this point).

    For transport you may find it a good idea to cover the more delicate buildings with a simple cardboard box that just sits over them. It will help protect bumping fragile details like antennas, rain gutters, etc.
  9. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,141
    Likes Received:
    0
    I use foamcore board (about 1/4" foam with paper on each side) as a base and have the building fixed to that. usually there is a bit of extra base and I put a little scenery on that to hide the joint or even to stick the building down. Then a bit more scenery on the layout to outline where it goes.
    Since I use cardboard buildings they stick to the foamcore easily; in fact, I started it when I used some as a construction base and the structure wouldn't come off.
    If the building doesn't have a floor, I use a bit of extra foamcore as a floor to keep it square.
  10. DavidB-AU

    DavidB-AU Member

    Joined:
    Feb 27, 2006
    Messages:
    52
    Likes Received:
    0
    The modules owned by our club were left with a vacant "footprint" of essentially flat roadway where buildings are intended to go. If absolutely necessary they can be exhibited without buildings. But the idea was so members could build whatever they want to sit on that space. In many cases home layouts have since been built with identical footprints so what sits on the home layout for 361 days of the year can appear in public twice a year. Buildings can be swapped around between exhibitions or even on different days of the same exhibition.

    Here's some examples of one recent module.

    [​IMG]
    The basic module with only one building (built by me) in place for a test fit.

    [​IMG]
    2006 exhibition

    [​IMG]
    2007 exhibition, different shed

    Cheers
    David
  11. berraf

    berraf Member

    Joined:
    Oct 29, 2006
    Messages:
    282
    Likes Received:
    0
    DavidB-AU, thanks for your pictures and tip!
    60103, thanks for your tip about foamcore!
    ddavidv, great tip about the cardboard box!
    Gary S, gravity is good :)

    Now I have some good tip to work with
