    Hi all!

    Having a break from B-737, I started designing of BAe-146.
    Model is scaled up to 1:36 (2x1:72) to get a better resoults.

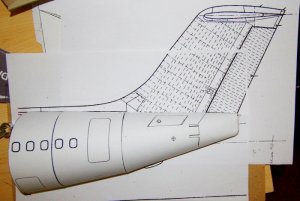

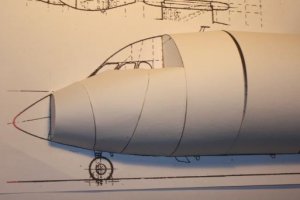

    And here are some photos...

    Best regards to all designers!

    Cybermac:wave:

    Attached Files:

  2. Cybermac

    Cybermac Member

    Joined:
    Jan 29, 2006
    Messages:
    156
    Likes Received:
    0
    w-f

    Hi all!

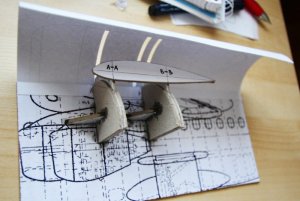

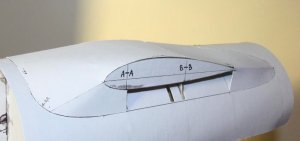

    Now I am working on wing-fuselage section.
    To do that I made a special structure. I will try to stretch the cardboard to get the exact shape.

    Best regards! :wave:

    Attached Files:

  3. GarageSymfony

    GarageSymfony New Member

    Joined:
    Jun 28, 2007
    Messages:
    20
    Likes Received:
    0
    Outstanding, Cyber. I can't wait to see more of this one.
  4. Cybermac

    Cybermac Member

    Joined:
    Jan 29, 2006
    Messages:
    156
    Likes Received:
    0

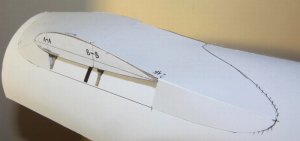

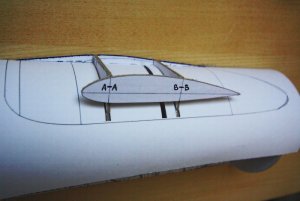

    w-f_part_2

    Hi all!

    Thanks for your kind words GarageSymfony:thumb:

    And here it is...
    (just some small adjustements on the back and should be OK)

    As I remember it took me almost a year (!!!) to make a similar part fot B-737, now just a couple of days... Hurray!!!:mrgreen:

    Best regards!

    Cybermac:wave:

    Attached Files:

  5. Ponytail

    Ponytail Member

    Joined:
    Jul 9, 2004
    Messages:
    89
    Likes Received:
    0
    Hello Cybermac,
    That's what you get when one becomes an experienced, talented and gifted designer.... and you're still growing!
    Looks very sharp.
    Will the final model be upscaleable till say around 1:33 ?

    Greetings
    PT
  6. Cybermac

    Cybermac Member

    Joined:
    Jan 29, 2006
    Messages:
    156
    Likes Received:
    0
    1:33

    Many thanks Ponytail!

    Yes - the model will be upscaleable till 1:33:thumb:

    My main target is 1:72 (because of small room, small laptop and small printer:mrgreen:), but as all my BAe-146 design is being done in 1:36 there shouldn't be any problem to do 1:33 if only somebody will be interested.

    By the way here is the lenght of the model (BAe-200/RJ85):

    1:72 - 39.72cm
    1:36 - 79.44cm
    1:33 - 86.67cm

    Best regards!

    Cybermac:wave:
  7. Cybermac

    Cybermac Member

    Joined:
    Jan 29, 2006
    Messages:
    156
    Likes Received:
    0

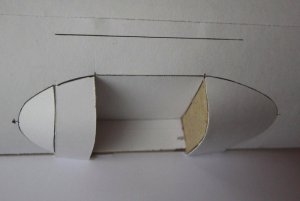

    main gear cover

    Hi everyone!

    I have just managed to do the maing gear covering parts which are looking just like here...

    Cybermac:wave:

    Attached Files:

  8. Cybermac

    Cybermac Member

    Joined:
    Jan 29, 2006
    Messages:
    156
    Likes Received:
    0

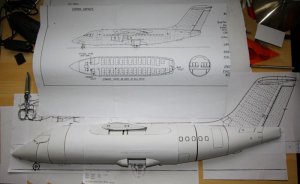

    Fuselage

    Hello!

    For the very first time I put together all pieces of the fuselage and it is... REALLY BIG!:mrgreen:

    It is more than 70cm long and is almost as long as my desk!:)
    (the drawing on the top is 1:72)

    Cybermac:wave:

    Attached Files:

  9. Cybermac

    Cybermac Member

    Joined:
    Jan 29, 2006
    Messages:
    156
    Likes Received:
    0

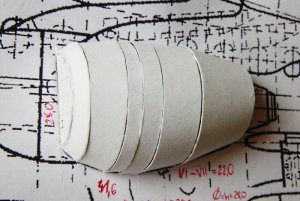

    engine

    Hello everyone!

    Here is the engine with its special oval shape.
    (The middle three sections will become the one piece with a two cuts from the bottom after I will do some 'digital magic':mrgreen:)

    All the best!

    Cybermac :wave:

    Attached Files:

  10. imkool

    imkool New Member

    Joined:
    Apr 24, 2011
    Messages:
    5
    Likes Received:
    0
  11. F131

    F131 Member

    Joined:
    Mar 27, 2008
    Messages:
    475
    Likes Received:
    1
    Very impressive.
