Anybody know what radius curve should come off a Atlas #6 Turnout to get it to run parallel with the main track? I know it has to be more than 19. Is that why they make flex track? I'm using code 80 if that makes a difference.
Atlas #6 Turnout
- Thread starter nolink5750
- Start date
Adjustable but...
You can adjust the radius with flex but since you asked, here are some measurements:
2" separation between parallel track (good for fat fingers): 45 3/8" radius with a 7 17/32" straight piece attached to the turnout
1 1/2" separation between parallel track (NMRA recommended distance): 30" radius that is 4 31/32" long with a 2 9/16" straight piece attached to the turnout

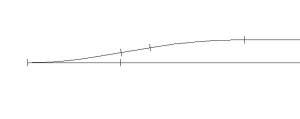

Best bet - stick a 2" straight on the end of the turnout and use a piece of flex to create the curve (at least 5 inches long) as well as the parallel track section 1 1/2" away from the other track coming out of the straight end of the turnout. You should end up with about a 38" radius doing it that way without having to eyeball in thirty seconds of an inch...
PS: Calculations based on the reported Atlas Code 80 #6 turnout having a 26" radius turnout. The #4 is reported as having a 18" radius turnout.
You can adjust the radius with flex but since you asked, here are some measurements:
2" separation between parallel track (good for fat fingers): 45 3/8" radius with a 7 17/32" straight piece attached to the turnout
1 1/2" separation between parallel track (NMRA recommended distance): 30" radius that is 4 31/32" long with a 2 9/16" straight piece attached to the turnout
Best bet - stick a 2" straight on the end of the turnout and use a piece of flex to create the curve (at least 5 inches long) as well as the parallel track section 1 1/2" away from the other track coming out of the straight end of the turnout. You should end up with about a 38" radius doing it that way without having to eyeball in thirty seconds of an inch...
PS: Calculations based on the reported Atlas Code 80 #6 turnout having a 26" radius turnout. The #4 is reported as having a 18" radius turnout.
More ideas...

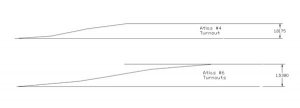

I just tried again but using some of my brother's MiniTrix sections with the Atlas turnout - Not going to happen. If have to do it with sectional pieces, change the #6 to a #4 and use an Atlas #2521 curve to get what is shown below.
I usually use #6's in N and HO as crossovers. To do it with the Atlas pieces, use two #6's and a 1 1/4" straight (#2503) to get what is shown above.
I just tried again but using some of my brother's MiniTrix sections with the Atlas turnout - Not going to happen. If have to do it with sectional pieces, change the #6 to a #4 and use an Atlas #2521 curve to get what is shown below.
I usually use #6's in N and HO as crossovers. To do it with the Atlas pieces, use two #6's and a 1 1/4" straight (#2503) to get what is shown above.
What I would do is take another turnout of the exact same type and hand and lay it down as if making a crossover (curved end to curved end), then trace where the rails go onto the roadbed. This gives you at least a compatible curve. You'll need flex track to match the curve.
If the spacing isn't wide enough for you, add some straight.
If the spacing isn't wide enough for you, add some straight.
