Another scratch-built gearbox.

Discussion in 'Scratchin' & Bashin'' started by Ray Marinaccio, Nov 19, 2003.

  1. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    While running my MDC Shay for the first time in years I noticed the motor smoking and decided it's time for the rebuild I've been putting off.
    Among other things I wanted to change that noisy primary gearbox.

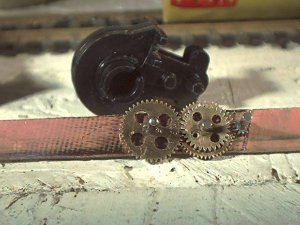

    I located suitable brass gears from an old syncronious motor that would give a 5.5/1 reduction and the right spacing between the input and output shafts.

    Attached Files:

  2. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

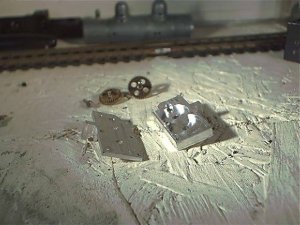

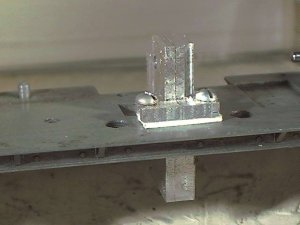

    The housing was milled from two pieces of 1"x1/4" aluminum strap.

    Attached Files:

  3. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

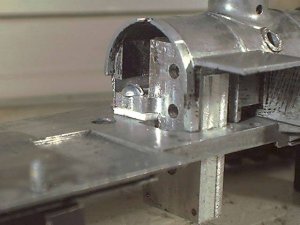

    This is how it will mount to the frame

    Attached Files:

  4. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

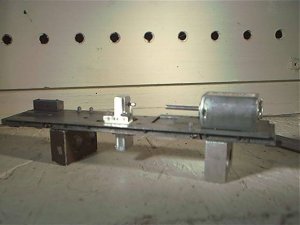

    I wanted to keep the new motor and all shafts centered on the frame centerline, so a little milling to the boiler was needed.

    Attached Files:

  5. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

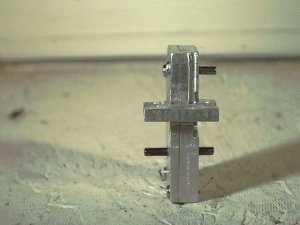

    I got all the holes tapped, bushings installed, lapped the gears and did some testing today.
    No more noisy gearbox. Just the purr from the Mabuchi can motor.

    Attached Files:

  6. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    The motor was out of a junk CD player, 15VDC.
    Total out of pocket expence so far. $0.00

    Attached Files:

  7. TrainClown

    TrainClown Member

    Joined:
    Apr 17, 2003
    Messages:
    897
    Likes Received:
    0
    So Cool Ray!

    It must be nice to have the machines you do, and be able to see the potential in parts and then build the missing bits.

    Way to go!

    Good work too.


    TrainClown ;)
