AgustaWestland heli, 1:36 - free downlaod

Discussion in 'Aircraft & Aviation' started by Bob43, Dec 10, 2012.

  1. Bob43

    Bob43 Model Designer Extrodinaire Cornerstone Member

    Joined:
    May 4, 2007
    Messages:
    278
    Likes Received:
    13
    Free AgustaWestland Da Vinci helicopter paper model, 1:36 I am much happier with this model than with my previous Eurocopter, which I will be improving over the next few weeks (months?)
    Can be downloaded from my site www.bobscardmodels.net76.net


    [​IMG]
  2. Zathros

    Zathros Guest

    Great Helo Bob, I added a picture for you. Love our website and your work! :)
  3. Bob43

    Bob43 Model Designer Extrodinaire Cornerstone Member

    Joined:
    May 4, 2007
    Messages:
    278
    Likes Received:
    13
    Thanks Zathros, it's of course a cheat - hovering with static rotors, my, my - what a plane!
  4. Zathros

    Zathros Guest

    I just opened up the .pdf, looks good and strong. If someone put some wire inside those rotors, you could almost make it kid proof. What child wouldn't want this to play with! :)

    Could I recommend the Sikorsky X-2 next?

    [​IMG]

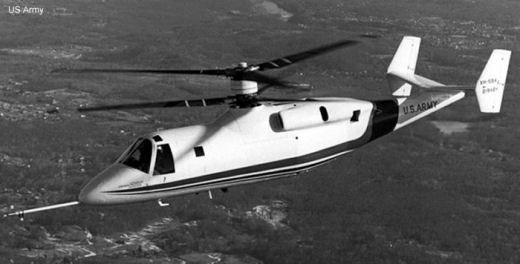

    or it's propgenitor the Sikorsky ABC:

    [​IMG]

    or even, the rarely spoken of Sikorsky X-Wing, where the rotor actually did stop rotating!:

    [​IMG]

    [​IMG]

    This last picture is the X-Wing mounted on the Sikorsky" RSRA" (RotorSystemsResearchAircraft), which has never been modeled. I did a lot of work on these. Very Hush hush at the time. It was designed so that it could blow off the rotor system if there was a problem and the craft could fl back down safely.

    [​IMG]

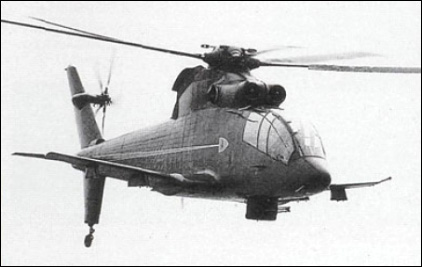

    There there is the Sikorsky Black Hawk, (not the Blackhawk). You don't hear of this one much:

    [​IMG]

    [​IMG]

    [​IMG]



    [​IMG]
  5. Bob43

    Bob43 Model Designer Extrodinaire Cornerstone Member

    Joined:
    May 4, 2007
    Messages:
    278
    Likes Received:
    13
    Zathros: so many possibilities, thanks for all the info (do I detect a Sikorsky fan?).
    About the rotors; in fact I glued top and bottom portion on to a 1mm breakfast pack carton, so the builder can chose whatever method he wants to strengthen the rotor.diameter of 30-31cm.
    I have re-called the Eurocopter, as I am not at all happy with it. It will remain blocked on my site until all corrections have been carried out.
    By the way, the rotor on the Agusta has also been corrected - it now has a
  6. micahrogers

    micahrogers Back from Beyond...

    Joined:
    Jul 12, 2012
    Messages:
    1,048
    Likes Received:
    282
    Okay now I really want the X-wing thing so cool
  7. Zathros

    Zathros Guest

    I worked on all those aircraft and some of them still are not quite ready for prime time. When you do see them, they will be in us.

    Maybe I'll bang out an X-Wing tonight. That used the Coanda principle to form an airfoil out of compressed air on the leading edges of the blades that were stopped.

    It would behoove you to do these often overlooked aircraft. The RSRA was a flying laboratory. :)
  8. micahrogers

    micahrogers Back from Beyond...

    Joined:
    Jul 12, 2012
    Messages:
    1,048
    Likes Received:
    282
    I love that AHX-80 in Navy livery no less
