    There is a 32 inch gap in the canyon section of my layout. Been thinking about how I will build it.
    First is a photo of the gap

    Attached Files:

    • b1.JPG
      File size:
      28.2 KB
      Views:
      930
  2. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Next I drew this sketch to see how it may look. A draftsman I am not.

    Attached Files:

    • b2.jpg
      File size:
      19.9 KB
      Views:
      948
  3. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Thanks for all the responses and ideas folks. I do have the book and get ideas from the Diablo Canyon Bridge. As Bill says, this is N scale and it will be built out of a combination of corrugated cardboard and cereal board. You are right Errol in that only the abutments will be fixed in place before the scenery is done. The bridge itself will then be installed.

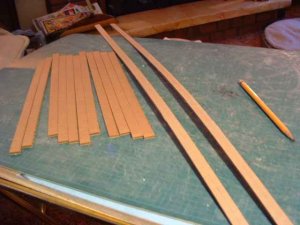

    The main beams are made of corrugated cardboard with a combination of with grain and cross grain. Here is the first step of cut pieces.

    Attached Files:

    • b3.jpg
      File size:
      32.4 KB
      Views:
      765
  4. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

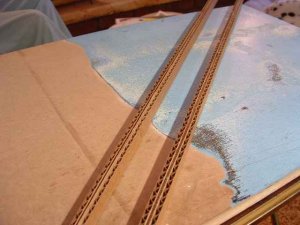

    Next comes laminating the pieces.

    Attached Files:

  5. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

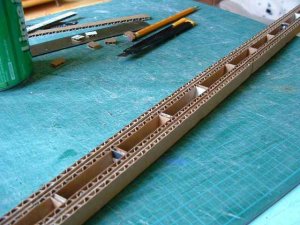

    Cross sections added

    Attached Files:

    • b5.jpg
      File size:
      29.4 KB
      Views:
      765
  6. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    The two main beams joined

    Attached Files:

    • b6.jpg
      File size:
      45.8 KB
      Views:
      756
  7. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Clark, the first thing is to have a very sharp cutting knife. I use one that has the break off sections of the blade. Make the first cut lightley, and take about 4 or 5 cuts a little harder each time then the corrugations don't crush or twist
  8. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

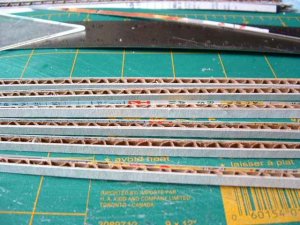

    Next I cut 3/16th inch strips of cerealboard and 1/8th inch cross grain corrugated cardboard. This is to make up some steel girders.

    Attached Files:

    • b7.jpg
      File size:
      44.5 KB
      Views:
      757
  9. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    I glued two of the crealboard strips to a corrugated strip to make up a girder.
    Here are a bunch ready to be used on the bridge.

    Attached Files:

  10. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Does your steel ruler have a cork back to it Dick? Mine does and doesn't slip
  11. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

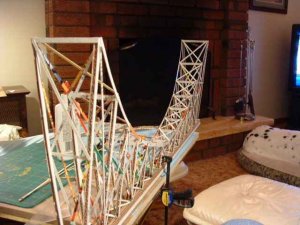

    The LPBs have been busy welding girders to the bridge frame.
    Next will come cross connecters and such.
    One huge benefit to us model railroaders is that we can build a bridge like this, up-side down.

    Attached Files:

  12. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Clark, I used some white glue that has been around a while and it is a bit thick. Only had to hold the girders in place a few seconds then they stayed where I put them.
  13. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

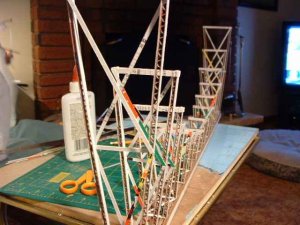

    Here I have started adding some cross beams and bracing.

    Attached Files:

    • b8.jpg
      File size:
      40.7 KB
      Views:
      651
  14. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    I don't know if I will add rivets Arl. Do you know a way of doing them?
  15. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Thanks Arl . I will try it
  16. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Thanks very much for you kind words folks.
    One of the benefits of N scale is that details are so small that they are almost invisible so it is quite OK to leave them out and as Shaygets says, one doesn't miss them.
    Here is the structure complete ready for painting.

    Attached Files:

    • b9.jpg
      File size:
      40.3 KB
      Views:
      485
  17. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

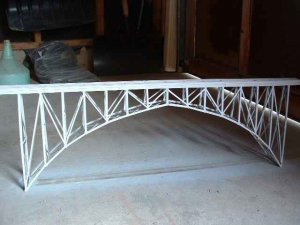

    OK you two Ron's I gave it a spray coat of grey primer and it has been turned over finally.

    Attached Files:

    • b10.JPG
      File size:
      33.3 KB
      Views:
      481
  18. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

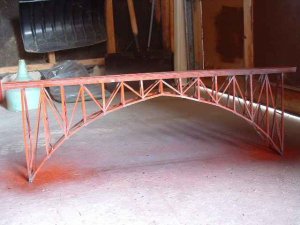

    No warping at all so next coat was red oxide primer.

    Attached Files:

    • b12.jpg
      File size:
      35.5 KB
      Views:
      477
  19. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

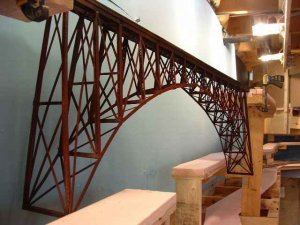

    Last I sprayed it with flat black. Just a light coat so some of the red still shows through.
    Here it is jerry rigged in place. Bridge abutments and scenery to be added before it is fixed in place.

    Attached Files:

    • b13.jpg
      File size:
      40.6 KB
      Views:
      481
  20. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Thanks very much folks. These projects are a lot of fun to build.
    shaygetz it is a single track bridge
