16 Volts gone awol

Discussion in 'FAQs' started by Why me, Apr 14, 2004.

  1. Why me

    Why me Member

    Joined:
    Mar 29, 2004
    Messages:
    365
    Likes Received:
    0
    post closed

    post closed
  2. billk

    billk Active Member

    Joined:
    Jun 13, 2001
    Messages:
    1,192
    Likes Received:
    0
    Sounds like somewhere there's a break in your circuit. If you can get a hold of an ohmeter (resistance measurer) you can use it to check parts of the circuit to narrow down where the break is (low resistance = OK, high resistance = you found it!).

    Instead of an ohmeter, you can rig up your own checker, using the power supply you already have (which sounds like it works).
    Run a couple of wires from it to a light bulb, buzzer, or anything that lets you know it is getting power. Then put parts of your circuit into the mix to see if they allow the light bulb or whatever to get power.
  3. jim currie

    jim currie Active Member

    Joined:
    Jun 29, 2003
    Messages:
    1,441
    Likes Received:
    0
    Why Me do you have two wires from xformer to turnout control switch and three wires to turnout coils from switch:confused:
  4. Why me

    Why me Member

    Joined:
    Mar 29, 2004
    Messages:
    365
    Likes Received:
    0
    :curse: :cry: Hi i have 2 sets of wire to run track 1 and track 2 indepenentdly ac and dc 2 of eatch tried all cominanition but no luck must be somthing silly that i am missing .mike
  5. jim currie

    jim currie Active Member

    Joined:
    Jun 29, 2003
    Messages:
    1,441
    Likes Received:
    0
    Why
    call me dense but is your basic wiring look like this or are you running 3 rail:confused:
  6. kettlestack

    kettlestack Member

    Joined:
    Jan 18, 2002
    Messages:
    898
    Likes Received:
    0
    A picture is worth a thousand words my friend.

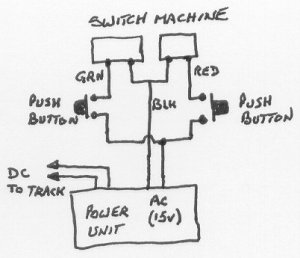

    This is what your wiring should be like to operate a switch machine.
    I found difficulty following your initial post.
    Excuse the crummy sketch (it was done in a hurry) :rolleyes:

    Errol

    Attached Files:

  7. Why me

    Why me Member

    Joined:
    Mar 29, 2004
    Messages:
    365
    Likes Received:
    0
    post closed

    post closed
  8. cidchase

    cidchase Active Member

    Joined:
    May 15, 2002
    Messages:
    1,640
    Likes Received:
    0
    Mike, I'm glad you got it running,
    and it's good to see you're keeping
    a sense of humor!!:D :D
    I'll bet that boy of yours is
    loving it!!
  9. Why me

    Why me Member

    Joined:
    Mar 29, 2004
    Messages:
    365
    Likes Received:
    0
    post closed
  10. DeaconF

    DeaconF Member

    Joined:
    May 3, 2003
    Messages:
    50
    Likes Received:
    0
    this forum

    As mentioned before - all the moderators should start to lobby the manufacturers to include this web site in the box. If I had know about you guys when I started most of my headaches would not have happened. I always leave here with good info. Thanks Frank
