0-6-0T & dockside?

Discussion in 'FAQs' started by twilight, Jan 29, 2004.

  1. twilight

    twilight Member

    Joined:
    Nov 25, 2003
    Messages:
    50
    Likes Received:
    0
    Can some one help me with what to do when my saddletanker or dockside is in a turnout and it loses power at the frog. I seem to remember reading a solution to this someplace, but I can't remember where???

    Twilight:)
  2. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0
    Try;

    1. Powering the frogs on your turnouts. Unpowered frogs leave too much of a power gap for short wheel base locos like saddletankers.

    2. Add wipers to any wheels that don't have them taking care to note the polarity of each side.

    3. Add sliders. These are wipers that go directly to the rail from the under carriage. They can be made from thin hardened copper or purchased from Walthers. Place them in front of and behind your drivers, thereby increasing the effective pickup length of the locomotives. Again note your polarity to prevent shorts.

    Hope this helps, BC
  3. Medicine Man

    Medicine Man Member

    Joined:
    Dec 18, 2003
    Messages:
    54
    Likes Received:
    0
    I added a slope back tender on all mine.After adding a set of pick-up wiper's to the rear truck of the tender,then wired to the brush tab's on the motor and I have never had a dead spot since .
    It may not be 100% true to prototype,but niether is a GIANT hand comming out of the sky to move the loco :D

    MM
  4. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0
    Actually, that's what happened to the B&O Docksiders in their later years...when rebuilt, they had their saddle tanks removed and slopeback tenders added. The Rivarossi 0-4-0 switchers are models of this particular rebuild.
  5. Medicine Man

    Medicine Man Member

    Joined:
    Dec 18, 2003
    Messages:
    54
    Likes Received:
    0
    WOW don't great mind's think alike!! Or is it a common solution to 2 differant problem's?

    MM
  6. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,135
    Likes Received:
    0
    Are your plastic frogs so long that both wheels lose contact, or does the frog lift one wheel up and the whole side rises?
    For number 2 you have a choice of replacing the drivers or deepening the bottom of the flangeway so that the wheel runs through. (Not too deep or you get different problems.)
    There is also the option of rebuilding the chassis to be more flexible. :D
    Didn't some of the railroads have small cars for the brakemen to ride? or is that just British? Would be an interesting alternative to the tender.
  7. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    If you didn't want the tender for one reason or another, you could always add pickup to any type of rolling stock. The catch is, you would always want the wipered rollin' stock coupled to the switcher.

    Ed: didn't see David's post, ya that would be cool! Maybe like an itty bitty caboose, a box on one truck.
  8. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,135
    Likes Received:
    0
    jon: the ones I'm thinking of look more like scale cars, a box on 4 wheels with footboards and handrails all around, maybe a toolbox in the middle.
    The shunters truck would be something that you would have an excuse for having hooked permanently to the loco.
    (Does anybody want to parse that last sentence and tell me what I said?)
  9. Medicine Man

    Medicine Man Member

    Joined:
    Dec 18, 2003
    Messages:
    54
    Likes Received:
    0
    I can picture exactly what you mean. Kinda like a heavy duty MOW speeder with out the motor,with a coupler on each end to hook up to the loco and the first car.Or it could look like a one truck flat car with a low profile seating/handrail's and a tool box of some sort in the center.

    Am I seeing it as you do???

    MM
  10. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0
  11. Medicine Man

    Medicine Man Member

    Joined:
    Dec 18, 2003
    Messages:
    54
    Likes Received:
    0
    BOY was I off on that one!! That "micro caboose" is a much better idea(the Little One's will like someplace out of the element's as well :) .

    MM
  12. Mike R

    Mike R Member

    Joined:
    Jan 18, 2002
    Messages:
    256
    Likes Received:
    0
    Another option for North American switchers, is to have an "idler" car attached, which could be equipped with pickup wipers.
    "Idler" cars were used to keep the heavy locomotive off spindly structures, ( like coalyard trestles and such ), or carfloat aprons.

    A decent candidate for an idler car is one of those old MDC shorty flats or gondolas that used to come in the "3-in-1" old-time kits.
    regards;
    Mike:p
  13. Medicine Man

    Medicine Man Member

    Joined:
    Dec 18, 2003
    Messages:
    54
    Likes Received:
    0
    I found those slider's that Shaygetz was refering to. In the Walthers catalog (HO) in the blue"freight" section. They are made by "Tomar". Part # 81-805 Shoes for Locomotives pkg(4) $3.95,is what you may need.

    I may get a few pkg's for myself to add to the cabees's for running interior lighting.


    MM
  14. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0

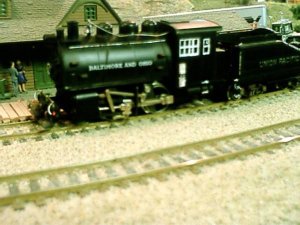

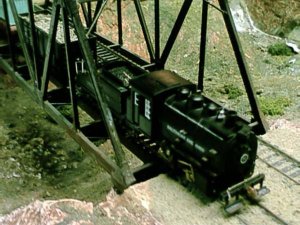

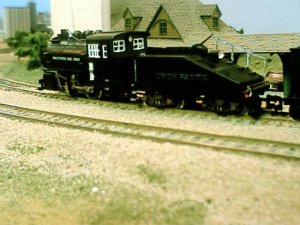

    Medicin Man's 0-6-0T Dockside

    Medicin Man asked me to post these here.

    :thumb: Nice one MM:thumb:

    Attached Files:

  15. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    :D :D :D

    Attached Files:

  16. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    :wave: :wave: :wave:

    Attached Files:
