My F-117 Nighthawk project post 1

A

abdullahsamir

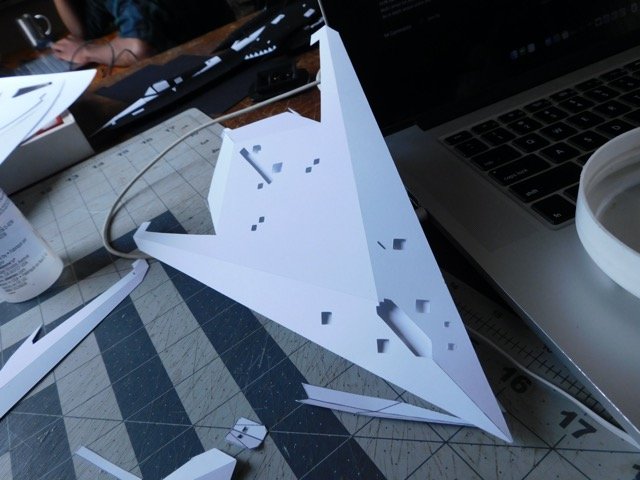

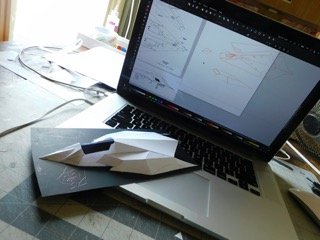

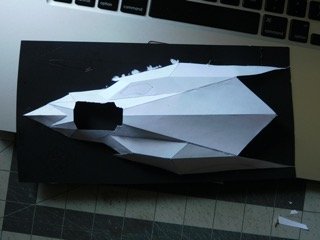

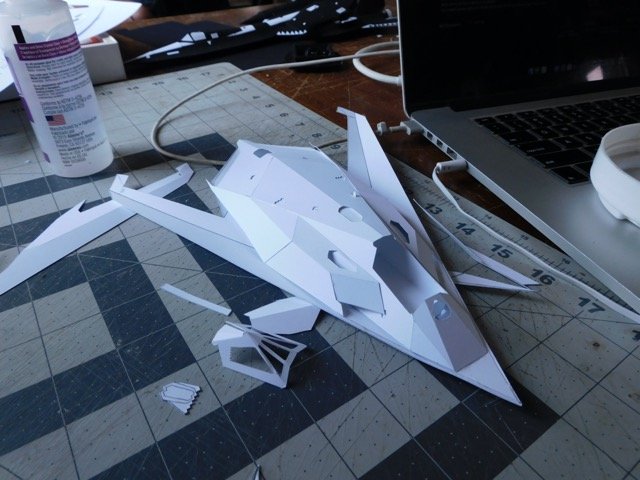

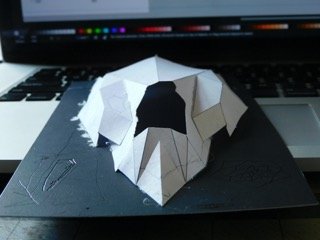

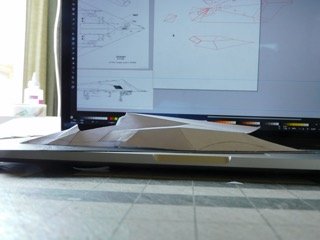

So I just trace the template onto printer paper, build a mockup, and repeat that about three times while tweaking the templates.
I will try to constantly update!!! I have made an f-117 but none of them was as good as this.

BTW!!! This is SUPER DUPER exiting for me as I have found a lugin PERFECt for making mig-15;s, 21,s f-14's, or any rounded plane!!!
it is built into inkscape and works like a charm: here it is!!!
github.com

GitHub - quirxi/SheetMetalCone: This is an inkscape extension to unfold a frustum (=truncated cone) or a cone (if cut diameter=0) and generate a sheet cutting layout or flat pattern projection that can be rolled or bend up into a (truncated) cone sh

This is an inkscape extension to unfold a frustum (=truncated cone) or a cone (if cut diameter=0) and generate a sheet cutting layout or flat pattern projection that can be rolled or bend up into ...
github.com github.com


Attachments

  • DSCN8916 Small.jpeg
    DSCN8916 Small.jpeg
    28.4 KB · Views: 6
  • DSCN8919 Small.jpeg
    DSCN8919 Small.jpeg
    20.8 KB · Views: 7
  • DSCN8918 Small.jpeg
    DSCN8918 Small.jpeg
    21 KB · Views: 7
  • DSCN8917 Small.jpeg
    DSCN8917 Small.jpeg
    21.3 KB · Views: 7
  • Like
  • Love
Reactions: Cybergrinder, zathros, mijob and 3 others
This is looking great! Thank you for the plugin. I'll definitely check it out. :)

I installed the plugin but it does not work on my machine. I have InkScale 1.2 on Windows 10. Is it working for you? If yes, what did you do to make it work?

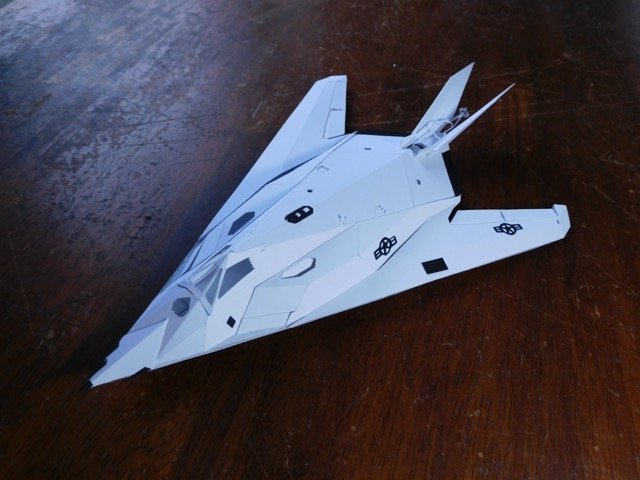

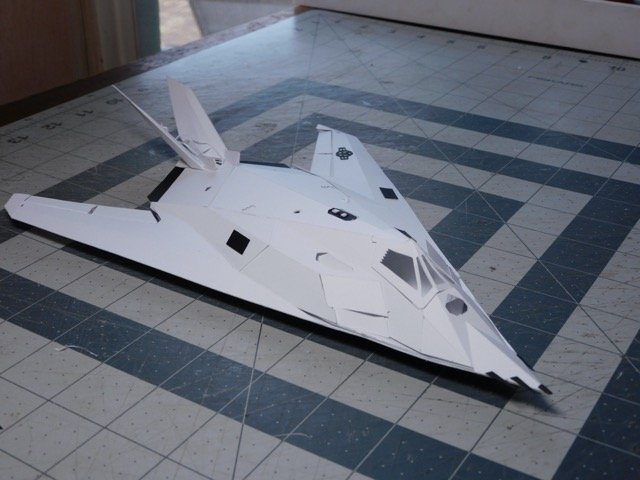

Still with the f-117, making every small detail is so fun!!!


Attachments

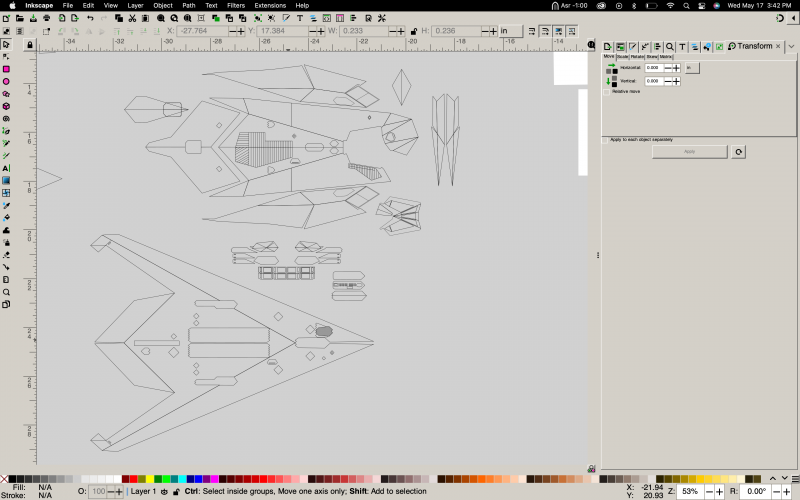

  • Screen Shot 2023-05-17 at 3.42.11 PM.png
    Screen Shot 2023-05-17 at 3.42.11 PM.png
    652.6 KB · Views: 8
  • Like
Reactions: Revell-Fan and mijob
Nice to see you find your way in working with inksvape. Your template is looking good.

Last edited:
The cockpit opening is crooked. Fix this stuff now, later it will be impossible. Looks good though. :)

That is absolutely AMAZING!!! You are doing a phenomenal job on these! :)

  • Like
Reactions: mijob
Excellent!! They look great. Interiors are nice, but if you darken the windows they aren't necessary..

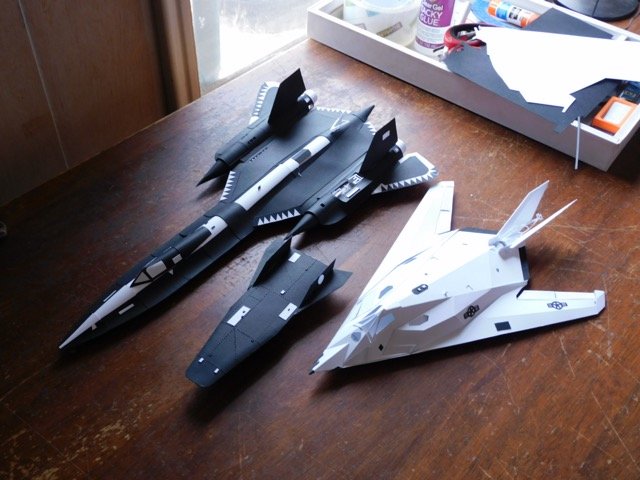

The scramjet is really nice. I'd like to see more pics of that and the SR. ;)
