Start as promised the model of an X-WING with movable wings and an interior view of the plane, of course with a build report.

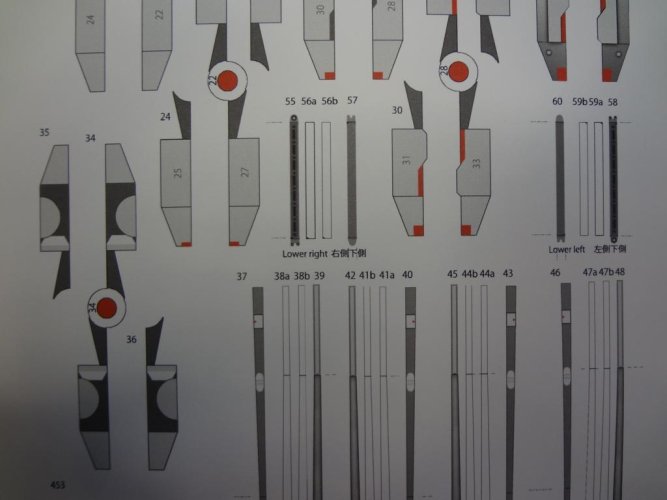

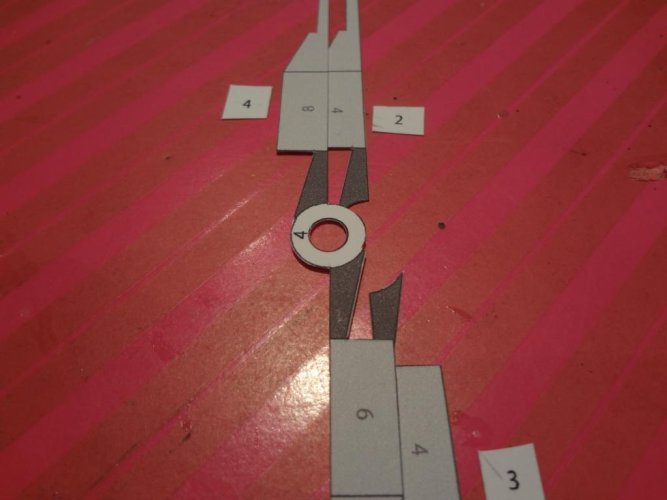

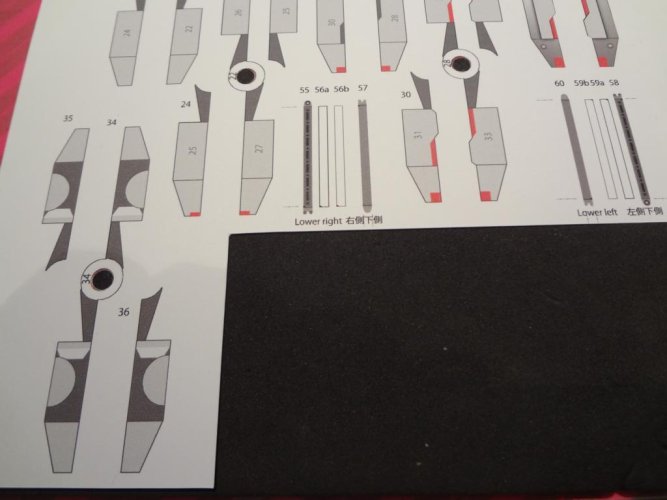

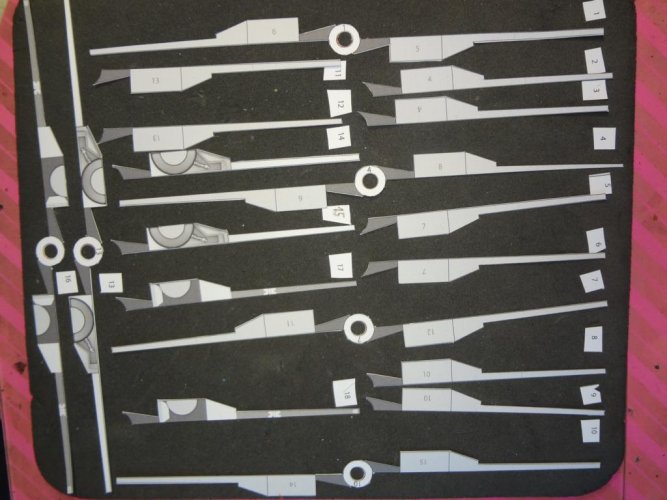

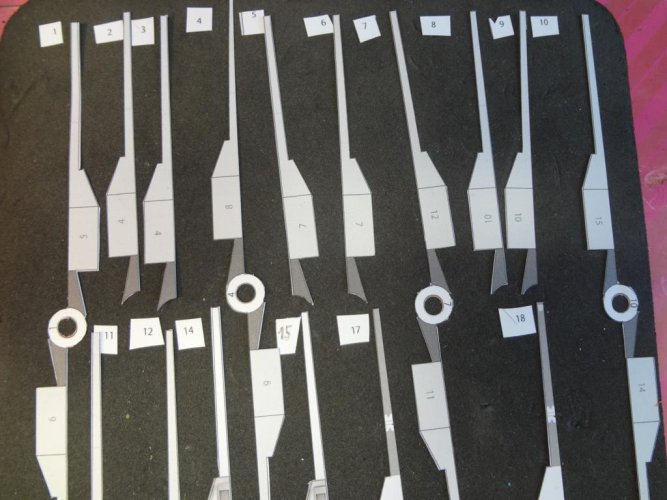

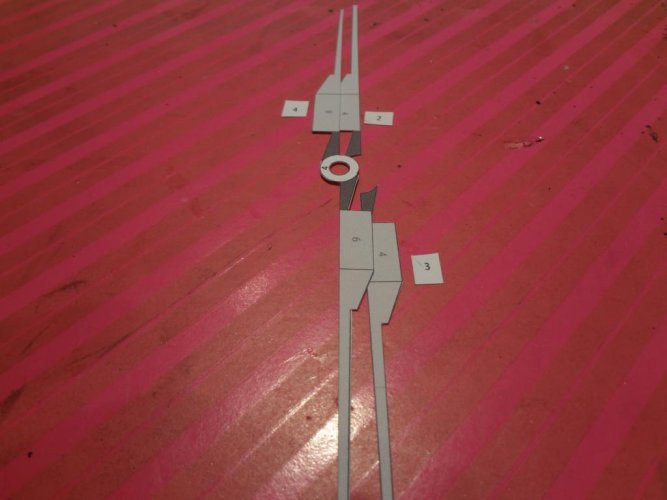

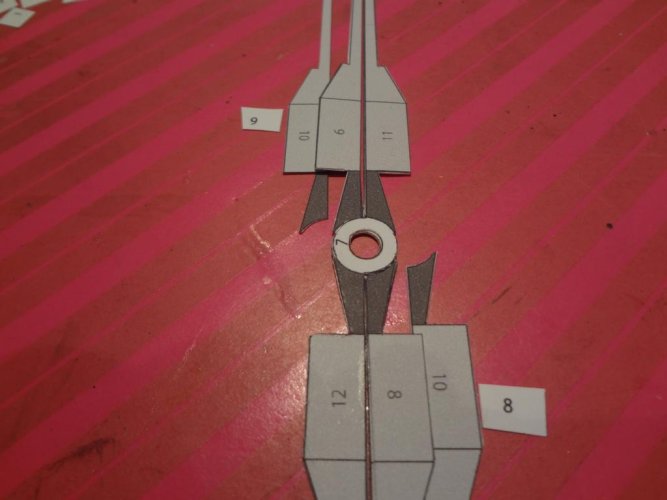

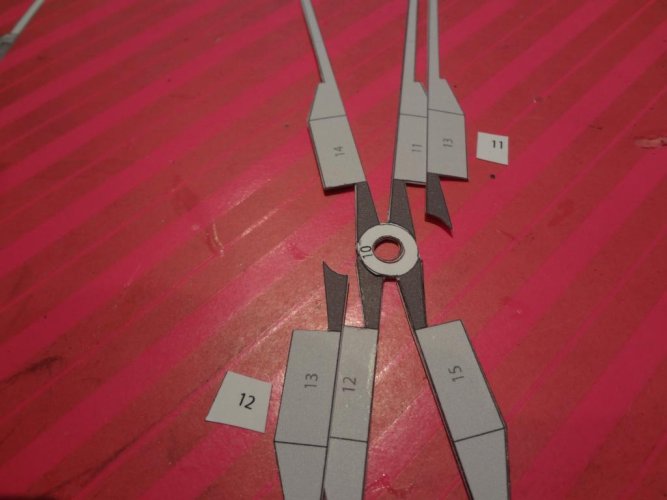

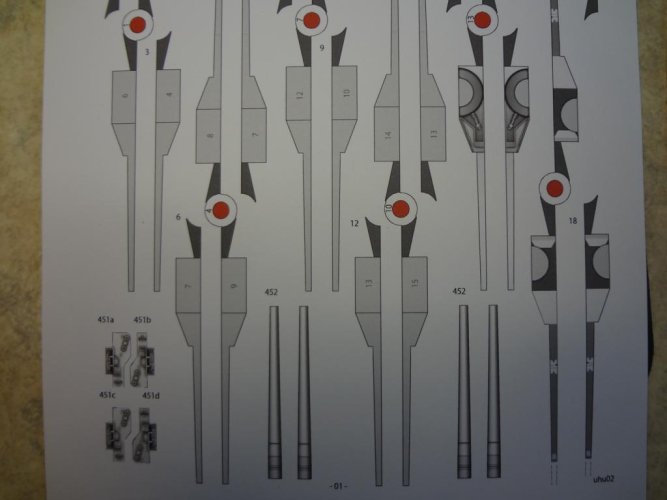

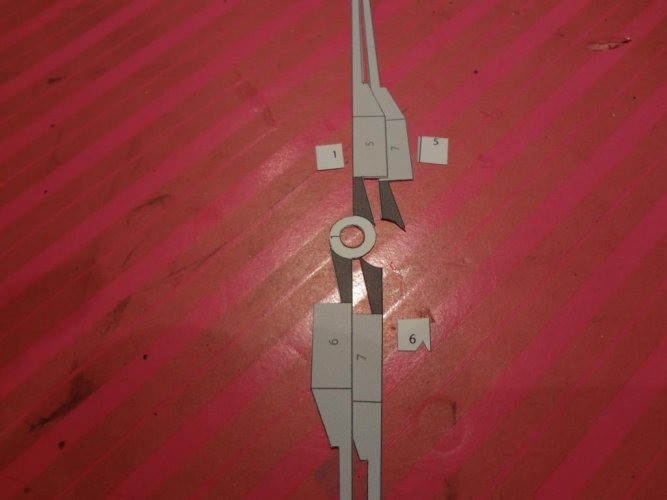

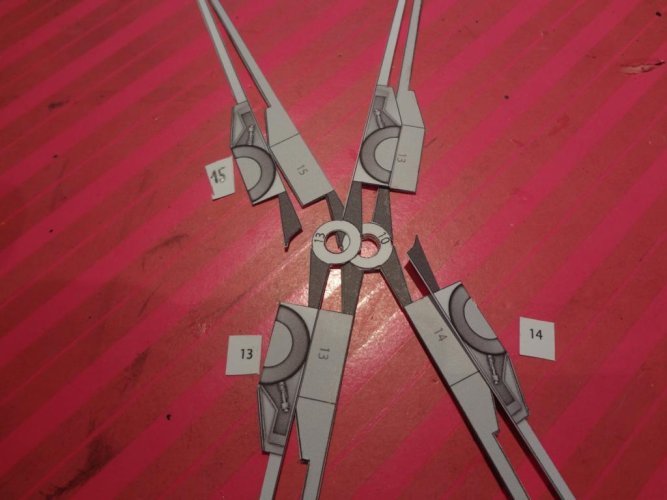

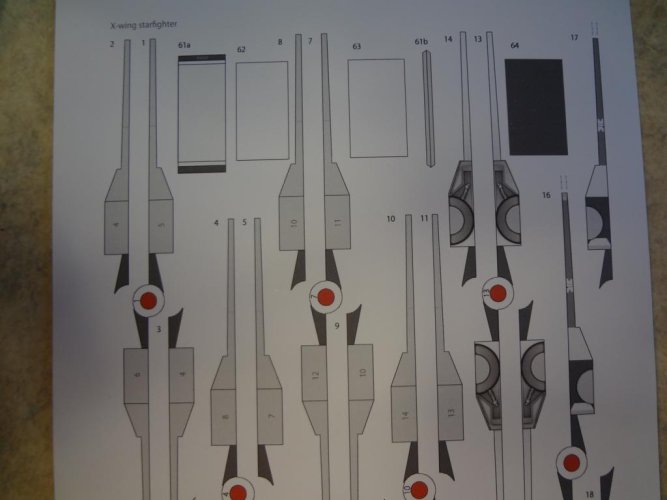

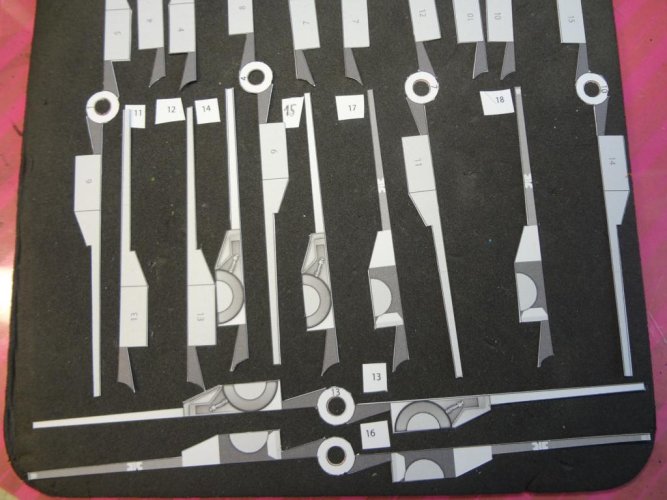

I will start with the wings, namely the outer edges at the front (18 parts), which are very challenging to cut out. The parts are glued together in a specific order according to the numbers.


Attachments

  • K1024_DSC04723.JPG
    75.7 KB · Views: 5
  • K1024_DSC04722.JPG
    74.6 KB · Views: 5
  • K1024_DSC04728.JPG
    117.8 KB · Views: 5
  • K1024_DSC04727.JPG
    122.8 KB · Views: 5
  • K1024_DSC04725.JPG
    78.4 KB · Views: 6
  • K1024_DSC04724.JPG
    81.3 KB · Views: 6
  • K1024_DSC04726.JPG
    123.9 KB · Views: 5
This should be great! :)

You are off to a great start! I am looking forward to seeing how this turns out.
If I may ask, who is the designer of the template?

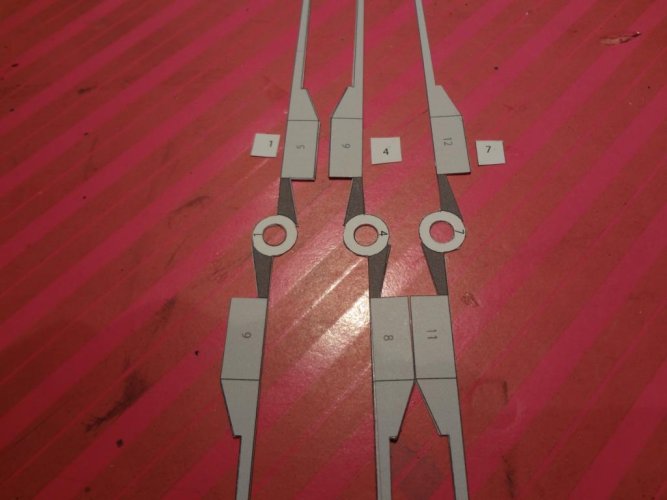

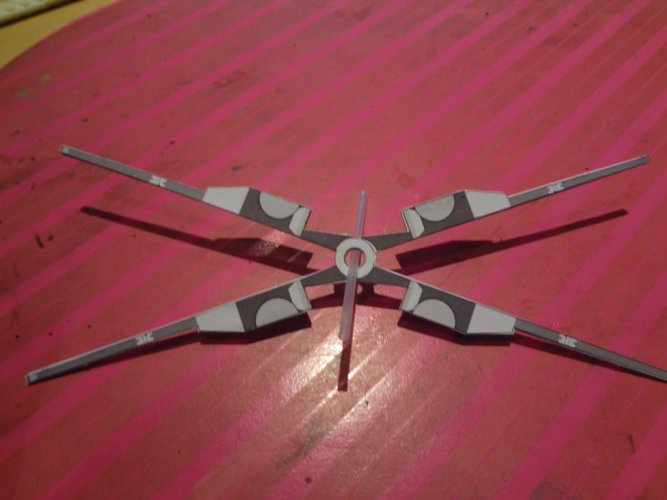

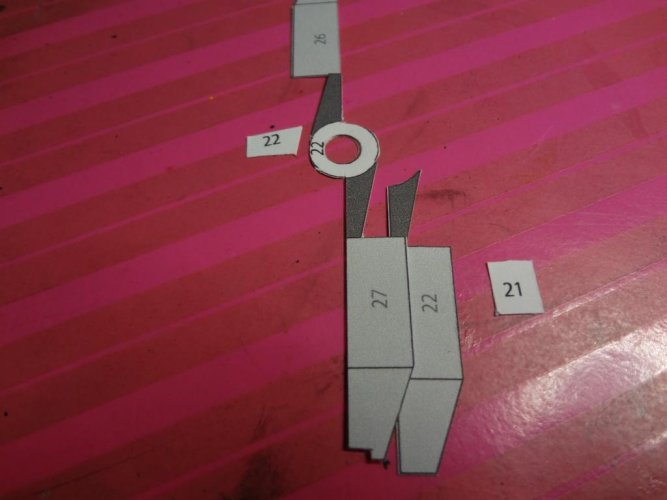

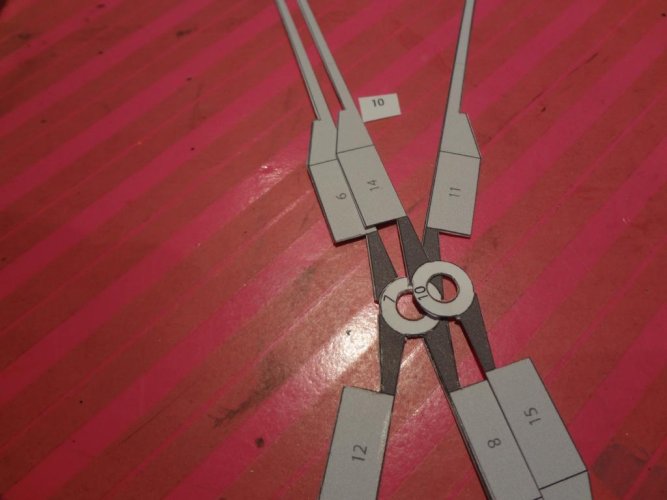

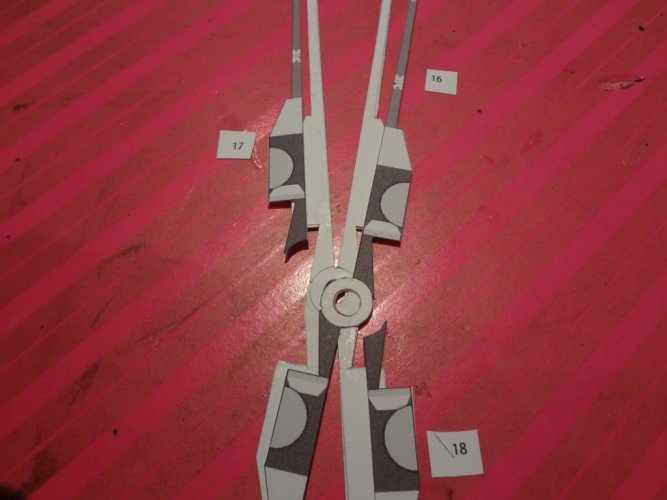

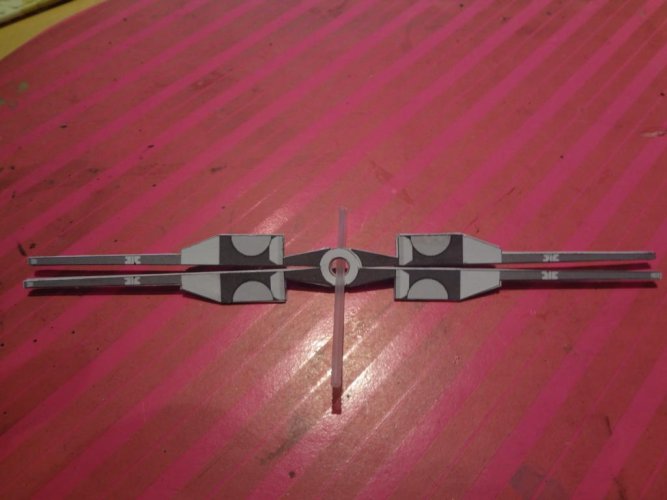

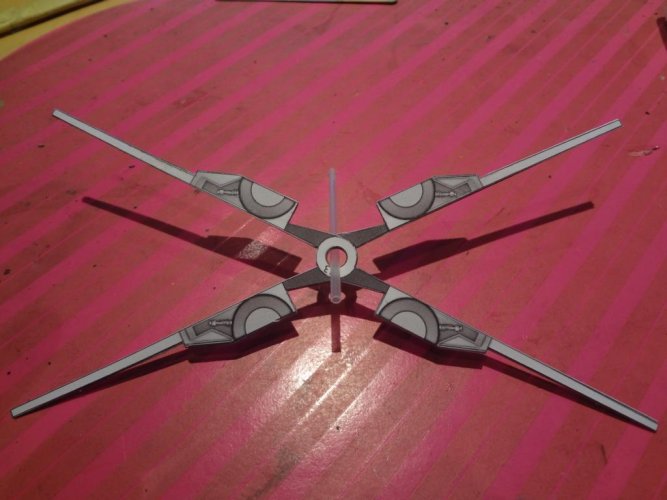

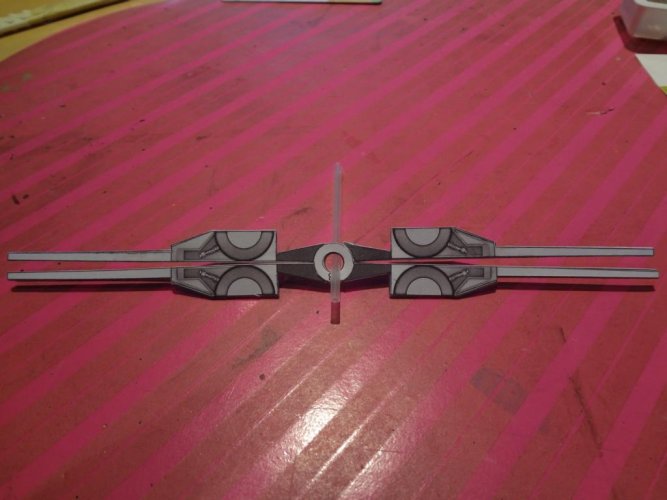

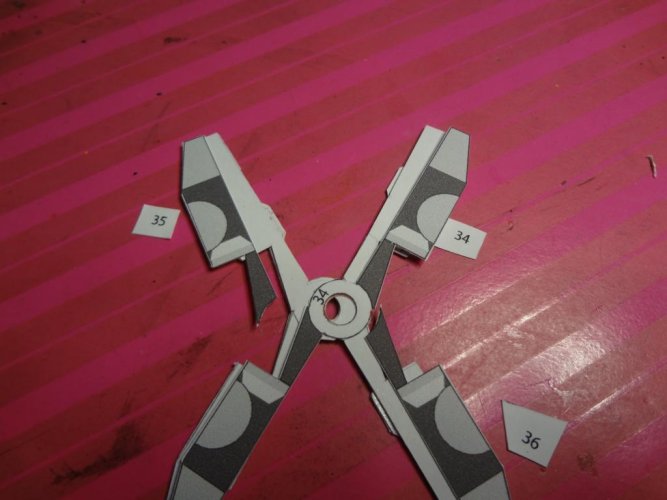

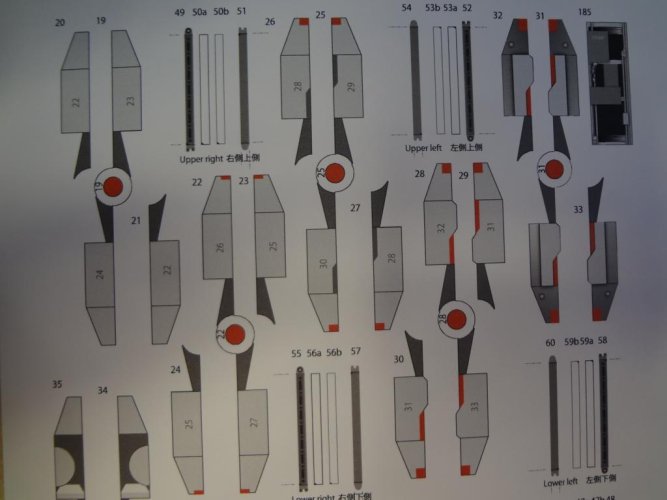

The first part - the front - of the wing is finished. It took me some time to realise how the individual parts are distributed among each other (once on top, then underneath, etc.). It is important that the inner white ring must NOT be glued because of the movement! I hope I have designed the pictures so that you can recognise which part is glued on at the bottom or top with the respective numbers. The important thing is to cut out exactly and glue carefully, if necessary touch up the edges of the centre part with a felt-tip pen.

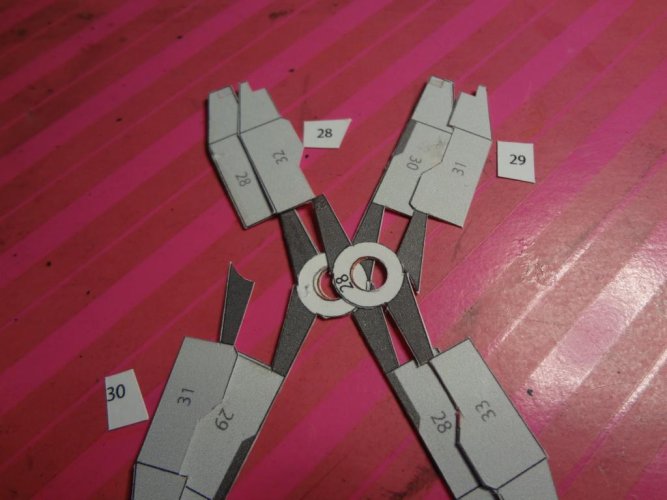

Next comes the rear part...


Attachments

  • K1024_DSC04729.JPG
    71.7 KB · Views: 4
  • K1024_DSC04730.JPG
    69.8 KB · Views: 4
  • K1024_DSC04731.JPG
    69.4 KB · Views: 4
  • K1024_DSC04733.JPG
    75.9 KB · Views: 4
  • K1024_DSC04738.JPG
    71.5 KB · Views: 4
  • K1024_DSC04739.JPG
    78.3 KB · Views: 4
  • K1024_DSC04743.JPG
    74.8 KB · Views: 4
  • K1024_DSC04744.JPG
    86.2 KB · Views: 4
  • K1024_DSC04746.JPG
    77.8 KB · Views: 4
  • K1024_DSC04747.JPG
    77.5 KB · Views: 4
  • K1024_DSC04748.JPG
    76.1 KB · Views: 4
  • K1024_DSC04749.JPG
    85 KB · Views: 4
  • K1024_DSC04750.JPG
    92.3 KB · Views: 4
  • K1024_DSC04751.JPG
    83.8 KB · Views: 4
  • K1024_DSC04752.JPG
    78.5 KB · Views: 4

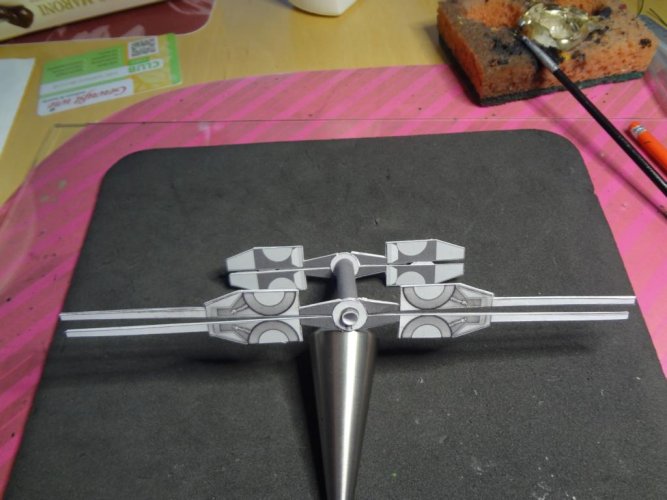

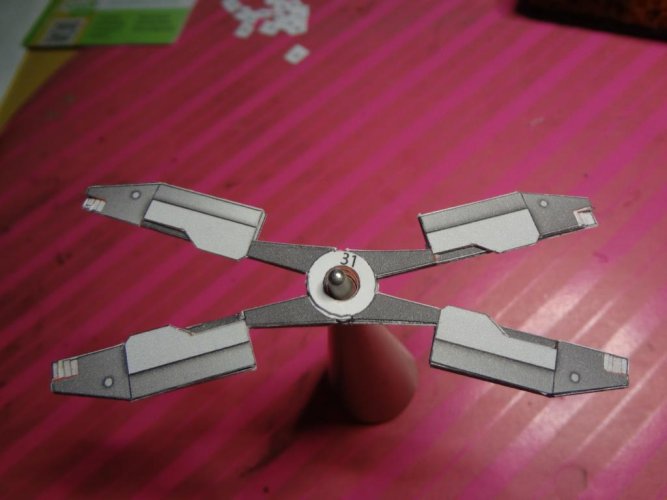

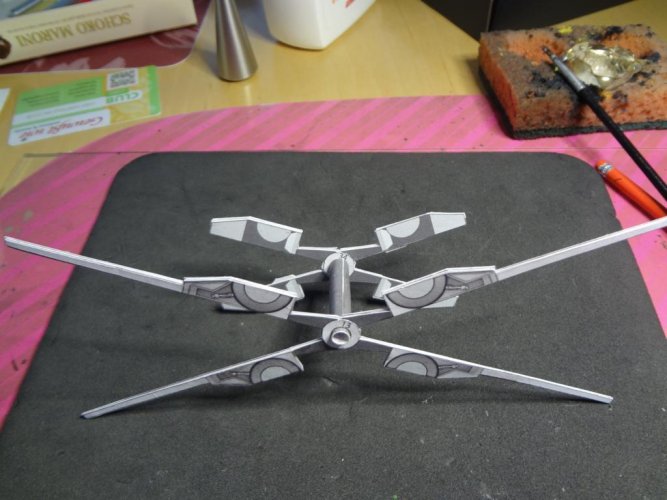

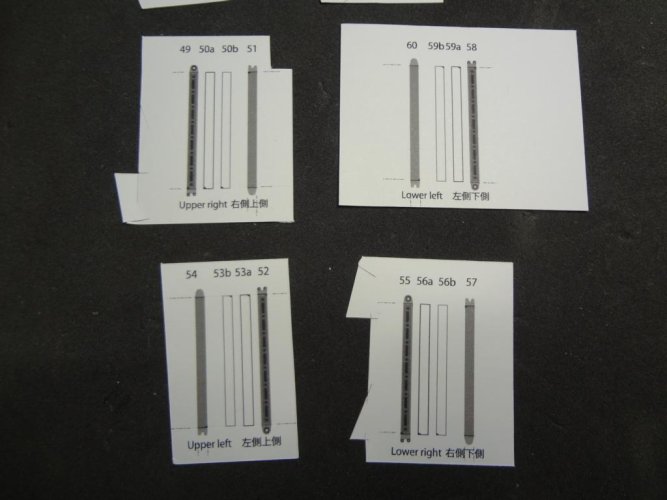

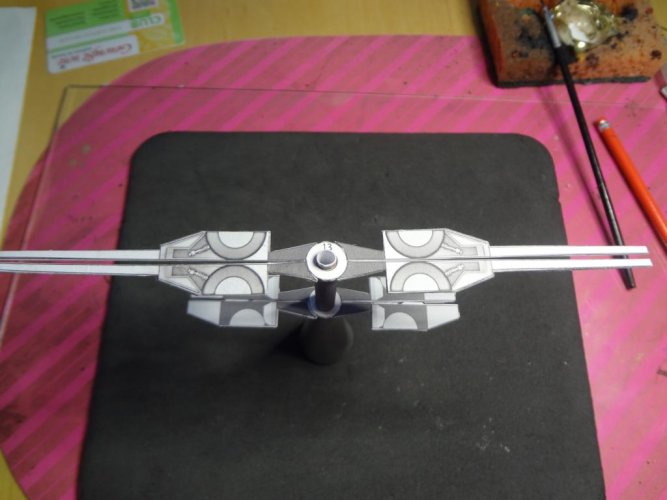

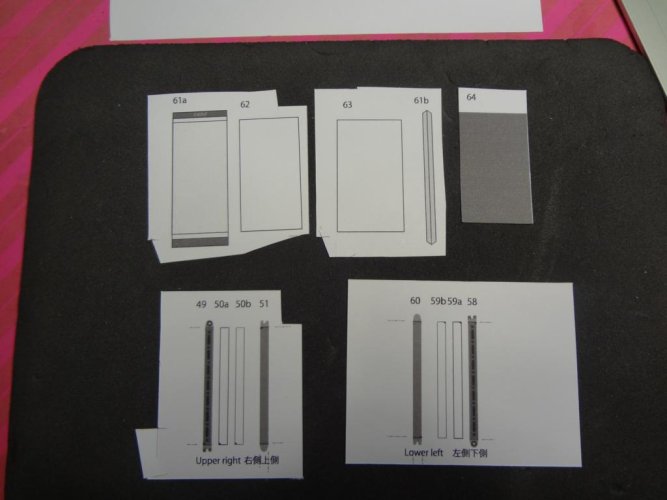

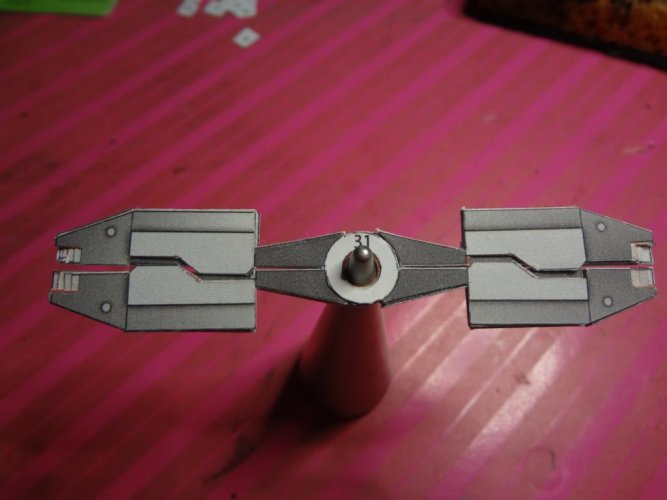

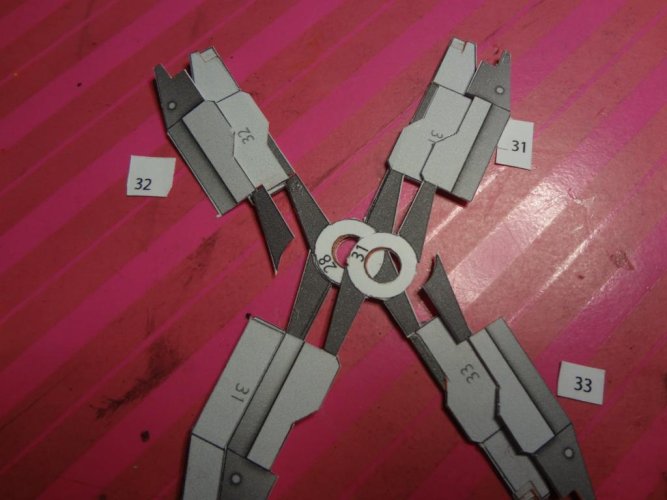

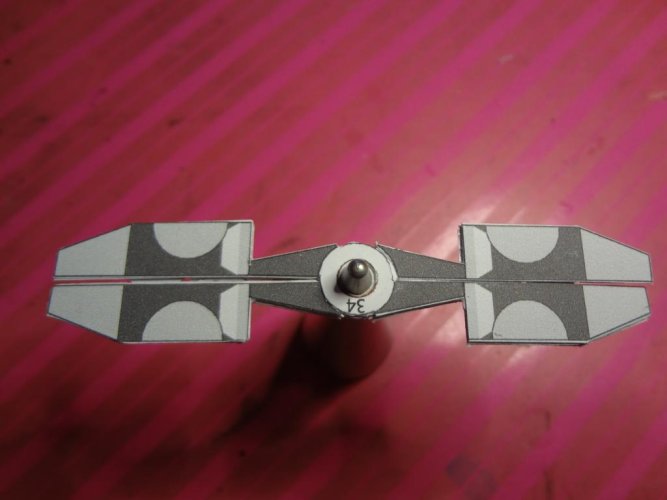

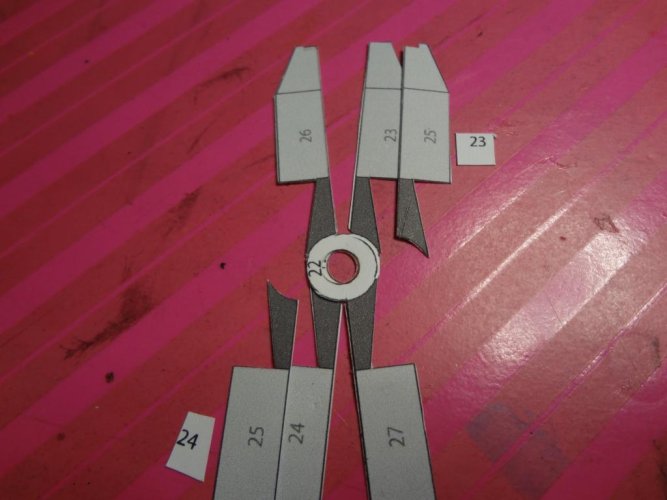

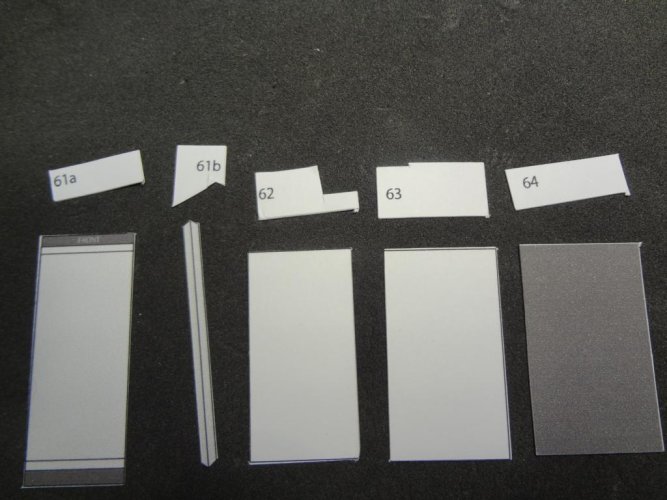

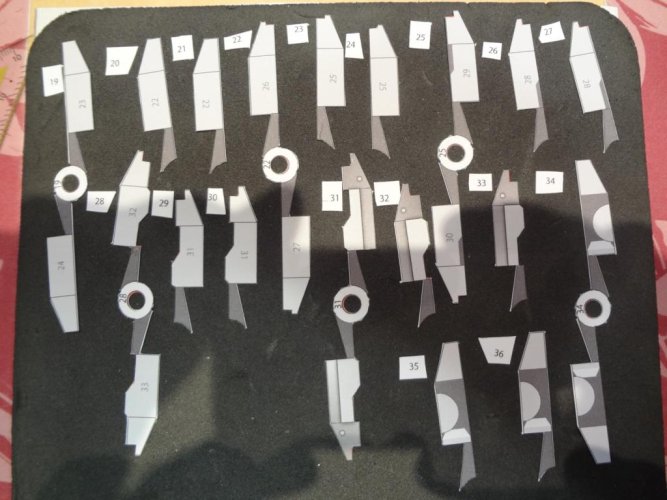

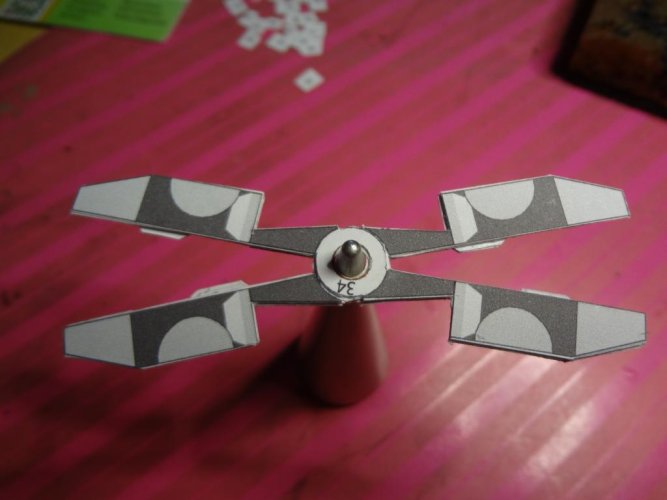

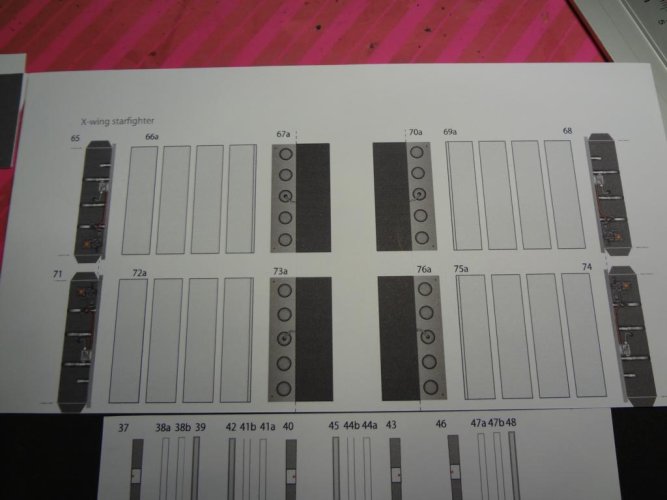

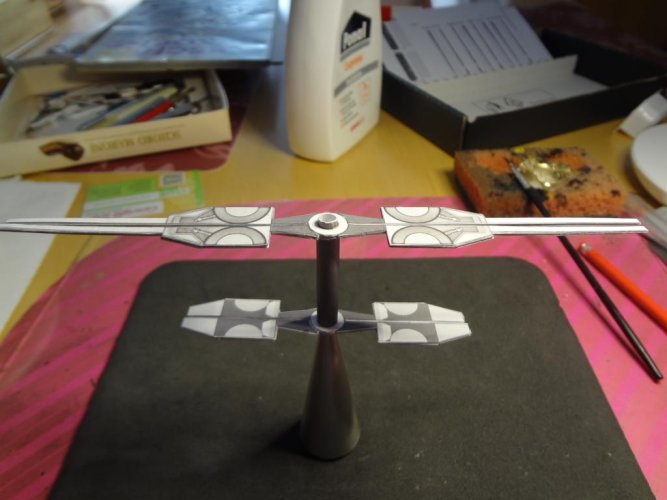

Rear side and wing shaft finished. The next step is to assemble the motor frame.
