To be somewhat Enterprising....

[mijob]

Nice start looking forward to see your progress.



[THE DC]

[QUOTE="

First gripes with the B kit I have chosen, no support structures and no instructions!
[/QUOTE]



I hate it too when high potential kits have no directions.

Could you share your build here to provide directions for th kit?

I know that's a lot of detail in pics and words, but it would help others learn before stumbling through the process.


Keep the build thread going!

Great theme!!!!



[Cybergrinder]

@THE DC , I'll try, but I can say if you look at the template you can recognise the pieces I'm working with

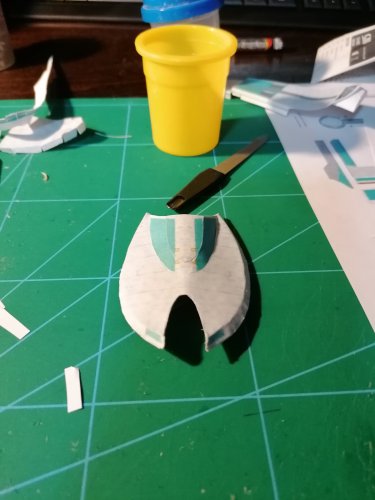

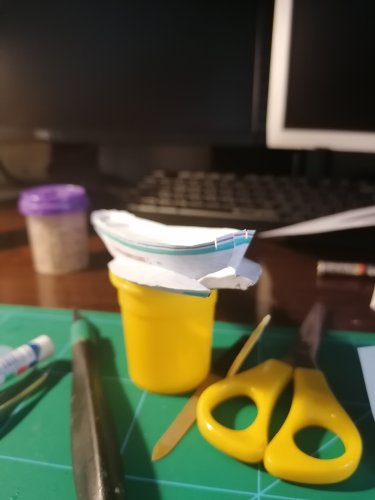

So now the "bulge" , which I am glad to say they ditched with the "refit". Think USS Excelsior in Star Trek VI.

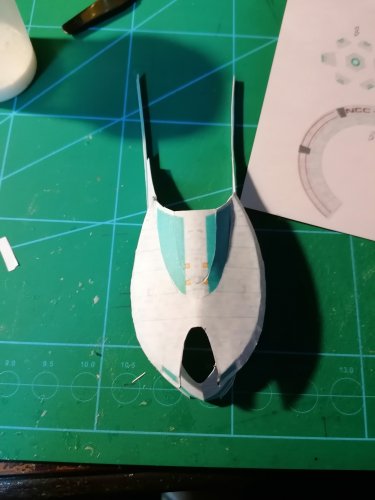

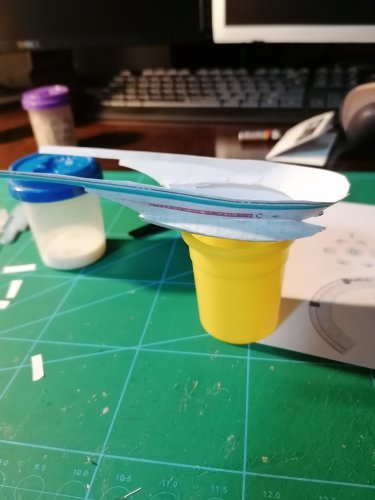

And partly attached to the rest of the upper secondary hull



[Rhaven Blaack]

That looks really good!!!



[Revell-Fan]

Very gooood!



[Cybergrinder]

Thanks RB, now the secondary hull joined

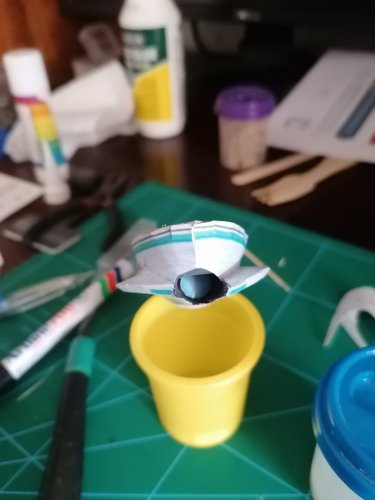

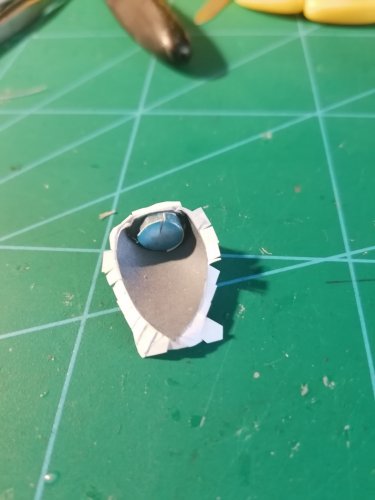

And the deflector dish completed



[mijob]

This looks realy good.



[zathros]

Each one improves exponentially. This may be your best yet. Of course the night time shots, all lit up are yet to be beat!



[Cybergrinder]

Thanks everyone, simply due to time an resources I'm only going to light up the A in this project. Also shrinking the templates would make lighting up the ships quite a challenge



[Cybergrinder]

And deflector dish attached

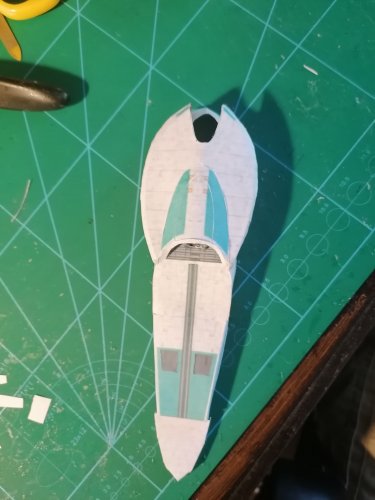

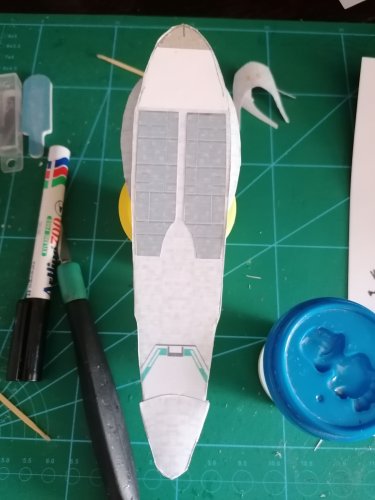

And now the top cover attached



Next up shuttle bay assembly

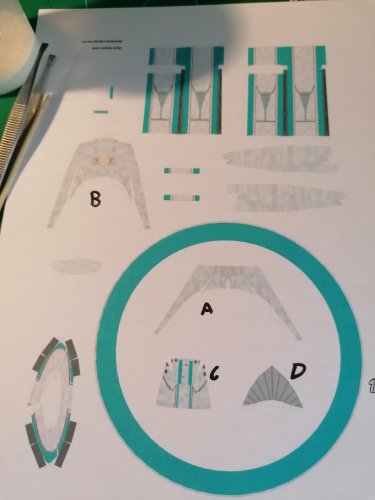

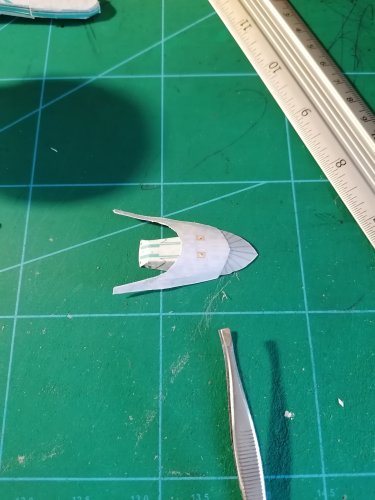

This step needs a little guidance. In the picture below I've labelled the parts, A-D. Part A goes inside the structure (part B) pictured above. C and D are pretty obvious



[Cybergrinder]

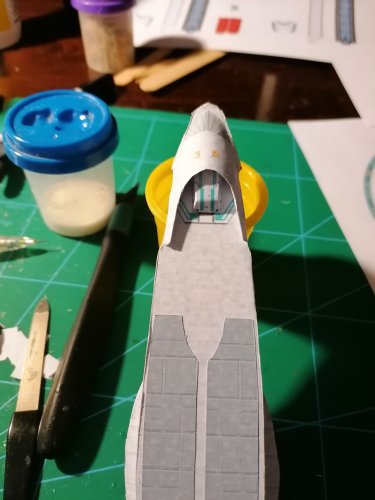

And now the shuttle bay attached



Starting on the warp nacelles and pylons, you can see the stirring stick I'm using for support



[Revell-Fan]

Row, row, row your boat, gently down the stream...



Very nice!



[THE DC]

This is a great build thread for thread!

Step-by-step and detailed on how to reinforce (improve) the kit!


Thanks!



[micahrogers]

This one is gonna be a stunner too. I never fell in love with the E-B, The "bulge" added nothing to the base Excelsior, but I still like me some lovely Enterprises.



[Cybergrinder]

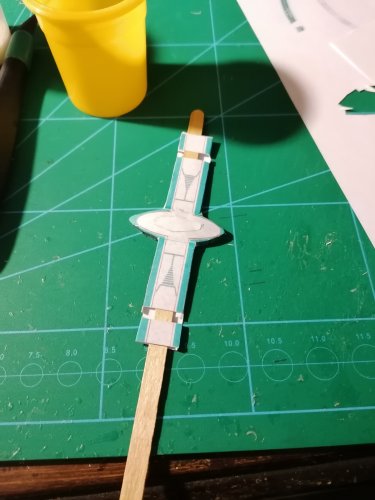

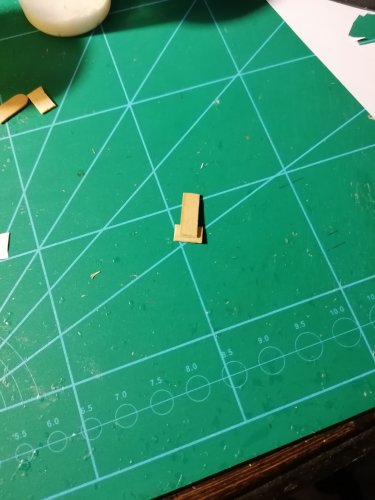

Now we have a little vertical support I made (otherwise I can see some major nacelle droop)

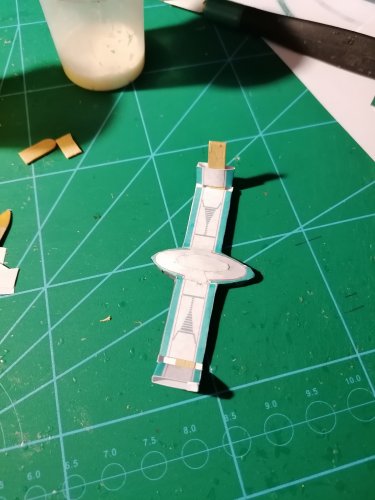

Now with the larger end inserted into the pylon, broader end down

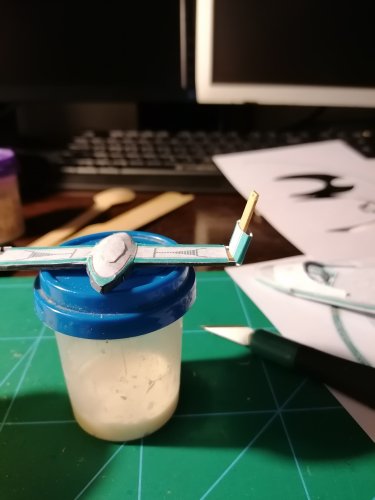

And a front view



Funny enough I thought this was a square to support the nacelle, but after some browsing I found there is a slight angle



[mijob]

This is gone be a verry good model. Nice to see the time and effort you put in it.



[Cybergrinder]

So here we have the pylon mounted to the hull. I forgot to mention this earlier, but I used a piece of card to support the "lid" of the secondary hull. You can see a bit uncovered at the front

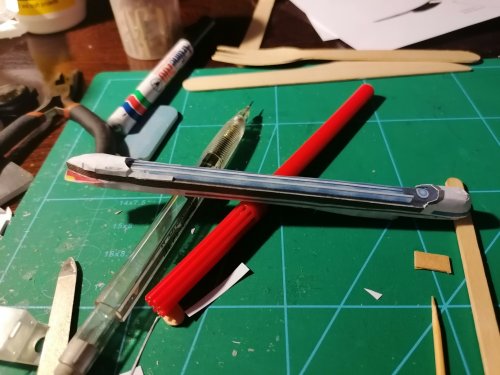

Now gripe time. The nacelles are very tricky, and confirm what I suspected, the template was lifted from a game and there is a lot, I mean a lot of texture overlap.

As a result I have left the faring off for now, until I an get the alignment right

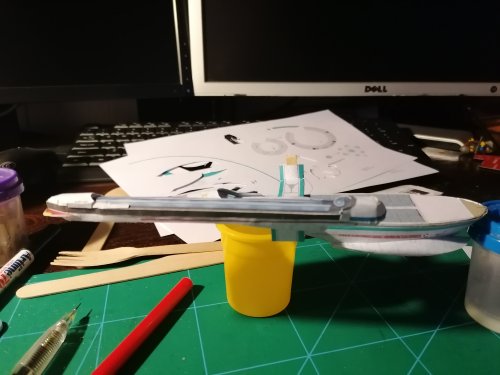

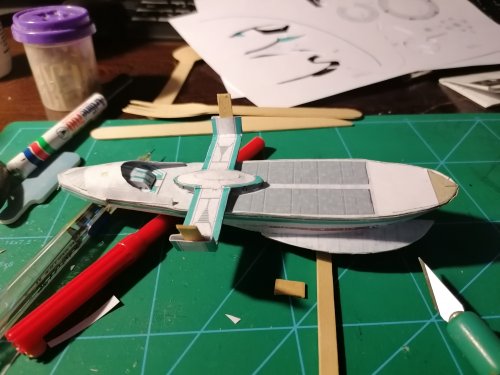

And here is the nacelle attached



[micahrogers]

Great work so far. A lot of paper models we have are because someone lifted the textures from games, and those so artifacts of thier source.



[zathros]

Nothing like a great sub build!



[THE DC]

Great work and tips!

I found the secondary hull warped without an upper support. I also had to add interior supports to the fore section of the secondary hull, behind the deflector, to retain the shape of the fore hull as well.

Your pylon support idea is smart, as was the nacelle support. These too will warp.

Thanks for sharing these ideas and the way you made it work!

This is a cool idea for a kit, but the actual build was a bit challenging. Your ideas are great suggestions.
