Tie Phantom Design Thread

mijob

Tie designer
Staff member
Moderator
Thanks Rhaven, yust some minor corrections these I will correct at a later time. I will make a new template wuth the corrected parts and mount these. parts on the alpha model. Next time I start with the wings.


mijob

Tie designer
Staff member
Moderator
Thanks beuch.

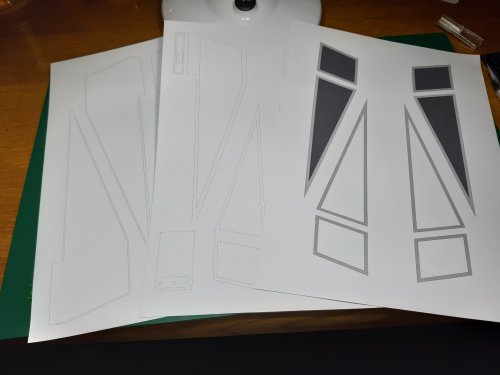

As prommised here are the templates for the wing.

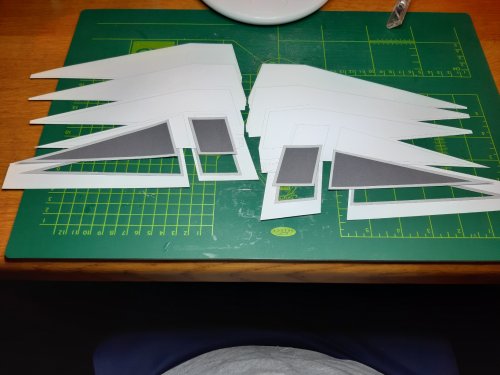

And here are the wing cut out.

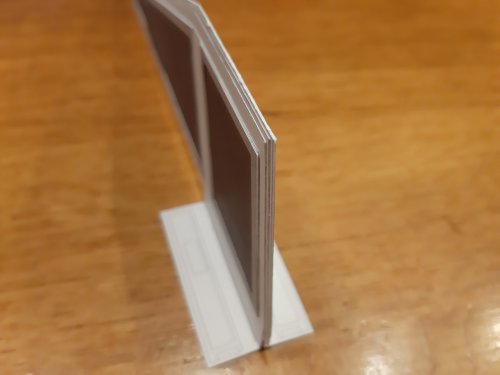

All these pieces will form only one wing. So its a realy thick layerd wing.
Next time I will show you the assembled wing.
I'm done for this day.


mijob

Tie designer
Staff member
Moderator
Thanks micah.

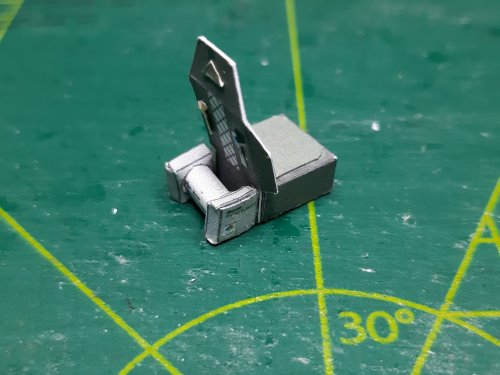

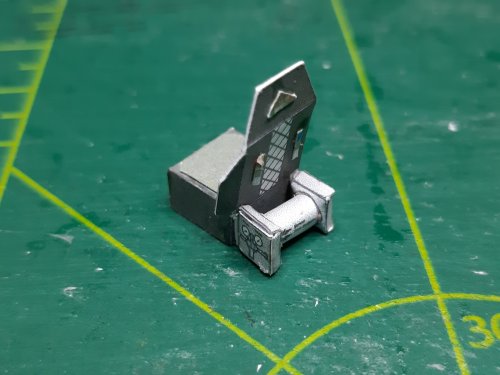

Nect you will see the cockpit.

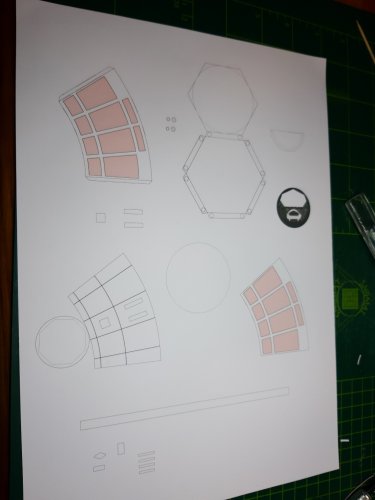

This is the template.

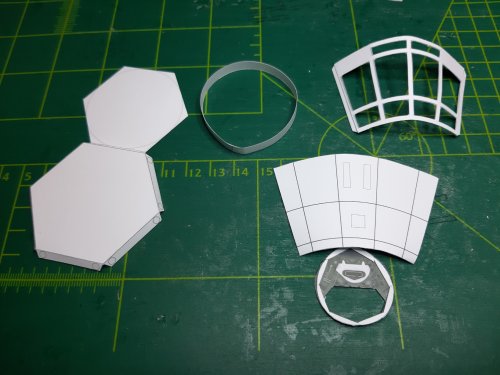

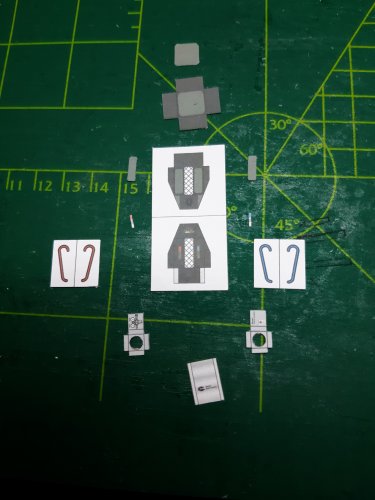

And the parts cut out.
I tried to form the cockpit in the correct shape but this didn't work. I will make a couple of formers to get the right shape. This will make it easier to fit the front and rear end on the cockpit. Next I will work on the detail parts.


mijob

Tie designer
Staff member
Moderator

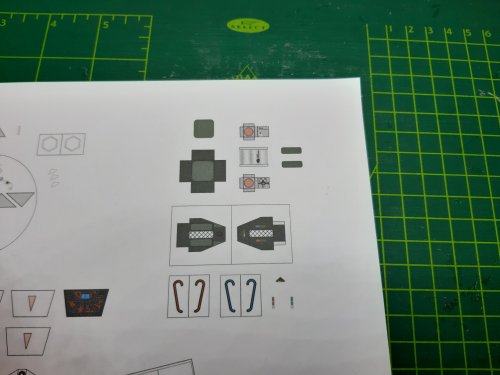

And some results of this weekend.

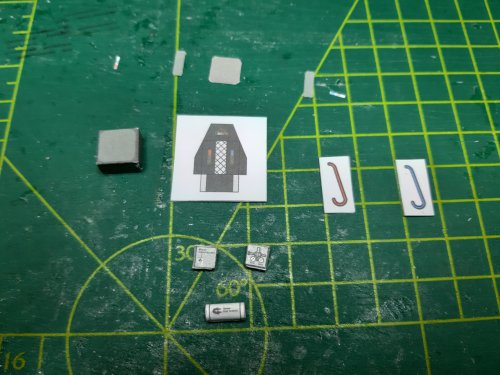

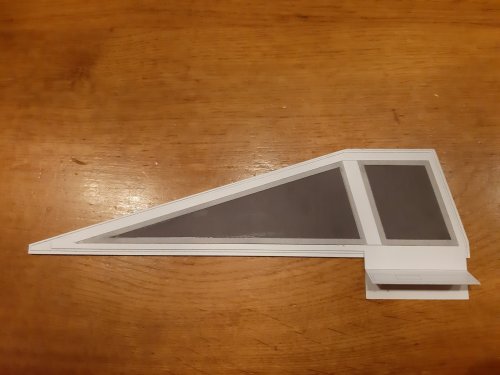

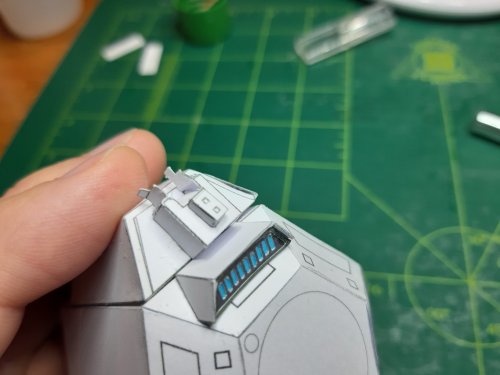

This component will be fitted next to the wing.
I dont like the shape of it. I will make a new box without a bottom. As you can see I cant fitted the recested part correctly. So I have to figure out a new way of mounting it. Maybe I gone place it on top with a surrounding.

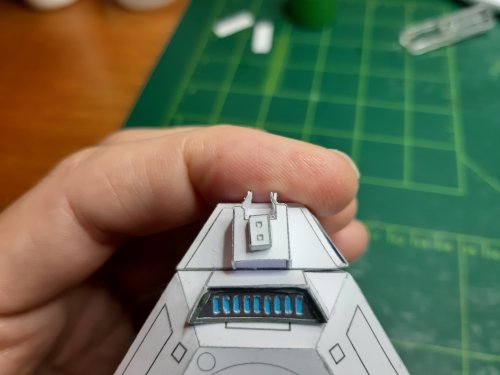

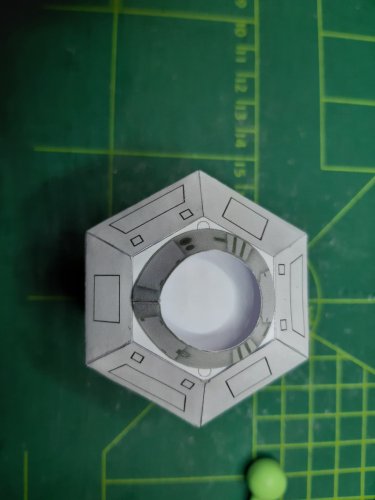

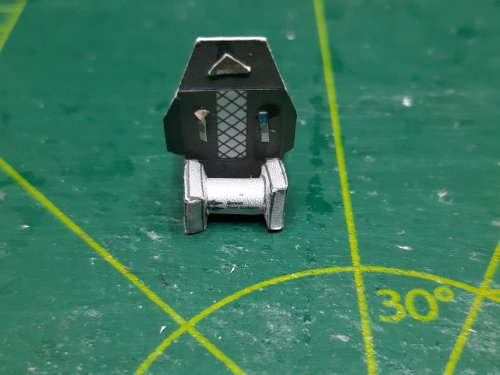

Next installing the ionengine I.have used the ion engune.from uhu.. As you can see its to big for this model. I have to shrink it a bit that means a new drawing that I have to make.

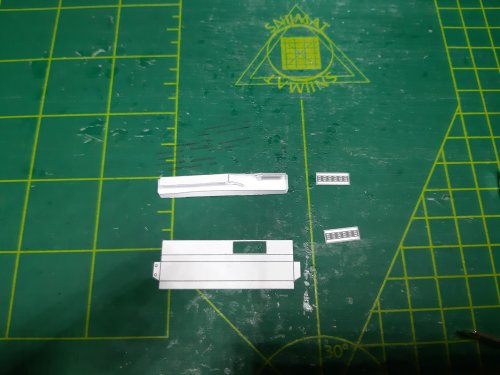

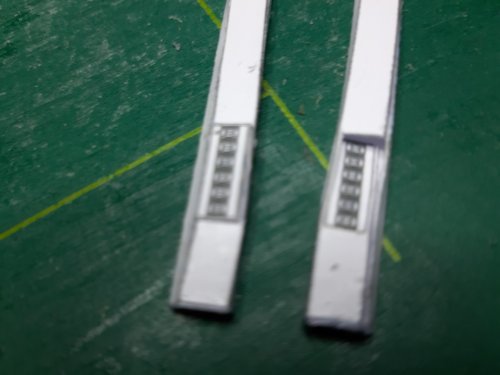

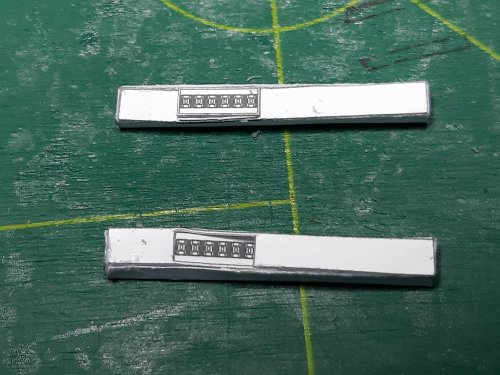

Below some parts for the clocking device.
It doesn't fit that good I have to correct these mistakes.

I have made a list with all the things that I have to change. For the next couple of days I will work on this list.
