Now I can start the new project, the B-Wing. The B-wing's origin (as the Blade Wing), was designed by the Mon Calamari engineer Quarrie
(according to StarWars.com).
As stated in the other thread, I only have the printed copy. Because I DO make mistakes, I made 2 copys that I will be working from.
This leaves the original intact in case I really mess up and need more copys.

So on to the build: I just started today, so I don't have much done as yet. Also, this is a very detailed model,.... so it will probably be a long build.


Revell-Fan

Co-Administrator
Staff member
Administrator
Moderator
Aug 1, 2009
8,385
6,744
183
Vreden
:Drinks:

EXCELLENT!

I'm closely following this report. That thing has a lot of parts and a beautiful texture. :)


Rhaven Blaack

!!!THE MAN BEHIND THE CURTAIN!!!
Staff member
Administrator
Moderator
Jun 12, 2009
9,329
4,757
183
Oregon
When you made the copies, did you scan it into your computer, so that you can print out more copies easier.


ennder

Active Member
Jul 26, 2008
240
442
48
Sometimes when I scan things into my computer I end up with what looks like a white film over the picture. If I just scan and print I don't get that white film. I think there might be something wrong with the software in my computer, because the white film doesn't happen every time I scan something. It only happens about 40% of the time.


Revell-Fan

Co-Administrator
Staff member
Administrator
Moderator
Aug 1, 2009
8,385
6,744
183
Vreden
A scan never displays the original correctly because you are dealing with a print. The kind of paper used and the way it was printed affects the scan. The colours will always be different. Printing a scan is another issue and further alters the colours. With some tinkering you may end up with a good compromise though.
Sometimes when I scan things into my computer I end up with what looks like a white film over the picture. If I just scan and print I don't get that white film. I think there might be something wrong with the software in my computer, because the white film doesn't happen every time I scan something. It only happens about 40% of the time.
Do you mean black is scanned as grey? That might be an issue of the scan unit (too bright) or the paper used (glossy might be a problem). Adjusting the black value could solve it. That has to be done in a graphic program like Gimp.
Strangely my printer behaves similarly, albeit in regards of moirés. A simple copy print produces less moirés than a saved scan. The colours look different, too. I haven't found out a way to solve that. I guess it is something you have to live with (cheap tech ;) ).


Gandolf50

Researcher of obscure between war vehicles...
Staff member
Moderator
Jan 28, 2013
1,330
1,557
96
New Mexico USA
It will matter what type of scanner, also...your "All -n - Ones" are not the greatest in the world...I will never use one. I have a REALLY OLD Canoscan5600f and it is wonderful! I have none of the problems described above as I can set everything internally from the driver. Moirés, click a box, and GONE. Called moiré reduction...but it just flat gets rid of it.
If you don't have the equipment, you got to eyeball it, and just get the best scan as possible...at a minimum of 600dpi. Make sure everything is color-matched between Monitor>Scanner>and Printer... if the software will allow you to.

Of course, I don't care much about it ... since I'm so sloppy I paint everything anyway! ;)


ennder

Active Member
Jul 26, 2008
240
442
48
Do you mean black is scanned as grey? That might be an issue of the scan unit (too bright) or the paper used (glossy might be a problem). Adjusting the black value could solve it. That has to be done in a graphic program like Gimp.
Strangely my printer behaves similarly, albeit in regards of moirés. A simple copy print produces less moirés than a saved scan. The colours look different, too. I haven't found out a way to solve that. I guess it is something you have to live with (cheap tech ;) ).
Yep, this is what is happening.
However, I found the missing file last night.
I was looking through a stack of data DVDs for some old family photos and found one marked "starwars papermodels"
So I looked at it and the file was there. :)


zathros

-----SENIOR----
Staff member
Administrator
Moderator
Apr 6, 2013
11,359
6,474
228
If those first cuts are the beginning, the rest will be fantastic! :)


starbuck

Well-Known Member
Aug 15, 2013
815
1,488
93
Austria - Carinthia
I myself have planned to build this beautiful model. Please send as many pictures as you can. Maybe some comments on the thickness of the used paper or problems coming up - good luck for this masterpiece building.

  • Like
Reactions: Revell-Fan

zathros

-----SENIOR----
Staff member
Administrator
Moderator
Apr 6, 2013
11,359
6,474
228
I know nothing of this model, your build will be my learning start. ;)

  • Like
Reactions: Cybergrinder

ennder

Active Member
Jul 26, 2008
240
442
48
I myself have planned to build this beautiful model. Please send as many pictures as you can. Maybe some comments on the thickness of the used paper or problems coming up - good luck for this masterpiece building.
I normally use 110# card stock, however there is a page included with this model that suggests paper thickness for each page. the pages that contain
the cannons are 20# copy paper the rest was printed on the 110# card stock.

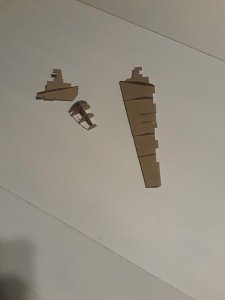

To get the raised panels, I use a trick I learned building the Warhammer 40K models and glue them to another sheet of card stock for double
thickness,as shown below
20200104_010817.jpg.
this gives a beautiful effect.

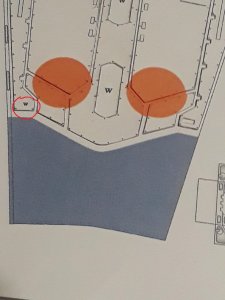

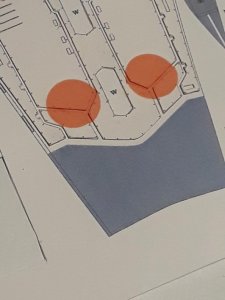

I found something that I don't know if it is just missing lines or he forgot to remove the "W" circled in red.
