That double cockpit will be a challenge. I'd study this model, and make the fuselage section first. I would try and fit the cover afterward. Some of us use water, making molds out of two part epoxy, to get the shape, use that as a plug to put wet paper over. This allows you to get compound curves, and when it dries, you have the shape you want. ;)

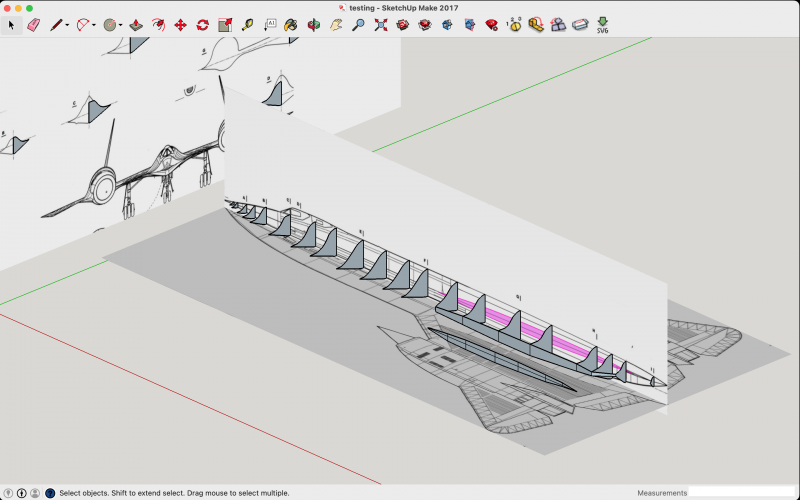

View attachment 218526
Your right, I'll prolly just make the normal Sr-71 and work on that later as an "add on"


zathros

*****SENIOR ADMINISTRATOR*****
Staff member
Administrator
Moderator
Apr 5, 2013
13,529
9,602
228
You're doing a great job, on a model that is not easy to design because of its curves. When you skin it, I would recommend thin strips on the formers to minimize the "skeleton" effect. You will have to compensate for that, of course, but it's worth the effort.

Have you seen Ken West's double cockpit "SR-71" model? It's superb. Just building that model is an accomplishment in itself. :)

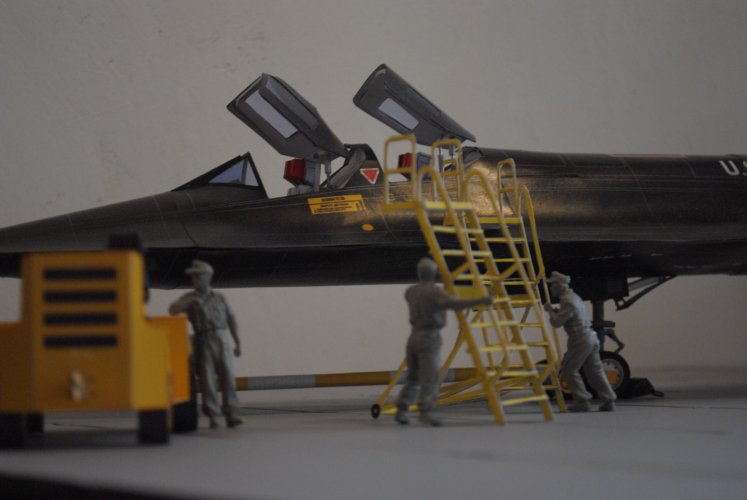

Ken West's SR-71 Model:



Revell-Fan

Co-Administrator
Staff member
Administrator
Moderator
Aug 1, 2009
11,689
12,473
228
Vreden
I got So exited that I just built a quick nose section using RF'S teachings and I have my FIRST PRINTABLE!!!!! My building techneques are questionable at best but I'm learning every minute!!!!! I used flattery

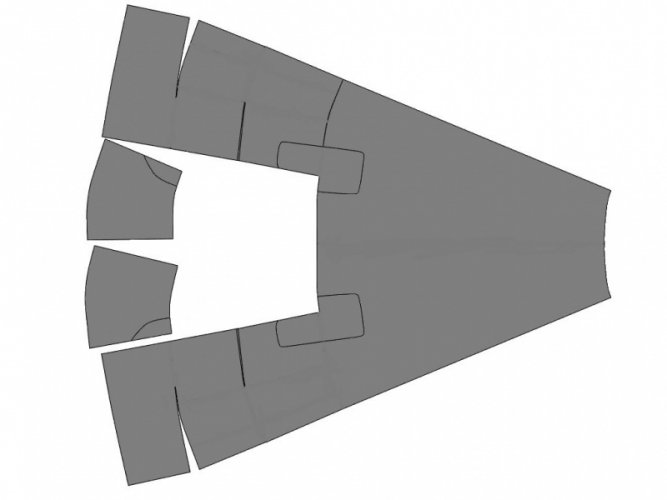

but flattery has an issue with unfolding the many triangle facets which make up the surface. So I used a plugin called "unwrap and flatten"and exported it using flattery To inkscape and now I'll put together a small part tomorrow I hope!

Oh also when I intersect the skeleton it always becomes an open face and loses color and just becomes lines....So until I figure it out I just screen shot it and scaled it in inkscape.....
View attachment 218527View attachment 218528

That looks great! I checked out the plugin and it works. It is pretty fast, the results are sometimes a bit weird, but all in all it is a good time saver. Thank you very much for the tip! :)

  • Like
Reactions: micahrogers

abdullahsamir

Member
May 5, 2024
47
100
15
24
abdullahfloyd.github.io

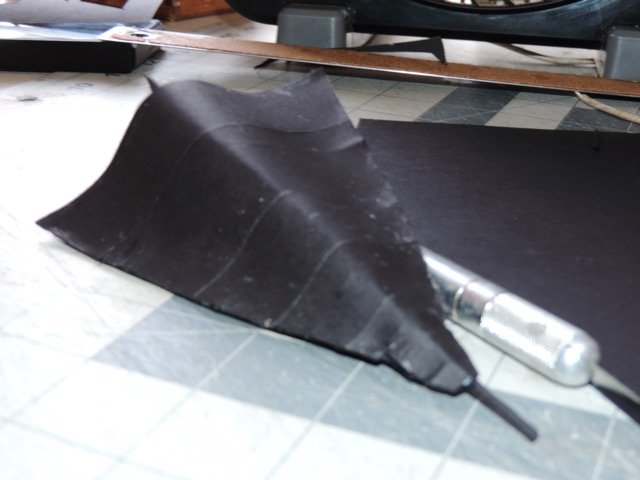

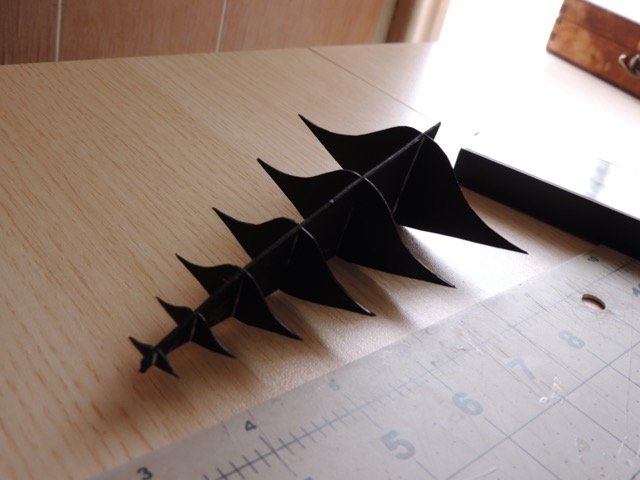

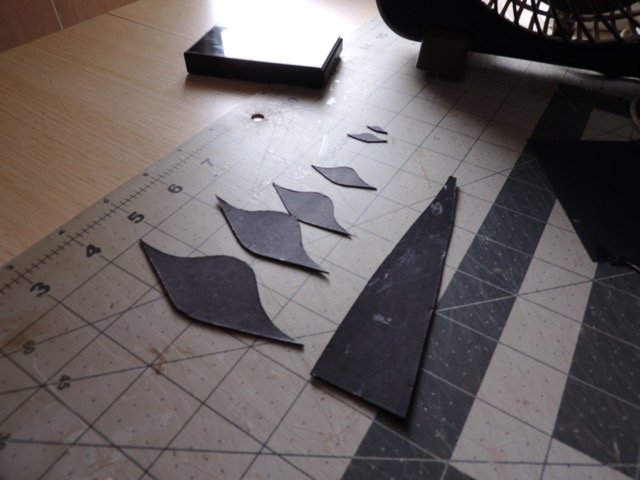

Pretty rough but the impeccable fit is just so new to me this is a HUGE PROJECT, but I will not stop this is just a tip in the nose, the scale is WAY to large rn, lol, but yeah this is it, I have to figure something about tabs, or something the glue lines are HORRIBLE!!!!! I heard about buying card for the sections, so I think Ill buy that soon too.

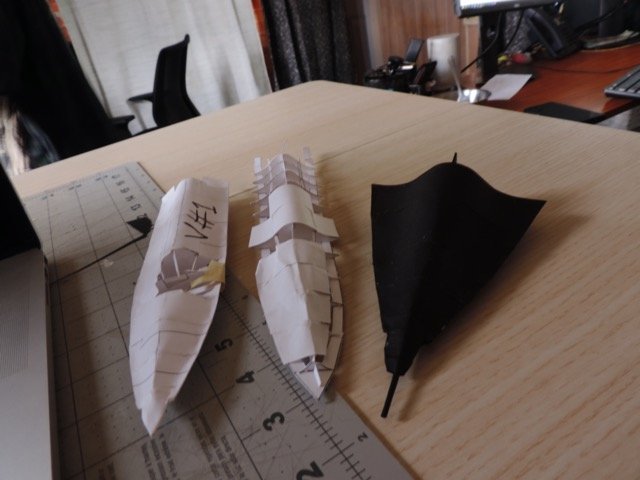

DSCN0337 Medium.jpegDSCN0338 Medium.jpegDSCN0340 Medium.jpegDSCN0352 Medium 2.jpegDSCN0348 Medium.jpegDSCN0346 Medium 2.jpeg


micahrogers

Moderator "Where am I, and how did I get here?"
Staff member
Moderator
Jul 12, 2012
3,792
4,664
113
Shannon GA
The blackbird I liked most was the old 1/48th scale YF-12, I took that kit and backdated it to be the M-21 mothership, found a resin 1/48th D-21 drone, and mated it to the top.

I love How big this one is, but to each his own. I couldn't find a place to display a 1/144th Blackbird where I live now...


micahrogers

Moderator "Where am I, and how did I get here?"
Staff member
Moderator
Jul 12, 2012
3,792
4,664
113
Shannon GA
I'm no designer, but stick and tissue modeling tells me, get your cross sections, then your longitudinal, then support blocking, then skin.


Revell-Fan

Co-Administrator
Staff member
Administrator
Moderator
Aug 1, 2009
11,689
12,473
228
Vreden
HOLY MOLY! You are really cutting through the felgercarb! And don't ask me what that means. ;)


Please keep in mind that you have to compensate the skeleton parts for the paper thickness. They must be a tad smaller than the skin parts to prevent buckling. To do so use the offset tool and offset each skeleton part by the paper thickness. If you use 160 gsm paper that should be about 0.2 mm. If you use thicker paper / card use a bigger offset.

  • Like
Reactions: mijob

abdullahsamir

Member
May 5, 2024
47
100
15
24
abdullahfloyd.github.io
HOLY MOLY! You are really cutting through the felgercarb! And don't ask me what that means. ;)

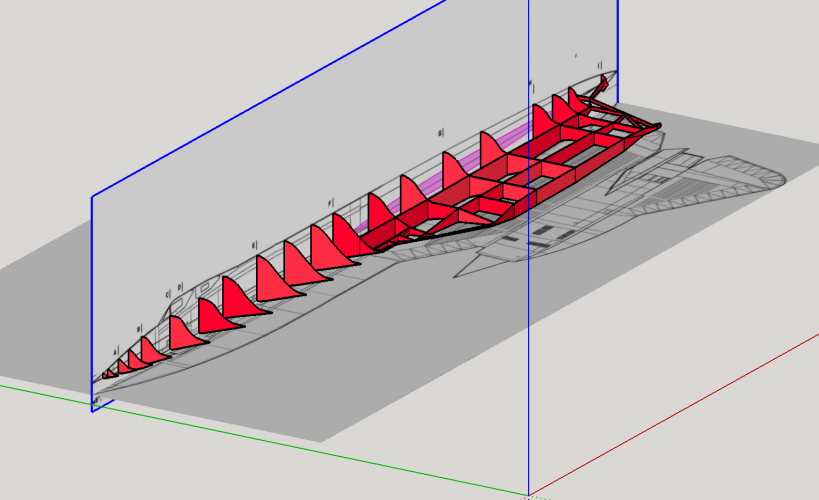

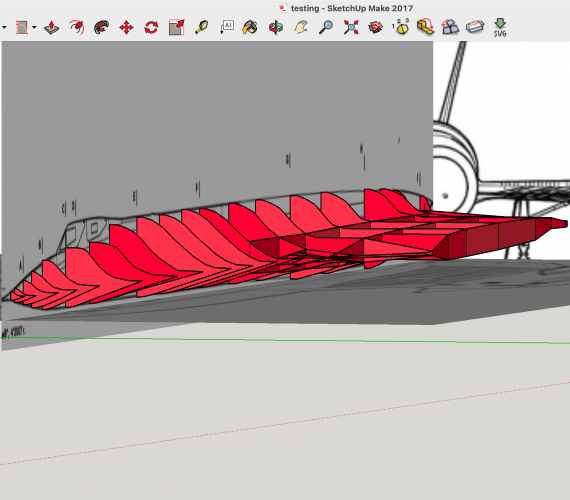

View attachment 218693

Please keep in mind that you have to compensate the skeleton parts for the paper thickness. They must be a tad smaller than the skin parts to prevent buckling. To do so use the offset tool and offset each skeleton part by the paper thickness. If you use 160 gsm paper that should be about 0.2 mm. If you use thicker paper / card use a bigger offset.
YES!!! I will remember to offset!

  • Like
Reactions: Revell-Fan

micahrogers

Moderator "Where am I, and how did I get here?"
Staff member
Moderator
Jul 12, 2012
3,792
4,664
113
Shannon GA
Im glad to hear that I will proceed like that, but what is a longitudinal? Ive NEVER heard of that.
Longitudinal is long ways, stick and tissue models the cross sections would have notches for longitudinal framing.


zathros

*****SENIOR ADMINISTRATOR*****
Staff member
Administrator
Moderator
Apr 5, 2013
13,529
9,602
228

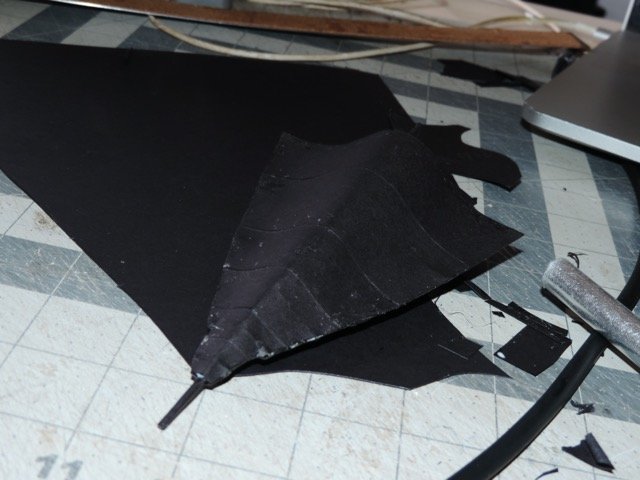

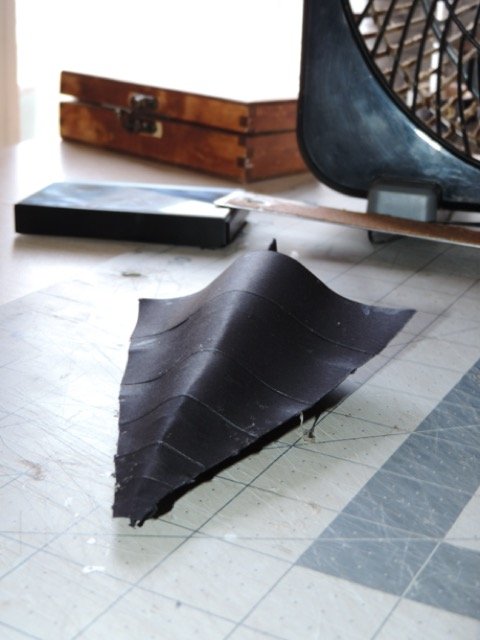

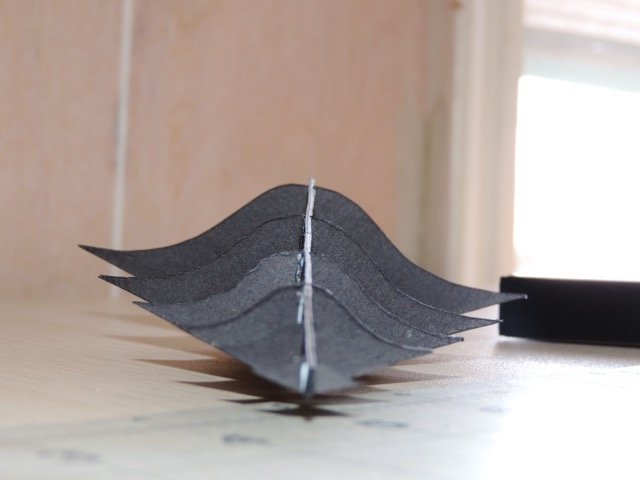

Below is something I have experimented when joining similar panels. It breaks up the surface. These parts are the flattened section of a Cessna 410 I was going to for someone before I realized I was "Casting Pearls unto swine". ;)
