You are more than welcome! I am happy to be of assistance.
[Soviet/Russian] Antonov An-14 -- Build Thread
- Thread starter Awry_Chaos
- Start date
- Apr 5, 2013
- 13,498
- 9,549
- 228
You've built a model I have never seen built before. You have a first!! It's really coming out great!
Great build, and I love that you are showing the challenges and you have overcome them along the way.
So far everything is coming together well... So here's a small update:

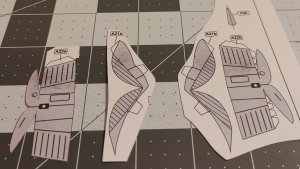

I am working on the small winglets that will go towards the bottom of the fuselage. These mainly provide support for the wing strut that will be assembled later. These ''winglets'' also provide structural support for the landing gear.

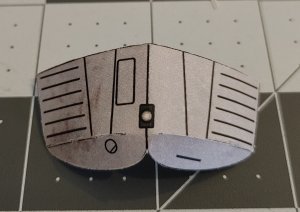

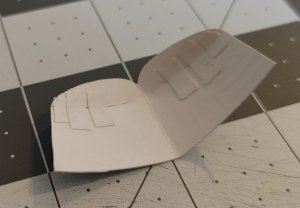

After carefully cutting them out and using internal tabbing, I managed to get them assembled as you will see in the next post.
I am working on the small winglets that will go towards the bottom of the fuselage. These mainly provide support for the wing strut that will be assembled later. These ''winglets'' also provide structural support for the landing gear.
After carefully cutting them out and using internal tabbing, I managed to get them assembled as you will see in the next post.
Attachments

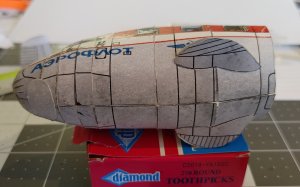

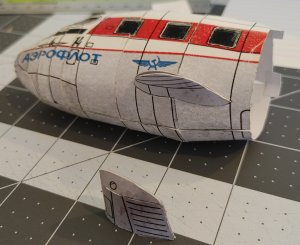

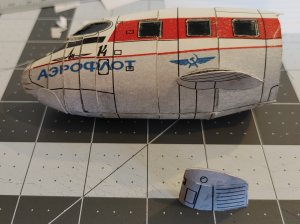

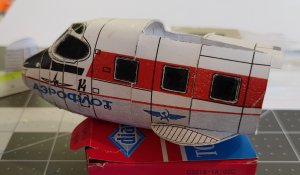

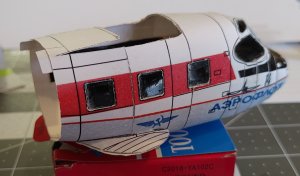

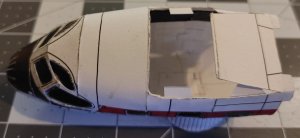

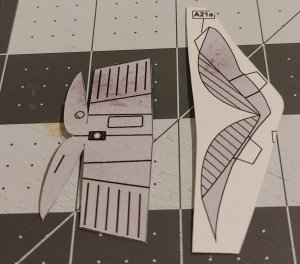

Here you can see the one ''winglet'' support piece attached to the left side of the fuselage. The winglet itself has not been attached but can be seen in the photos below. I will attach it after I build the main wing and make sure everything fits together to my liking.
Attachments
Thank you!You've built a model I have never seen built before. You have a first!! It's really coming out great!
It, surprisingly, is coming along well. I haven't made any fatal mistakes. It's a matter of letting the model be built the way it wants to be built and not forcing things.
- Apr 5, 2013
- 13,498
- 9,549
- 228
I'd consider getting a fine charcoal pencil and filling in the seams on the black graphics, and all the way around, so that the plane looks uniform in it's panel lines. The geometry of the plane looks great!!
Another great tip John. In my list of art supplies, that is one cheap item that I have yet to add.I'd consider getting a fine charcoal pencil and filling in the seams on the black graphics, and all the way around, so that the plane looks uniform in it's panel lines. The geometry of the plane looks great!!
Time for another update:
Here I am assembling the main wing of the aircraft. After cutting the left wing, the wing center section, and the right wing out I used a couple internal tabs to attach them together making the main wing piece.
Here I am assembling the main wing of the aircraft. After cutting the left wing, the wing center section, and the right wing out I used a couple internal tabs to attach them together making the main wing piece.
Attachments
I then glued in place the wing spar assembly I made a while back. It was actually done before I completed the nose section of the aircraft. I carefully lined up everything making sure it was in place before I glued everything down. I also placed some internal tabs along the trailing edge of the wing to assist in gluing those edges together.
When folding the wing I am making sure my fold is going along the lines that match up with the leading edges of the wing spars. I paid careful attention to where the wing would have have the greatest amount of fold and gently curved the other sections that would follow the curvature of the wing spars.
When folding the wing I am making sure my fold is going along the lines that match up with the leading edges of the wing spars. I paid careful attention to where the wing would have have the greatest amount of fold and gently curved the other sections that would follow the curvature of the wing spars.
Attachments

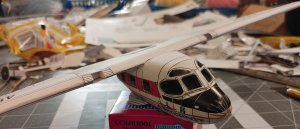

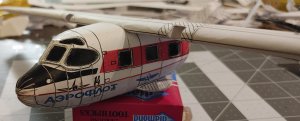

I finished attaching the main wing to the fuselage. Before glueing, I did several test fits making sure everything fit into place beforehand.
Now, I will be able to move on to the rear section of the aircraft and the ''engines.'' The last things I will do is to add the landing gear and other accoutrements to the model.
Optimistically, I'm past the biggest quagmire, but we will see. But, so far, so good
Now, I will be able to move on to the rear section of the aircraft and the ''engines.'' The last things I will do is to add the landing gear and other accoutrements to the model.
Optimistically, I'm past the biggest quagmire, but we will see. But, so far, so good
Attachments
This is really coming together nicely! You are doing a great job on this project!
I might consider this. Thanks for the tip! I am also thinking about doing a full repaint once I am done building the model. Mainly to cover up all the 'flaws' and what not. But then again, this weathered look that's going on here is starting to grow on me. A repaint would be a nice summer project!I'd consider getting a fine charcoal pencil and filling in the seams on the black graphics, and all the way around, so that the plane looks uniform in it's panel lines. The geometry of the plane looks great!!
