I have this posted in the paper models section but was informed I might want to put it in the railroads section also.

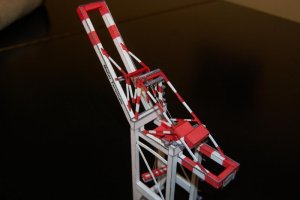

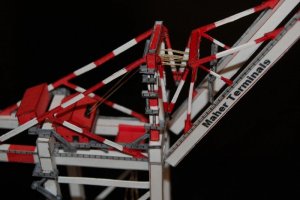

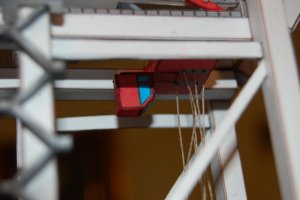

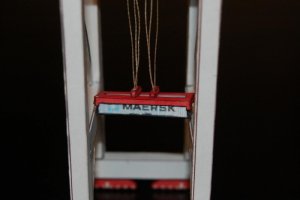

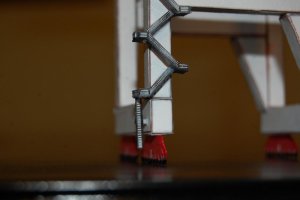

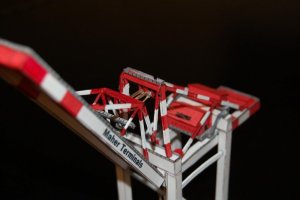

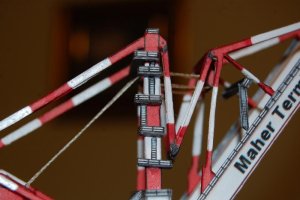

This is a design I came up with of a container crane. It is close to 1/400 scale, not sure what that comes out to in gauge. It can be scaled down for HO or O scale. In the plans you have the option to have the main boom either lowered or raised. Sorry but I haven't designed a way yet to make it do both so it has to be built either one way or the other.

The model will be ready for download once the mods approve it. If you have any questions feel free to PM me and I will be glad to help.


Attachments

  • DSC_0016.jpg
    80 KB · Views: 19
  • DSC_0017.jpg
    111.8 KB · Views: 15
  • DSC_0025.jpg
    83.3 KB · Views: 12
  • DSC_0028.jpg
    86.7 KB · Views: 14
  • DSC_0031.jpg
    101.7 KB · Views: 12
  • DSC_0024.jpg
    66.2 KB · Views: 16

inky

Member

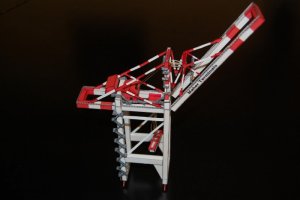

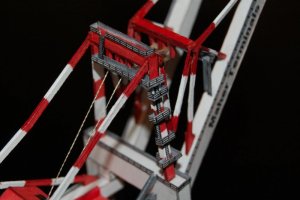

Few more pictures.


Attachments

  • DSC_0032.jpg
    82.7 KB · Views: 15
  • DSC_0033.jpg
    68 KB · Views: 13
  • DSC_0034.jpg
    114.1 KB · Views: 14

inky

Member
I just added another folder in the downloads section of more container cranes just like the Maher but in different color schemes of red, blue, yellow, white, orange, red/white, and blue/white.
