SANKA MARK B

lons fede

Member
Jun 18, 2022
26
68
15
27
hello hello, how long, how are you?
today I show you the construction of the sanka plane from the movie sky crawlers which is one of my favorite movies and I recommend you to see it for its history and animation (they are wonderful)
I made this model before but my cat thought it was his toy, hahahahaha, when I saw what he did I didn't know whether to laugh or hit him, I ended up laughing while giving the cat a long lecture (don't hit him or something). The cat looked at me as if asking why I was laughing hahahahahaha


my whole family laughed at me for telling the cat not to touch my things as if it would understand me hahahahahahaha
seriously the whole situation was very funny

Now I show you the previous model and how it goes hahahahahahaha
then follows the assembly of the new model

WhatsApp Image 2022-07-27 at 19.37.25.jpeg

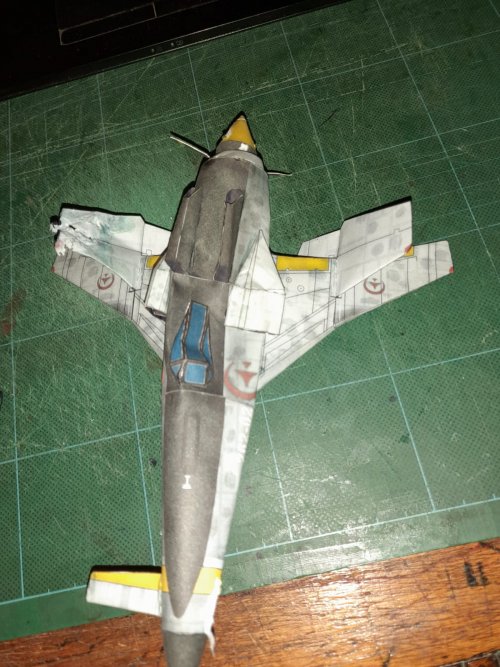

As you can see, I left it very bad. The funniest thing is that she was hanging from the ceiling and couldn't explain how the cat got to her, cat thing I guess.

WhatsApp Image 2022-07-27 at 19.37.27.jpeg

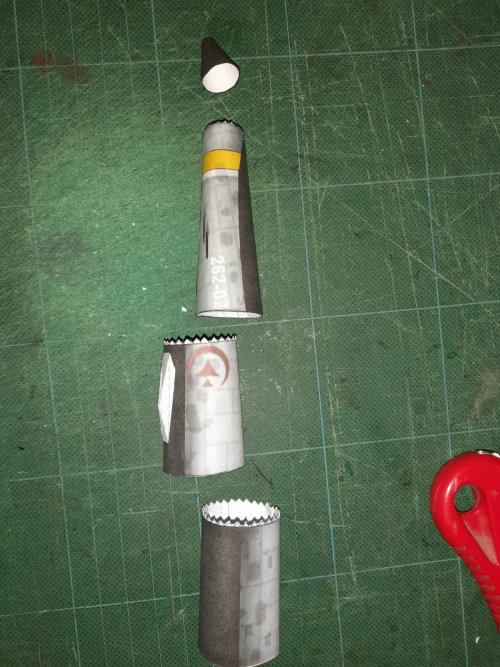

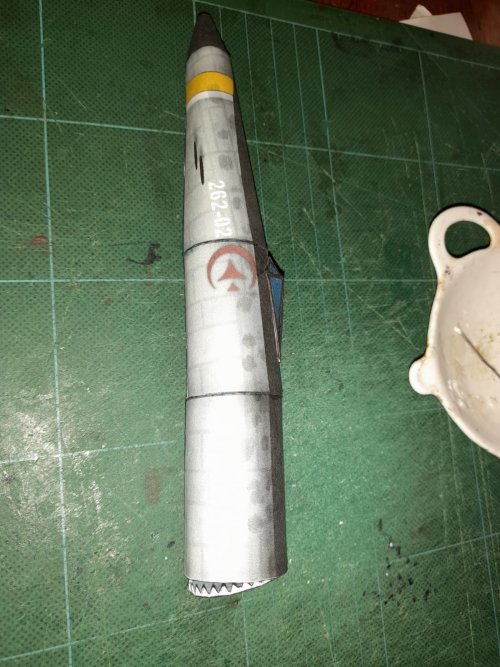

I started with the fuselage of the plane, this part is very intuitive as it is a bit obvious because all its parts are numbered from 1 to 7.

WhatsApp Image 2022-07-27 at 19.37.26.jpeg
Once the first three parts of the fuselage have been paid, start with the glass of the cabin, for that the lines are cut from the body as shown in the figure, this later helps to better glue the glass.


WhatsApp Image 2022-07-27 at 19.37.26 (1).jpegWhatsApp Image 2022-07-27 at 19.37.26 (2).jpeg

Once the glass of the cabin is glued, the last part of the fuselage is glued and piece number 7 and then 6 are placed to saw it. One must be allowed to dry before gluing the other.

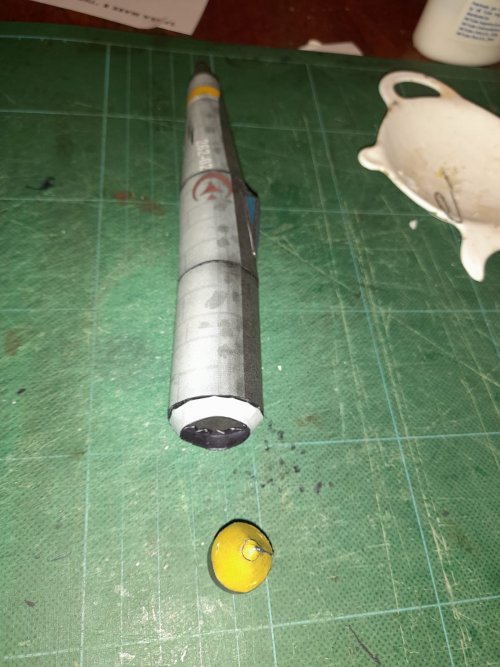

Once these parts are dried, I proceed with the elice of the plane. in this part it is better to make some tabs to improve the gluing of the pieces later

WhatsApp Image 2022-07-27 at 19.37.26 (3).jpegWhatsApp Image 2022-07-27 at 20.06.01.jpeg

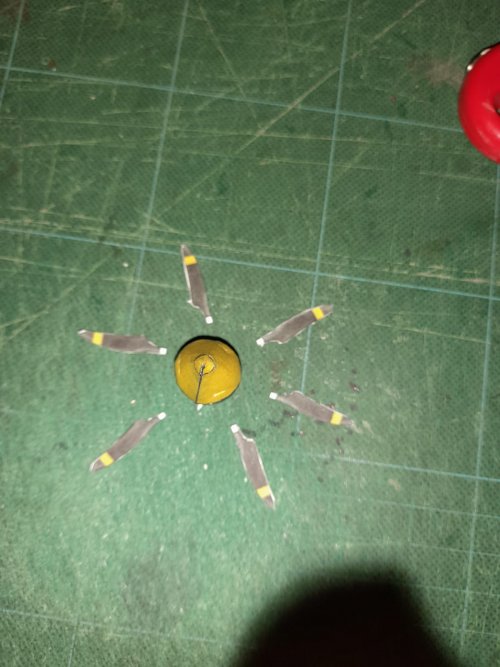

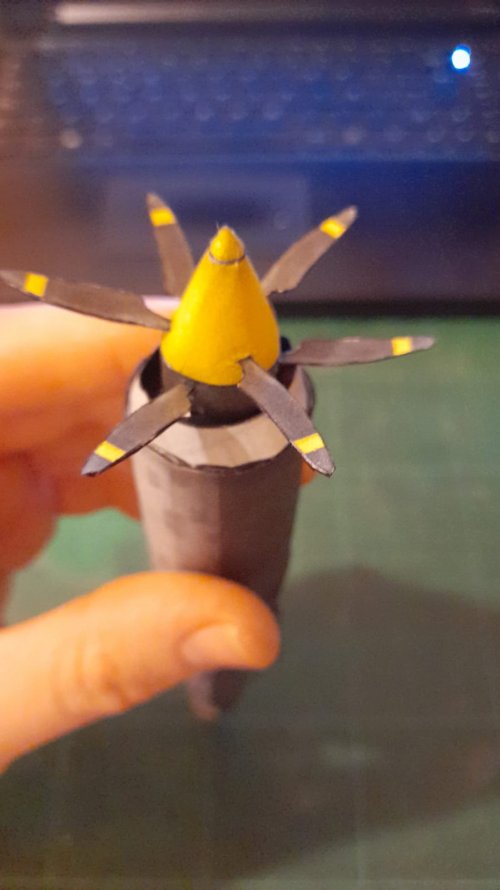

Once the first part of the propeller is made, the blades are made and they are placed according to the marks, previously cut, this part must be careful not to cut too much.

WhatsApp Image 2022-07-27 at 19.37.25 (1).jpegWhatsApp Image 2022-07-27 at 19.37.25 (2).jpeg

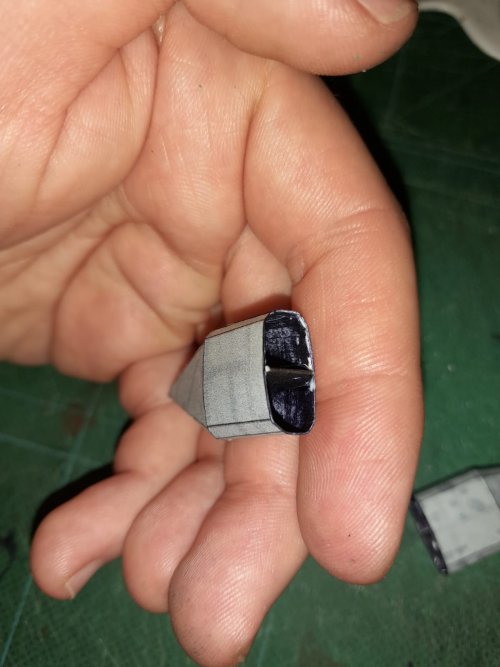

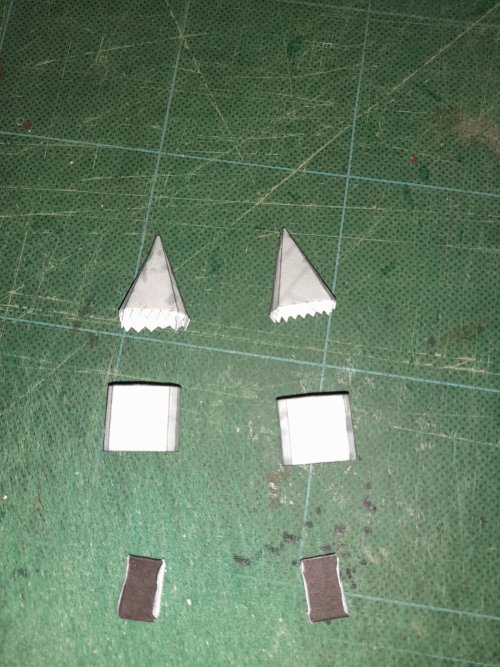

Once the propeller is finished, I start with the air intakes, they are divided into parts and I paint them black inside to make it look better.


I'm leaving this thread for today. I'll follow her tomorrow and by the way I'll leave you a photo of the aggressor who destroyed the previous model.
his name is simba and he is pure evil hahahahahaha, I adore that cat, he always sends some joke against me hahahahaha


WhatsApp Image 2022-07-27 at 20.10.23.jpeg


lons fede

Member
Jun 18, 2022
26
68
15
27
hello hello, how are you? follow the continuation of SANKA

WhatsApp Image 2022-08-03 at 18.17.19.jpegWhatsApp Image 2022-08-03 at 18.17.19 (1).jpeg

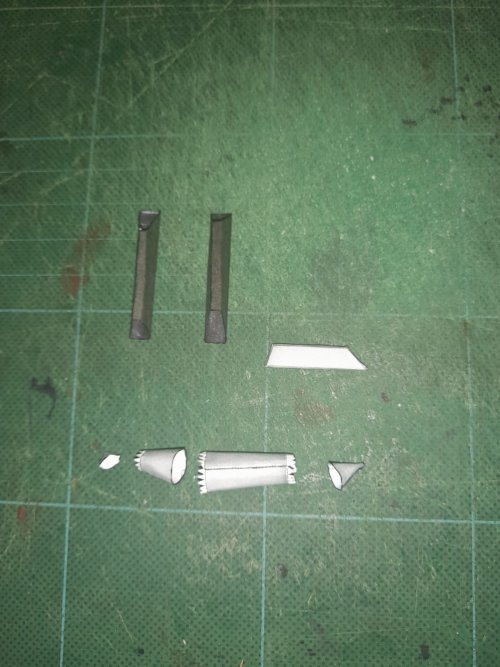

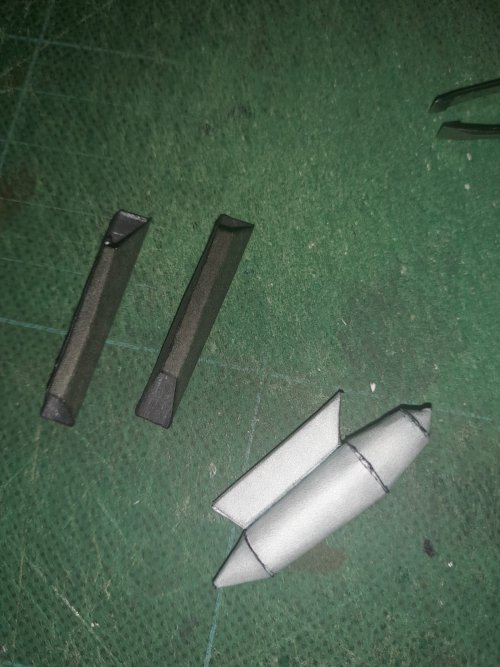

first we start with the accessories like the extra fuel tank and the coolers

WhatsApp Image 2022-08-03 at 18.17.20.jpegWhatsApp Image 2022-08-03 at 18.17.20 (1).jpegWhatsApp Image 2022-08-03 at 18.17.20 (2).jpeg

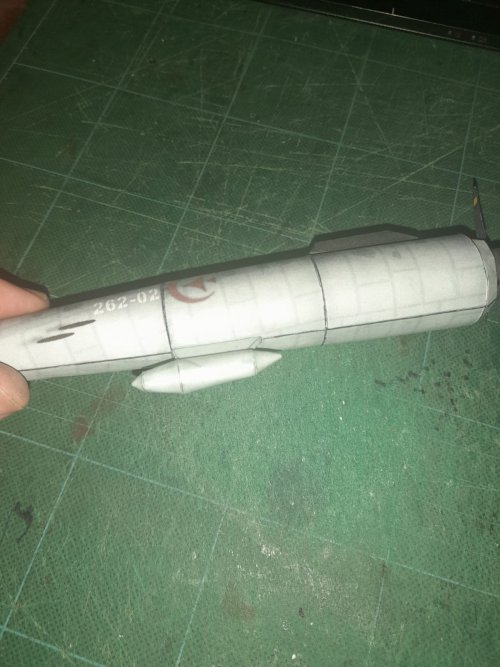

Once assembled, it is placed as shown in the images, they are small pieces so be careful not to lose them.

WhatsApp Image 2022-08-03 at 18.17.20 (3).jpeg

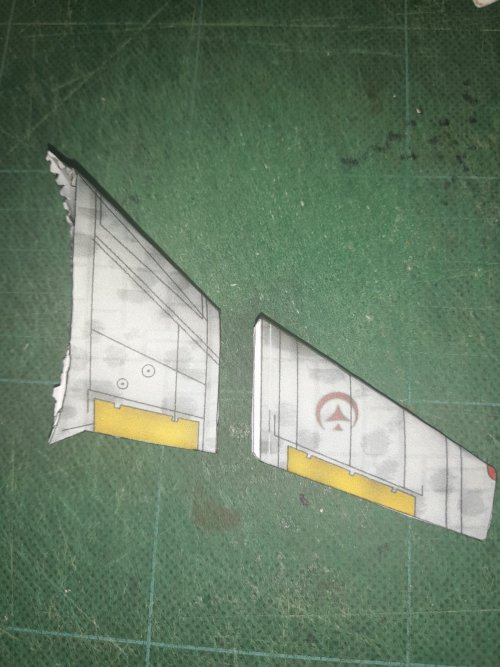

with the wings you have to be patient when putting them together and sticking them

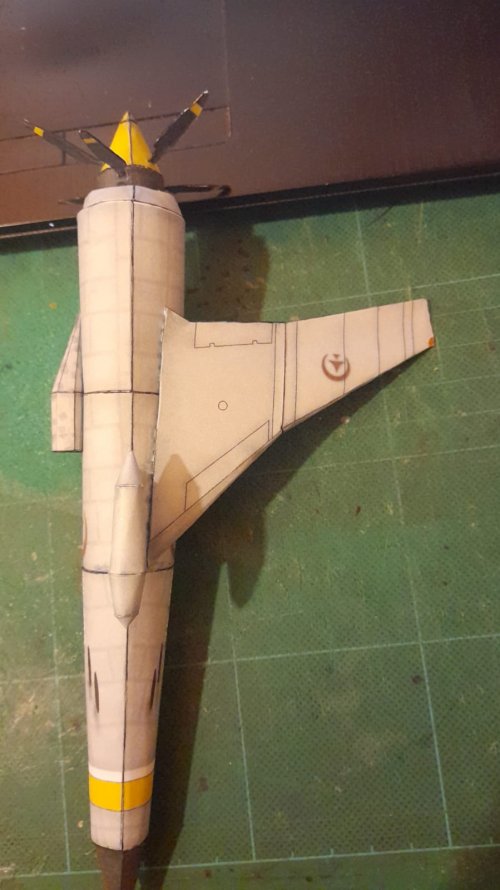

Once the two wings are done, they are placed on the fuselage and this is the most complicated part to do, since there is no single way to place them.

WhatsApp Image 2022-08-03 at 18.41.43.jpegWhatsApp Image 2022-08-03 at 18.41.52.jpeg


I already put the first of the two wings, so let's see that the next one has to be put in the same way so that it is not crooked in relation to the first.


lons fede

Member
Jun 18, 2022
26
68
15
27
well today we finished the model
try to glue the second wing as symmetrical as possible
after carefully gluing the wing and taking my time

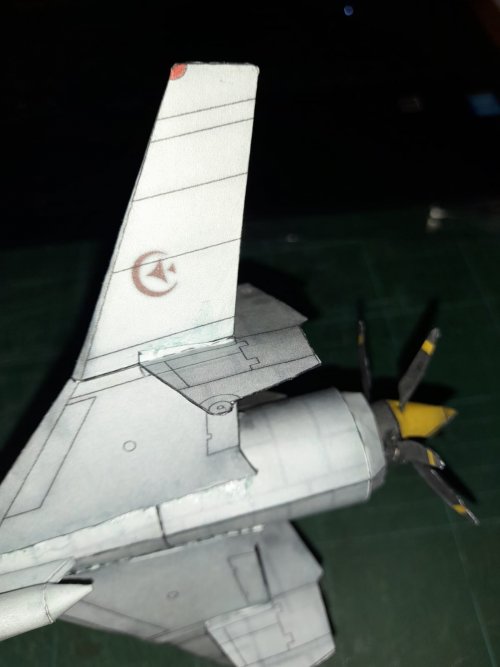

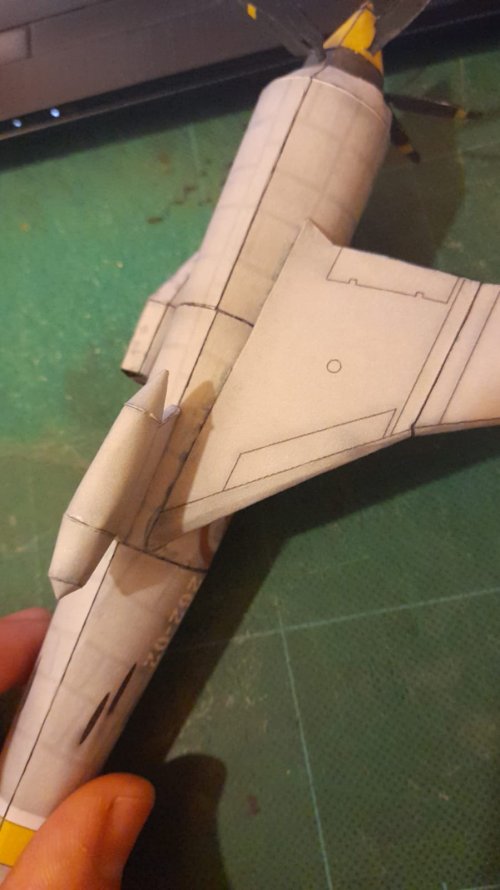

placed the rudders as the photos show


WhatsApp Image 2022-08-03 at 23.25.52.jpegWhatsApp Image 2022-08-03 at 23.25.53.jpeg

after this, he glued the ailerons on the nose

WhatsApp Image 2022-08-03 at 23.25.23.jpeg

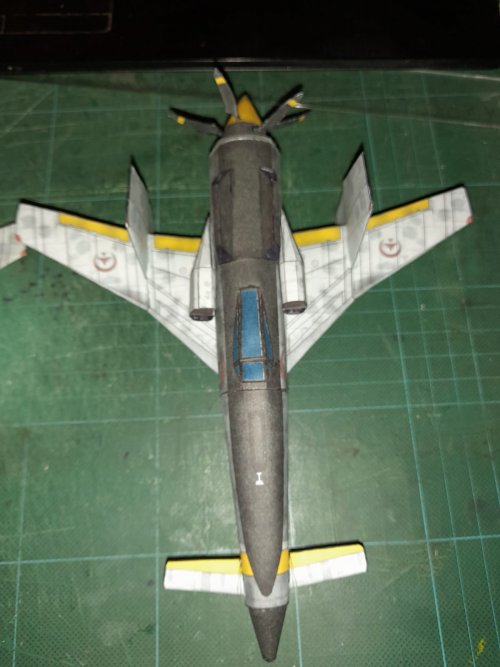

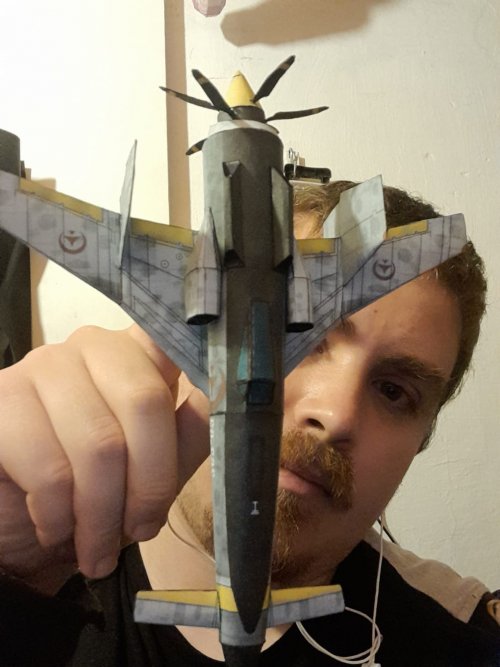

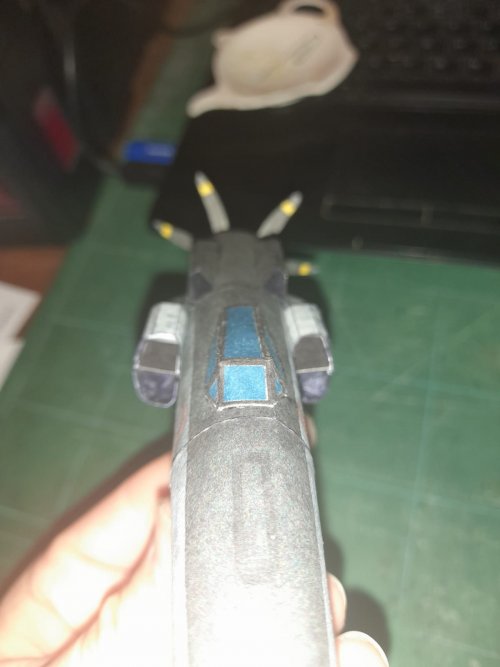

ready once everything is finished, we already have our SANKA MARK B ready to fly.
hope you like
WhatsApp Image 2022-08-03 at 23.25.24.jpeg

I like this aircraft very much, :):):toast:

my next project, (somewhat ambitious) will be the spaceship NSEA PROTECTOR from the movie GALAXY QUEST.:eek::bulgeeye::):cool:


zathros

*****SENIOR ADMINISTRATOR*****
Staff member
Administrator
Moderator
Apr 6, 2013
12,616
8,120
228
Very nice! What is that plane from? :)

  • Like
Reactions: mijob

Chuffy70

Active Member
Jun 5, 2022
97
188
40
Norwich UK
Will have to give The Sky Crawlers a look... Interesting and odd design there, looks like a Sea Fury mixed with a Focke-Wulf 109!

Top marks for Simba marking the kill! :hammerhead:
