Reverse loop wiring

shamus

Registered Member
Dec 17, 2000
3,489
0
36
85
UK

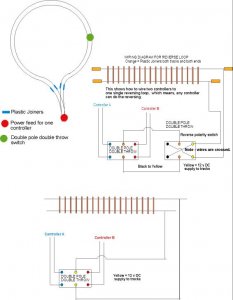

I was asked for a diagram for a reverse loop, here it is.

Shamus




Attachments

  • reverseswitch.jpg
    43.2 KB · Views: 133

t. alexander

Member
Jun 21, 2002
540
0
16
59
Attalla Al.
Visit site
Had a nice visit last night. let's see, I gabbed with 88fan, Vic, Tyson, Mcfortner, Errol (up way past his bed time) Marty,. Seems Scottie was having trouble beaming up jmarksberry but finally got him too.

t.
