OLSEN COFFEE - PART 1

carlos filipe

carlos filipe
CLEVER MODEL Mercantile brick building 1/48
I love the photo realist textures of these kits and being able to print as many copies we need, gives room to a lot of creativity.

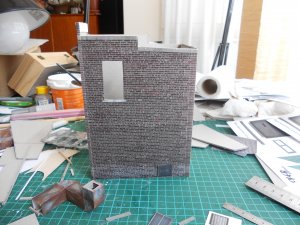

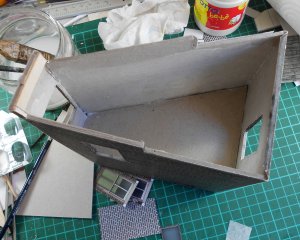

As a system I glue the main parts to 2mm cardboard. This gives strength to the model.

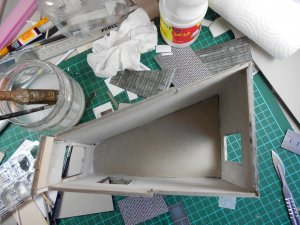

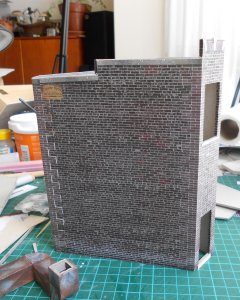

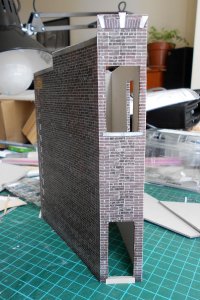

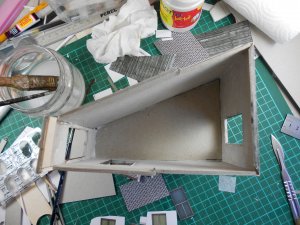

In this one was a little tricky as I wanted to avoid to cut the facades by the corners, so I tried to calculate the thickness of the card and work with two sub assemblies for the outer walls. A little unpractical to have the walls dangling, but after joining the four walls it compensates the mess.

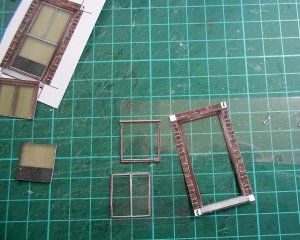

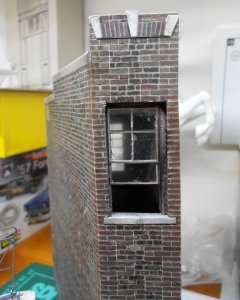

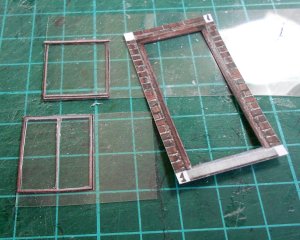

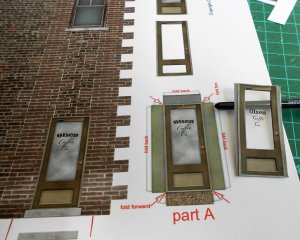

As usual, I mess with the window frames, always cutting too thick or too thin. That is my weak point that ruins my models in a very obvious way.

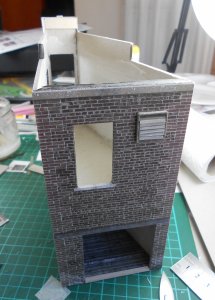

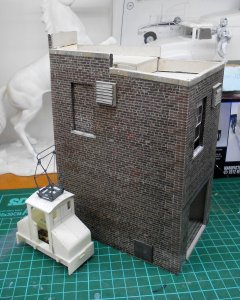

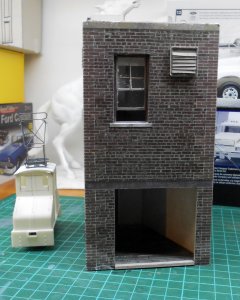

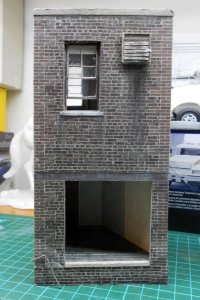

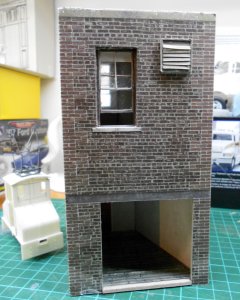

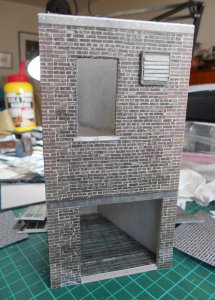

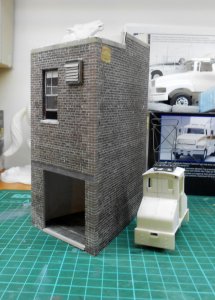

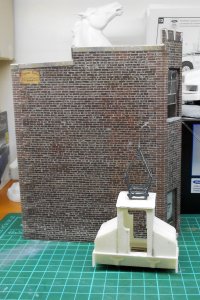

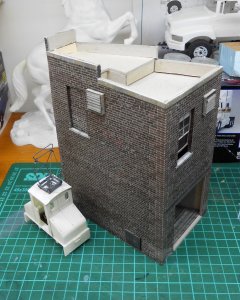

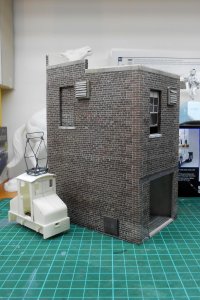

I heightened the building so I could install later on a platform at the level of the cars. I intend to use this model in a micro layout.

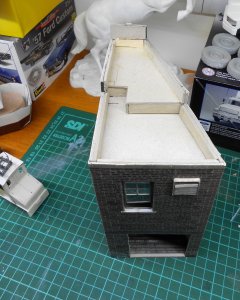

I remade the entire terrace using extra printings and thin card.

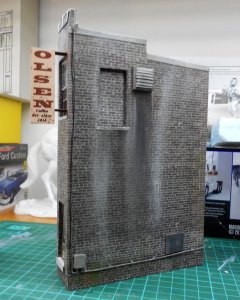

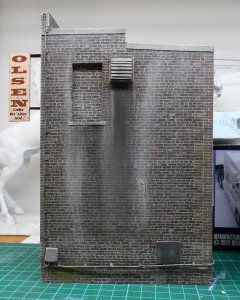

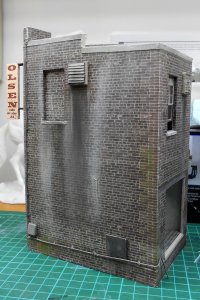

To disguise two joints I installed an electric wire connection encased in lead (hope this was in practice in the USA in early XXth century).

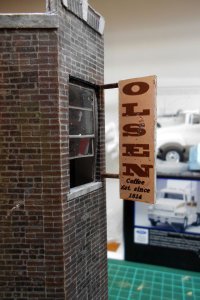

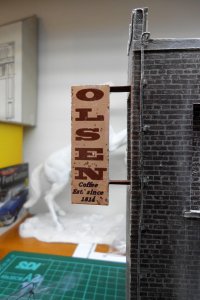

After gluing in place the window above the main door, clumsy manipulation ruined it. So I designed a OLSEN COFFEE sign that I placed near the window blocking the view to the bad part of the window.


Attachments

  • olsen-coffe (1).JPG
    olsen-coffe (1).JPG
    349 KB · Views: 22
  • olsen-coffe (2).JPG
    olsen-coffe (2).JPG
    222.5 KB · Views: 22
  • olsen-coffe (3).JPG
    olsen-coffe (3).JPG
    195.3 KB · Views: 22
  • olsen-coffe (4).JPG
    olsen-coffe (4).JPG
    364.7 KB · Views: 22
  • olsen-coffe (5).JPG
    olsen-coffe (5).JPG
    379.3 KB · Views: 22
  • olsen-coffe (6).JPG
    olsen-coffe (6).JPG
    1.3 MB · Views: 72
  • olsen-coffe (7).JPG
    olsen-coffe (7).JPG
    1.2 MB · Views: 38
  • olsen-coffe (8).JPG
    olsen-coffe (8).JPG
    2.2 MB · Views: 25
  • olsen-coffe (9).JPG
    olsen-coffe (9).JPG
    458.2 KB · Views: 21
  • olsen-coffe (10).JPG
    olsen-coffe (10).JPG
    418.3 KB · Views: 79

carlos filipe

carlos filipe

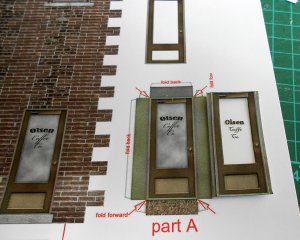

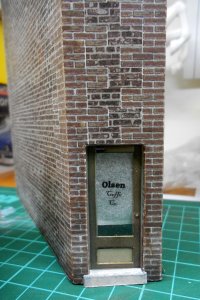

I misspelled coffee when I was designing the glass pane sign, it became OLSEN COFFE (cough?!). It adds some humour, I hope.


Attachments

  • olsen-coffe (11).JPG
    olsen-coffe (11).JPG
    498 KB · Views: 17
  • olsen-coffe (12).JPG
    olsen-coffe (12).JPG
    635 KB · Views: 17
  • olsen-coffe (13).JPG
    olsen-coffe (13).JPG
    357.8 KB · Views: 17
  • olsen-coffe (14).JPG
    olsen-coffe (14).JPG
    1.9 MB · Views: 20
  • olsen-coffe (15).JPG
    olsen-coffe (15).JPG
    1.9 MB · Views: 16
  • olsen-coffe (16).JPG
    olsen-coffe (16).JPG
    512.8 KB · Views: 70
  • olsen-coffe (17).JPG
    olsen-coffe (17).JPG
    488.8 KB · Views: 17
  • olsen-coffe (18).JPG
    olsen-coffe (18).JPG
    453.8 KB · Views: 61
  • olsen-coffe (19).JPG
    olsen-coffe (19).JPG
    1.2 MB · Views: 17
  • olsen-coffe (20).JPG
    olsen-coffe (20).JPG
    1.2 MB · Views: 30

carlos filipe

carlos filipe

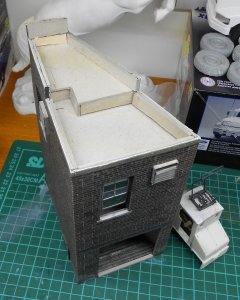

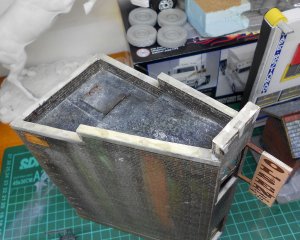

The new terrace was texturized with white glue after I added some strips to imitate the insulation joints.


Attachments

  • olsen-coffe (21).JPG
    olsen-coffe (21).JPG
    1 MB · Views: 20
  • olsen-coffe (22).JPG
    olsen-coffe (22).JPG
    941 KB · Views: 19
  • olsen-coffe (23).JPG
    olsen-coffe (23).JPG
    1.1 MB · Views: 19
  • olsen-coffe (24).JPG
    olsen-coffe (24).JPG
    823.3 KB · Views: 19
  • olsen-coffe (25).JPG
    olsen-coffe (25).JPG
    909 KB · Views: 19
  • olsen-coffe (25).JPG
    olsen-coffe (25).JPG
    909 KB · Views: 19
  • olsen-coffe (26).JPG
    olsen-coffe (26).JPG
    465.8 KB · Views: 81
  • olsen-coffe (27).JPG
    olsen-coffe (27).JPG
    485.1 KB · Views: 27
  • olsen-coffe (28).JPG
    olsen-coffe (28).JPG
    1.1 MB · Views: 18

carlos filipe

carlos filipe

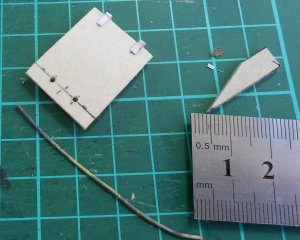

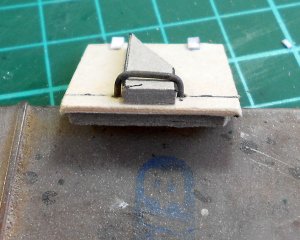

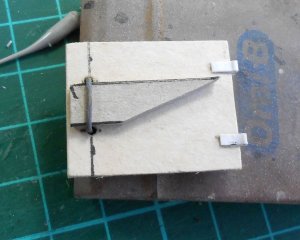

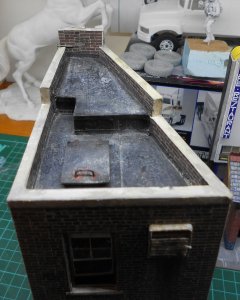

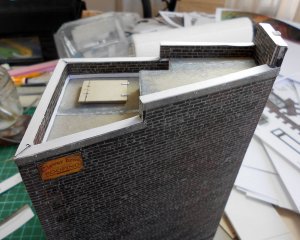

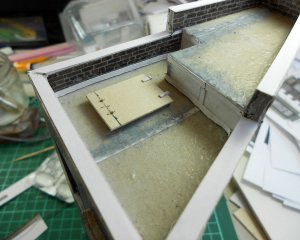

The parapets on the terrace were puttied with Tamiya and then lightly sanded. The tar insulation was painted with Tamiya flat black. A hatch to access to the roof was added. it still looks too bare, but I'm going to detail it when I insert the model in the planned micro layout.


Attachments

  • olsen-coffe (29).JPG
    olsen-coffe (29).JPG
    950.6 KB · Views: 17
  • mercantile-p2-002.jpg
    187.5 KB · Views: 17
  • mercantile-p2-003.jpg
    219.8 KB · Views: 17
  • mercantile-p2-004.jpg
    214.2 KB · Views: 18
  • mercantile-p2-005.jpg
    209.7 KB · Views: 17
  • mercantile-p2-006.jpg
    430.3 KB · Views: 18
  • mercantile-p2-007.jpg
    336.3 KB · Views: 79
  • mercantile-p2-009.jpg
    273.7 KB · Views: 17
  • mercantile-p2-010.jpg
    355.5 KB · Views: 16

carlos filipe

carlos filipe
More photos...
I'm not superstitious, but I feel kind of "jinxed" if I post only some photos when I'm beginning a project. I prefer to publish after the work has taken shape and I feel I can make it. Otherwise it turns too much pressure on me.


Attachments

  • mercantile-p2-011.jpg
    397.1 KB · Views: 77
  • mercantile-p2-012.jpg
    304.9 KB · Views: 22
  • mercantile-p2-013.jpg
    434.5 KB · Views: 49
  • mercantile-p2-014.jpg
    474.4 KB · Views: 22

zathros

*****SENIOR ADMINISTRATOR*****
Staff member
Administrator
Moderator
Apr 6, 2013
12,499
7,996
228
I've walked by many buildings like that when I was young. I never knew they were so small. I guess I just got larger!! Superb job Carlos!! :)

  • Like
Reactions: carlos filipe

zathros

*****SENIOR ADMINISTRATOR*****
Staff member
Administrator
Moderator
Apr 6, 2013
12,499
7,996
228
You somehow got it just right! Nothing is lacking. Maybe a drain pipe on the corner of one of the buildings, but that's it. :)


carlos filipe

carlos filipe
Thank you Zathros. I thought of the drain pipe, but was not sure how they look in this kind of buildings.
So you mean a hole in the terrace draining the waters through a pipe to the façade where there'll be a collector (sorry cannot remember the name) and a downpipe, ending in a curve.
That is a very good detail, I'll do it.


zathros

*****SENIOR ADMINISTRATOR*****
Staff member
Administrator
Moderator
Apr 6, 2013
12,499
7,996
228
Yes. Some samples. :)
