So, I proceeded to the assembly of distribution pipe.
Once again I realized how I do not like pipes and especially bending ones, with addition of paper, which strives to exfoliate at the earliest opportunity. :)
Extension tubes are not glued, because i don't know if the length will be enough for connection to filters tubes.
I didn't glued the pipe yet, since it was assembled only to help fit carburetors.








Although the black paint has already arrived, I was doubly glad, as I found
black wire with a suitable diameter for pipes from the carburetor to the blocks
and another one for pipes from the radiator to the blocks. So less mess with the paint ;)
In addition, this wire is stronger than solder one.

On the left side, a bar with carburetors is attached to the edge of the block and adjusting the pipes was easy.
On the left side I sweated a little, because the bar is kept in the air on two pipes, and it was necessary to measure a lot and adjust it, so that everything would sit on one level.
As expected - distribution pipe and throttle stem helped to achieve it.








Unbelievable! Outstanding work!

  • Like
Reactions: snake7

zathros

*****SENIOR ADMINISTRATOR*****
Staff member
Administrator
Moderator
Apr 5, 2013
13,499
9,551
228
That engine was designed for the soldier in the field to work o. You are showing a history of genius of necessity being the mother of invention. That engine jus gts better and better. I'd make that engine model on it's own merits, and call it a day. You just keep adding more and more, I expect it to start running!! ;)

  • Like
Reactions: snake7 and xaero892

snake7

Well-Known Member
Dec 13, 2004
419
1,148
93
46
Israel
Thank you Rhaven Black, Jacopo and Zathros

@snake7 I have to say that this project is really taking on a life all its own! I really like how you are setting up the build thread. I like how you show the section that you are working on at the time and then show the actual work that you do and the final outcome of that particular section.
I think that I may implement this same technique. It makes sense for making perfect instructions.
KEEP UP THE GREAT WORK!!!

Well, I try to set a build thread as i would want to see by myself, because I understand how helpful is organized thread when you build the model yourself and you need a reference to answer your questions, bypass mistakes and see the details, you cannot in drawings.


By the way, in this models drawings are modern 3D ones, but they left them grey filled and that is not helpful, when looking for small details.

You just keep adding more and more, I expect it to start running!! ;)

It can not, because the designer omitted fuel lines, leading from carburetors... but I'll figure out something, i promise :)




Continued to equip the engine

Assembled oil filter







When gluing the sphere of the filter case, I used the method with holes.
I put a little smaller hole on the cylinder and fix it with glue.
Then I put on one smaller and fix it and so on until the sphere is closed.
In this way, the tabs bend and connect evenly.









And the filter is ready





Maintenance step and crankcase dry breather













Set everything in place







Next step is the radiator!


Dagger

Active Member
Feb 11, 2019
215
456
40
Wonderful work Igor! The detail of that engine is great, you are achieving something fantastic.

  • Like
Reactions: snake7

Gandolf50

Researcher of obscure between war vehicles...
Staff member
Moderator
Jan 28, 2013
1,332
1,585
96
New Mexico USA
It can not, because the designer omitted fuel lines, leading from carburetors... but I'll figure out something, i promise
Some good info on the Sherman Tank Site HERE
and all the pictures in the world HERE

I never really thought about it..but this engine is a Monster!! Talk about 5 engines on a central crank!! OMG!


Attachments

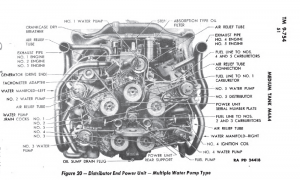

  • M4A4-labeled-image-front-small.png
    629.8 KB · Views: 6

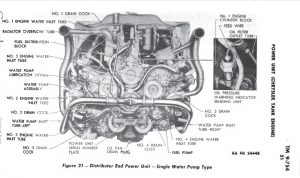

  • A57one-water-pumpsmall.png
