Klingon Bird of Prey (1:400 Redraw of Clever Santoro)

[AdmiralGR]

Let's give this one ago!

This is the 1:400 Redraw of the Clever Santoro Bird of Prey.

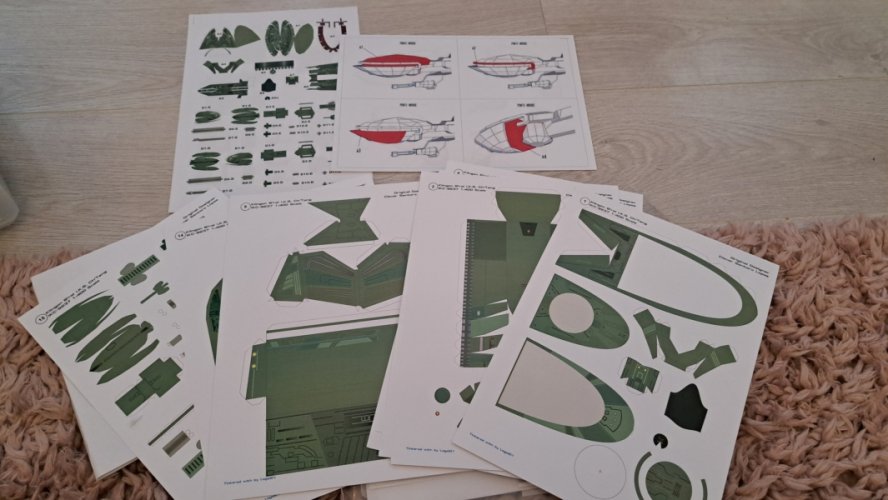

I have a card copy of the 1:400 and a paper copy of the original and its instructions. I'll try and match the new parts to thier old part reference so I can use the instructions as a bit of a guide!



[micahrogers]

Nice! I'll be watching this one as well.



[mijob]

Lets bring it on, your builds are fun to watch.



[AdmiralGR]

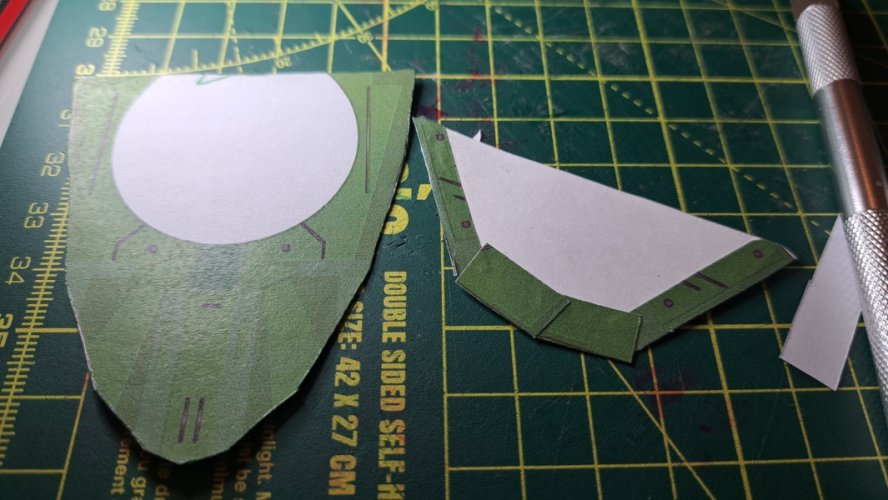

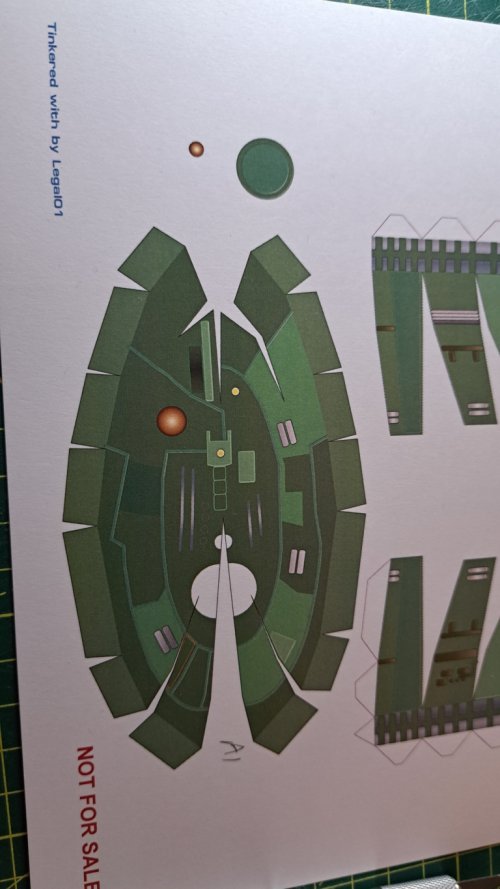

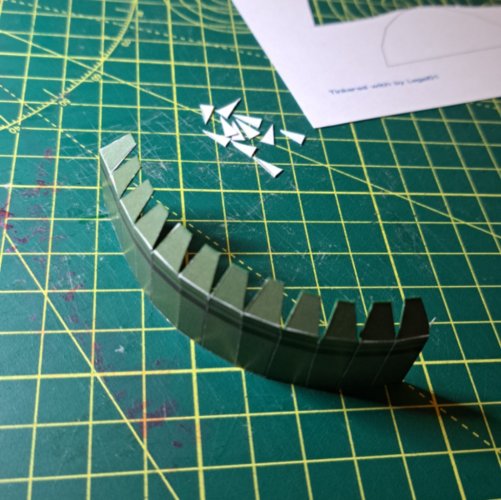

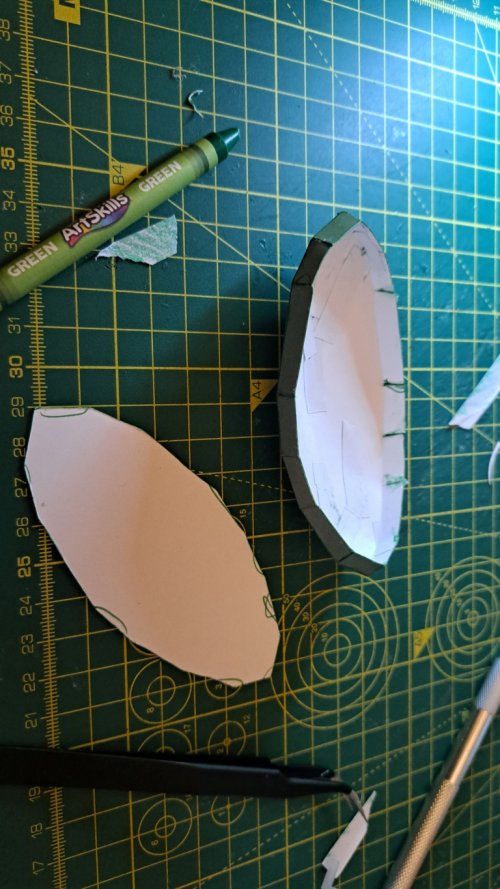

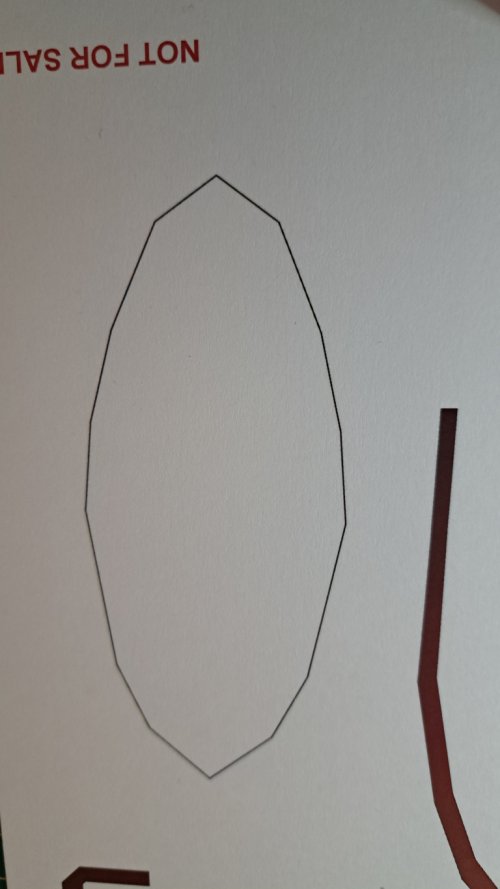

I've started with the bottom of Page 2 and odd shape from Page 5.

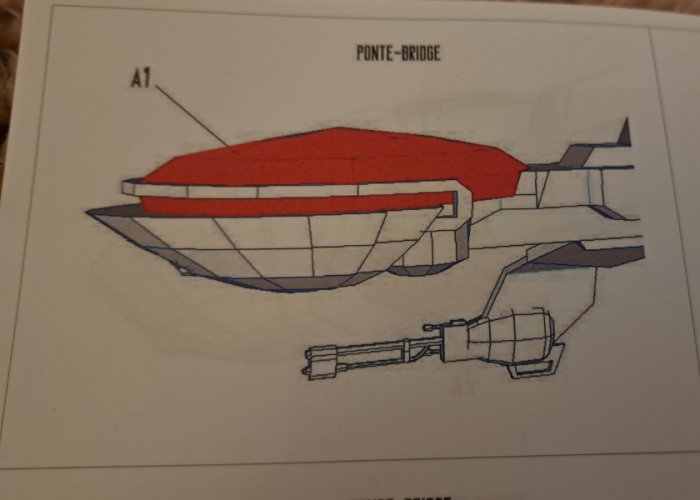

They match to part A1 from the original scale instructions.



[Revell-Fan]

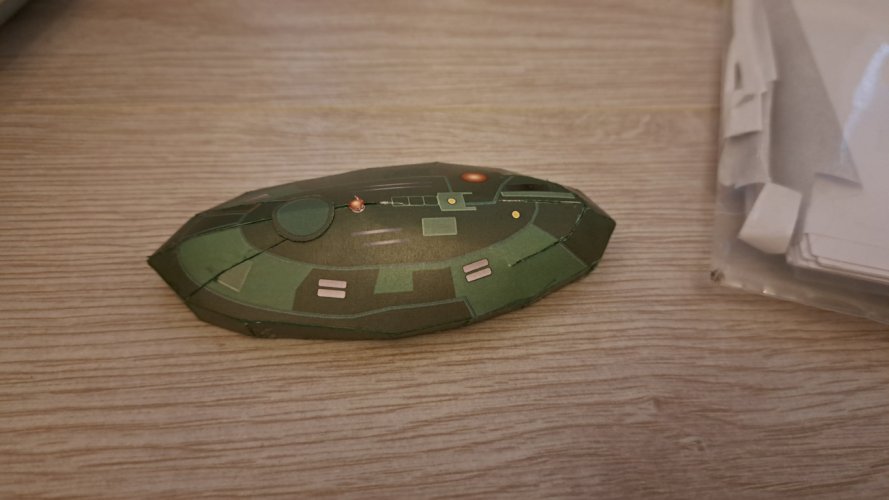

Great start!

When I look at the finished head piece I can see that the curves may benefit from more edges. This is in no way caused by your build skills but a result of the 3D model used for unfolding. I once smoothed out a nice BB-8 model which was very edgy. It is tedious but it can be done.

I'm looking forward to seeing your progress.



[Rhaven Blaack]

It looks like you are off to a good start! I am looking forward to seeing how this turns out!



[AdmiralGR]

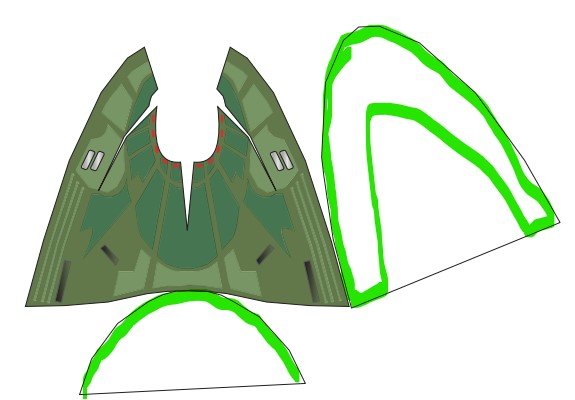

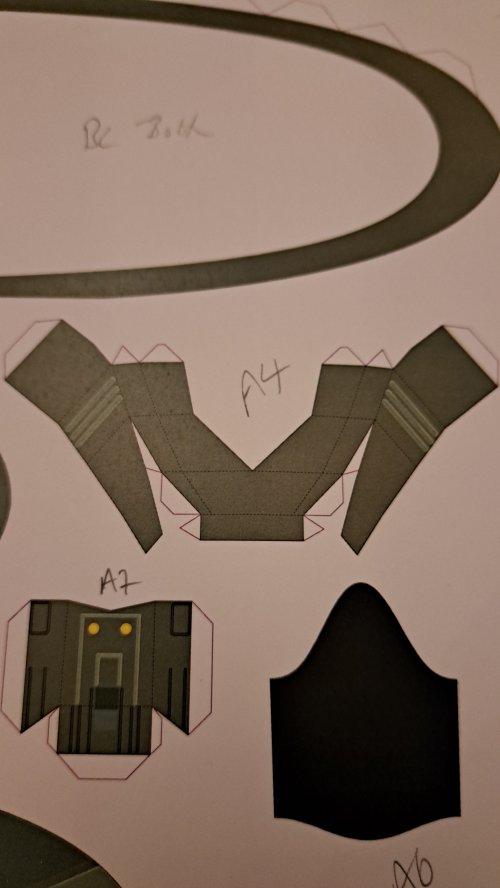

Found an issue with the part at the bottom pf P4.

If you see in the picture attached, the highlighted green bits should have "green BOP" paint on them as they are visible. The original model has this but not the redraw.

I'll reprint a could of the other pages on paper and stick it over!



[mijob]

And again of with a great start. Nice way to fix the problem.



[AdmiralGR]

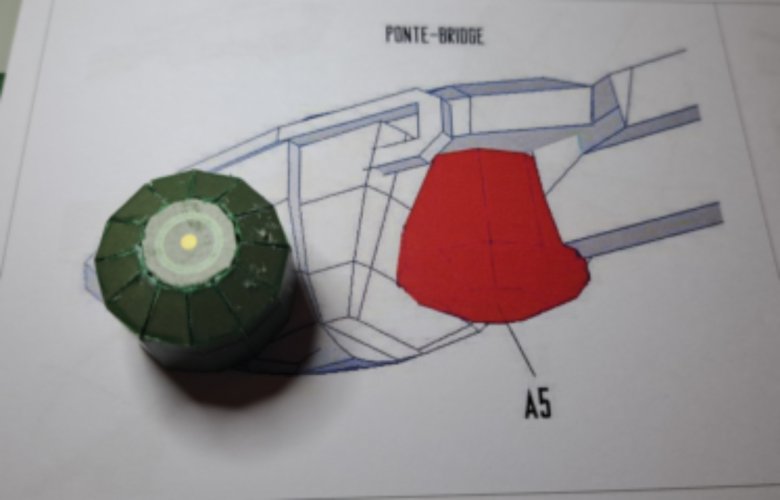

Top of page 4 is original instruction part A5



[AdmiralGR]

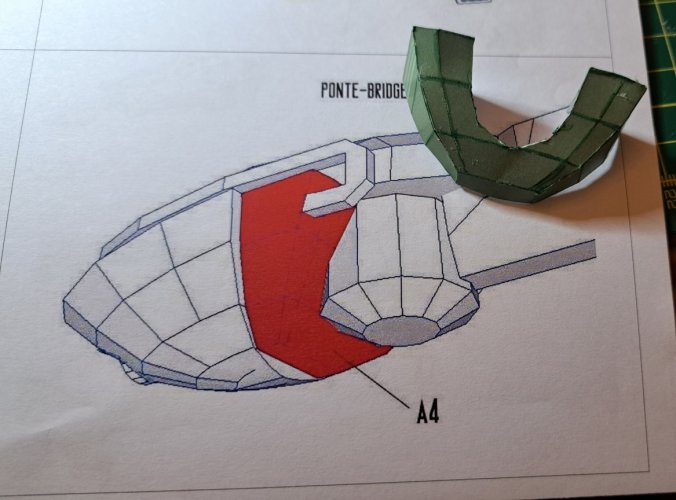

Middle of P1 is part A4



[AdmiralGR]

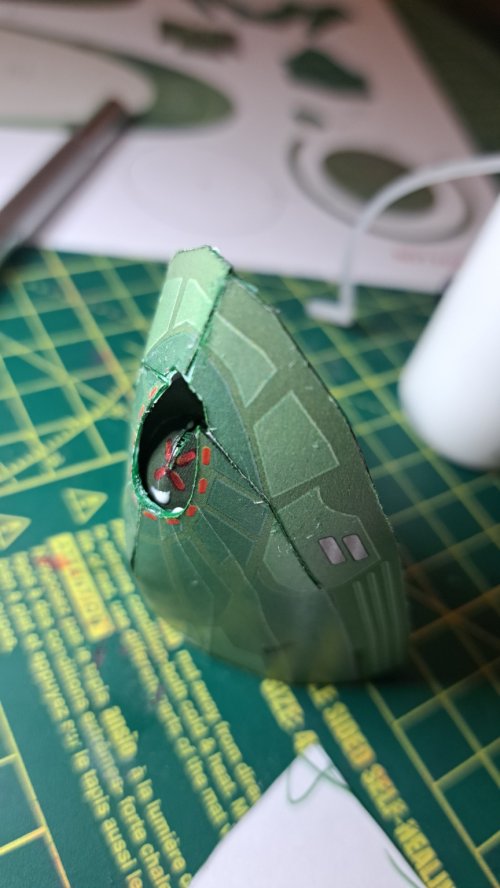

Dry fit of Part A5 and Part A4

A4 needed a trim to get a better fit. It will also need some filler paper



[D-WHALE]

Dry fit of Part A5 and Part A4

A4 needed a trim to get a better fit. It will also need some filler paper

looks like you use a pen for edge coloring?



[spaceagent-9]

GREAT TO SEE THIS!



[AdmiralGR]

looks like you use a pen for edge coloring?

Yes, I somewhat regret that now. But I can't change it



[AdmiralGR]

Here is the paper layer to cover the plain card!



[AdmiralGR]

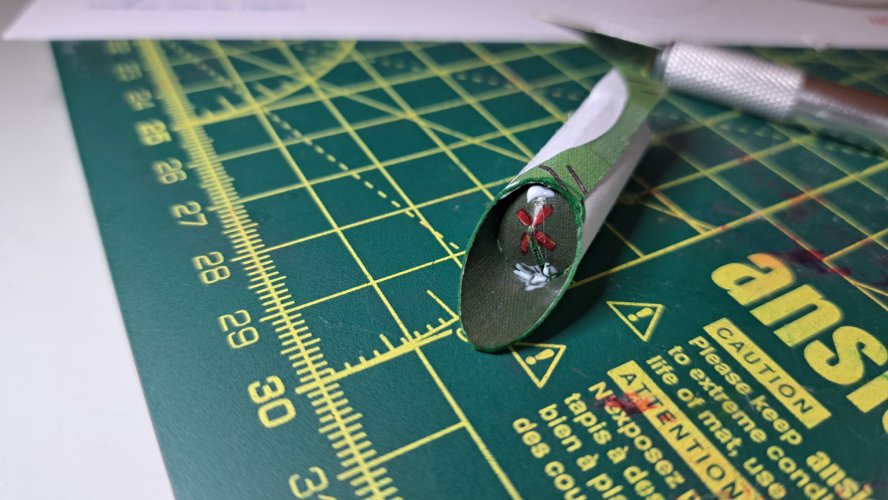

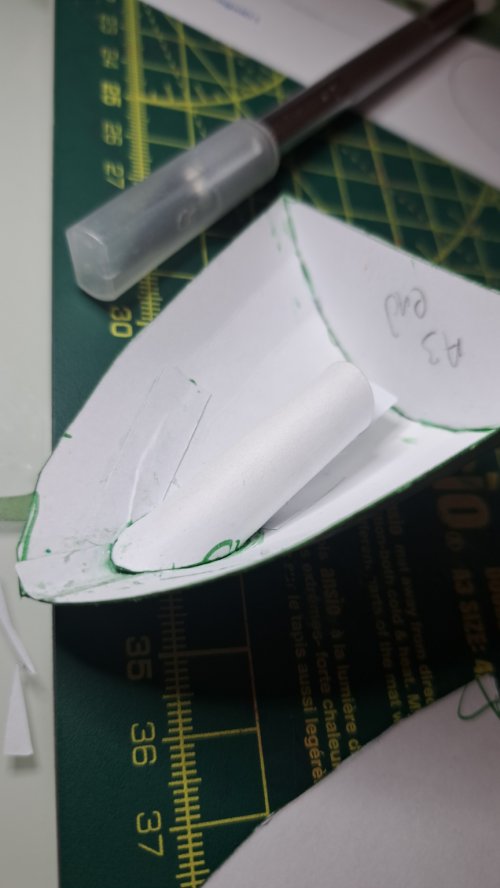

Bit of construction arround the main torpedo tube.



[Revell-Fan]

Nice!



[mijob]

Great work.



[AdmiralGR]

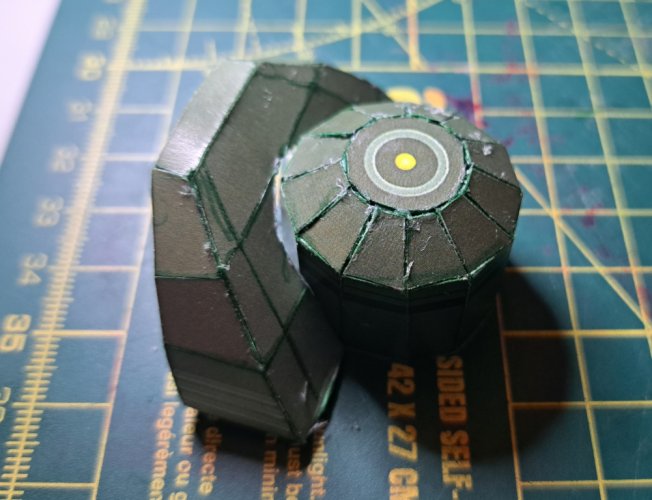

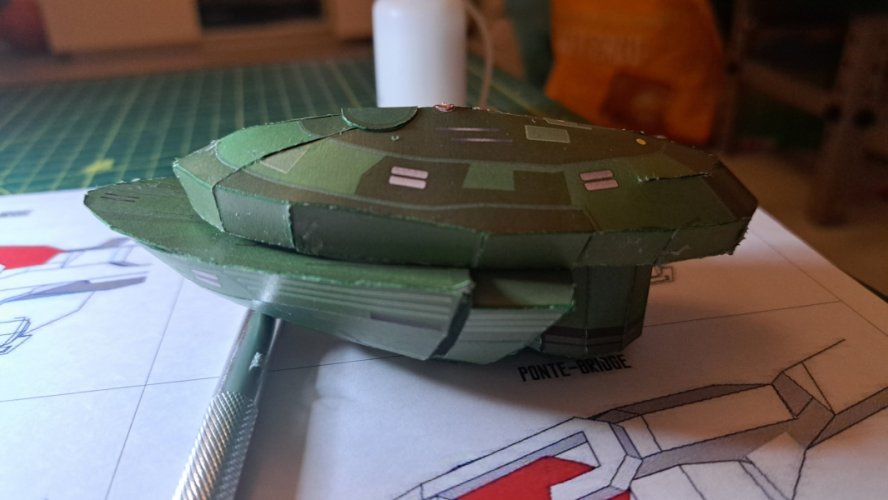

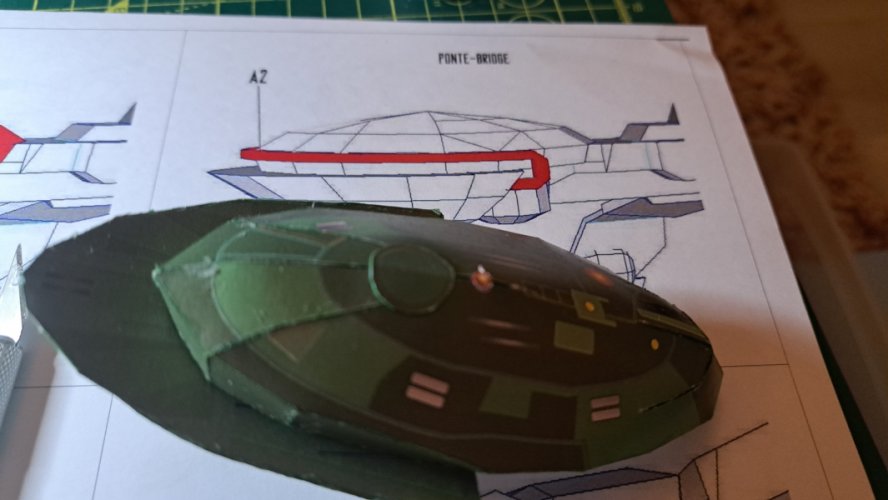

No idea how far back the bridge dome should be on top of the lower lip.

I'll build the red wrap round part (in background instructions part A2) and use it as a guide.

Extra pic of dry fit



[Rhaven Blaack]

This is coming together nicely!!!
