Dr Tetrode's Valkyrie build.

ARMORMAN

FOUNDATION CORNERSTONE
Oct 3, 2009
1,265
463
38
NW Indiana
armorman.deviantart.com
Thanks guys!

Step by step, in unknown order, but sure is fun solving the 'puzzle'.

I have a question, what are some methods to coloring paper models? I know if you can get a kit in color and print in color, that works.

Thanks,

Scott

Happy cutting!
I have used markers and paint mostly.

If you decide to use paint, get a can of sandable auto body primer for the base coat and spray several light coats onto the model.

I then either use the GW colors or Tamiya paints for the color.


dr_tetrode

New Member
Jan 8, 2019
51
87
0
60
Amorman, thanks for the info on painting. Any special kind of markers? Any recommendations? I have seen Sudsy's BMP in person, and I do like the idea of doing that.

Also, thank you for posting these models, I am having a lot of fun working on it. This is the beta build, ie. how do I put it together, model.

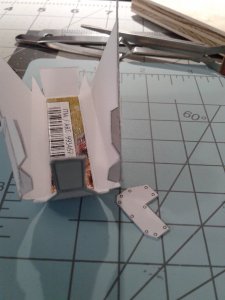

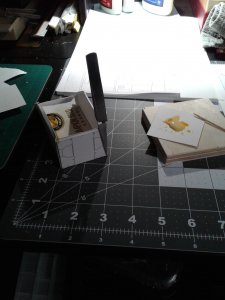

Putting the main compartment together.

20190613_212521.jpg 20190613_212542.jpg 20190615_213716.jpg

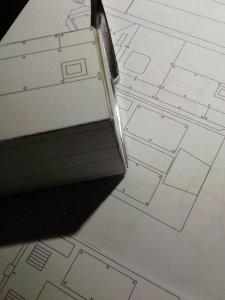

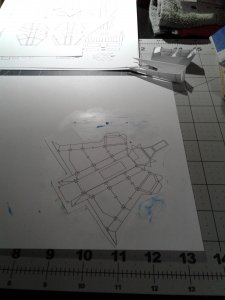

Found a gap, cause 'tab' and adding thickness by laminating and folding.

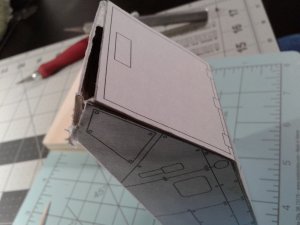

Removed the offending tab, and now closes better.

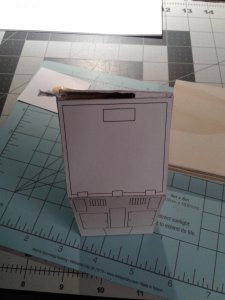

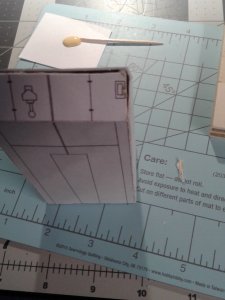

20190616_201521.jpg 20190616_201526.jpg 20190616_201536.jpg 20190609_204156.jpg 20190616_201942.jpg

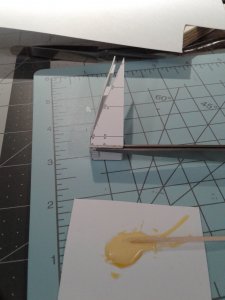

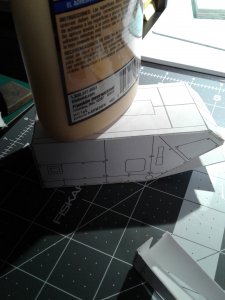

First attempt to use UHU, glue, goes on blue, drys clear, for lamination.

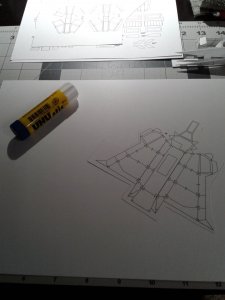

20190616_203730.jpg 20190616_204008.jpg
Seems to lie flat, looking better!

I removed the tabs, that were laminated and cut around, because when you score and fold, they prevent the sides for sitting correctly under the top. So, I, the novice, still need something for registration, so I cut new 'tabs' and glued them on where I wanted the sides to attach under the top. I just glued it up and it looks pretty good.
Need more pictures..... Have to send them from the tablet.
Scott ;-) Have fun!


zathros

-----SENIOR----
Administrator
Moderator
Apr 6, 2013
10,584
5,772
83
Make sure if you a marker for edging you try it on some of the scrap paper of the exact same that is being used on the model so you can see how much it bleeds, and see which marker will not bleed right through the paper where you don't want it.. Seen many a model knocked down a few notches because of that. I think chalk works really well, and can be sealed with clear coat. Marker/paint works well, just have to watch the bleeding through from the inside to the outside. :)


Sudsy

New Member
Sep 29, 2018
216
496
0
37
Looking good! I didn't know UHU sticks had color change versions!


dr_tetrode

New Member
Jan 8, 2019
51
87
0
60
Zathros, thanks, that is a good idea, test before using on model.

Got my pictures from the tablet.

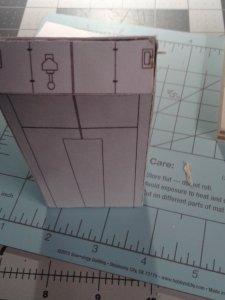

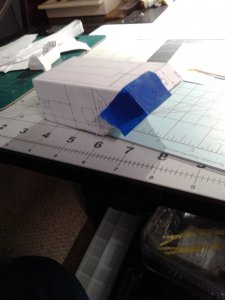

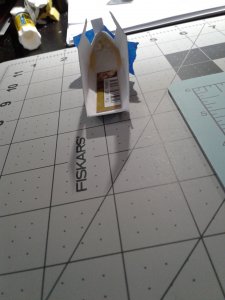

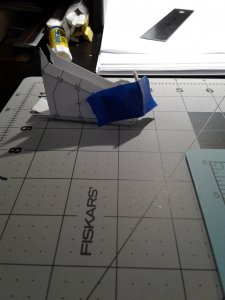

Continuing on with the 'tabs', the assembly is finished.

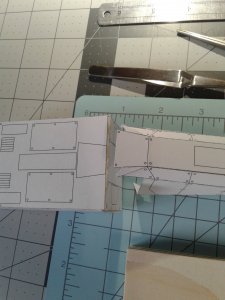

20190618_193914.jpg 20190618_194711.jpg20190618_195141.jpg

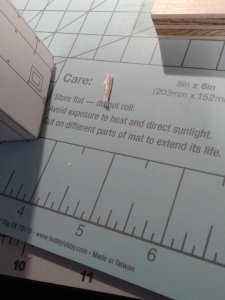

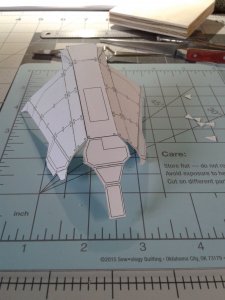

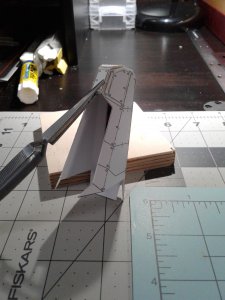

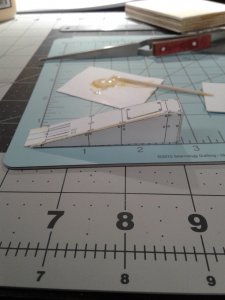

UHU glue experiment, continued. I am really liking this. I gut out the cockpit and scored and folded, and formed it. It stayed flat, while working with it.
20190618_183646.jpg 20190618_184421.jpg 20190618_184451.jpg 20190618_185610.jpg 20190618_185616.jpg

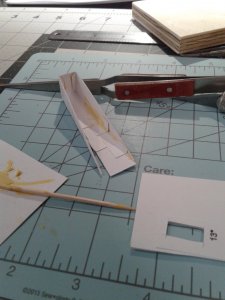

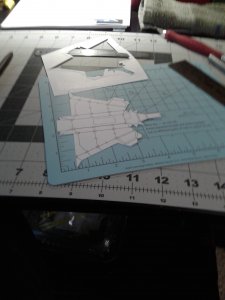

I glued the small, additional plates for the cockpit, to scrap card to laminate them, rolled them and they stayed flat and were easy to cut. Cut some cereal box to form a stiffener for the floor of cockpit section. UHU made gluing easy.

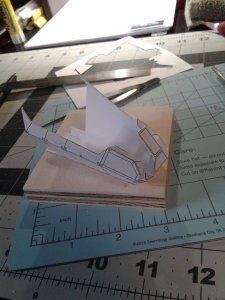

20190618_185936.jpg 20190618_192530.jpg 20190618_195223.jpg

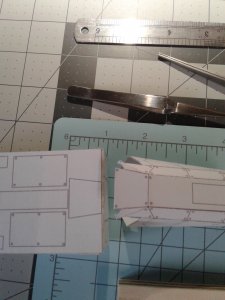

Starting the assembly and gluing, that is as far as I have gotten.

I am half afraid of assembling this. No where in the 'instructions', does it show the cockpit in the aircraft, so I am not sure when that goes in. It looks like it would be in this section.

Having fun!

Scott ;-)


dr_tetrode

New Member
Jan 8, 2019
51
87
0
60
Got the UHU at the local scrapbook and stamp shop. Hope they keep it in stock. Mine has a blue twist off cap. They were trying it, so I need to get back there and buy some more! ;-)

Scott ;-)

  • Like
Reactions: Sudsy

Sudsy

New Member
Sep 29, 2018
216
496
0
37
Well, if you need reference pictures, let me know, I can always get you more assembled shots of whatever angle you need.


Famous Dave

Member
Jul 30, 2007
109
36
8
You are off to a great start. Thank you for the detailed assembly and experience commentary. This thread has so much useful information from assembly to even coloring information. I really am enjoying following your progress.
Dave

  • Like
Reactions: zathros and Sudsy

zathros

-----SENIOR----
Administrator
Moderator
Apr 6, 2013
10,584
5,772
83
Zathros, thanks, that is a good idea, test before using on model.

Got my pictures from the tablet.

Continuing on with the 'tabs', the assembly is finished.
View attachment 172396 View attachment 172397View attachment 172398


UHU glue experiment, continued. I am really liking this. I gut out the cockpit and scored and folded, and formed it. It stayed flat, while working with it.
View attachment 172403 View attachment 172404 View attachment 172405 View attachment 172406 View attachment 172407

I glued the small, additional plates for the cockpit, to scrap card to laminate them, rolled them and they stayed flat and were easy to cut. Cut some cereal box to form a stiffener for the floor of cockpit section. UHU made gluing easy.
View attachment 172408 View attachment 172409 View attachment 172410

Starting the assembly and gluing, that is as far as I have gotten.
View attachment 172411

I am half afraid of assembling this. No where in the 'instructions', does it show the cockpit in the aircraft, so I am not sure when that goes in. It looks like it would be in this section.

Having fun!

Scott ;-)
Dry fit. That will tell you if it will go in now, or can go in later. At each stage check to see if it fits, then put it in when you have too. :)


dr_tetrode

New Member
Jan 8, 2019
51
87
0
60
Thanks, will be doing doing the dry fit thing. I think I am close to cockpit time. The canopy is the next hurdle. So here goes.

Working on final glue up of the front of the fuselage.

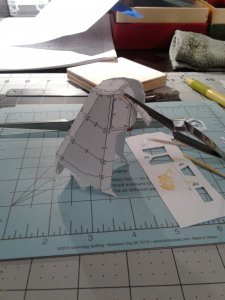

20190624_202206.jpg 20190624_202213.jpg 20190624_202501.jpg

Now starting on the canopy.

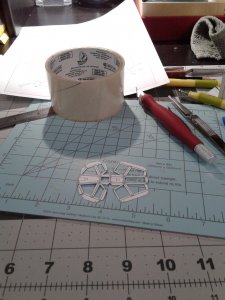

20190624_203839.jpg 20190624_205719.jpg 20190624_210603.jpg

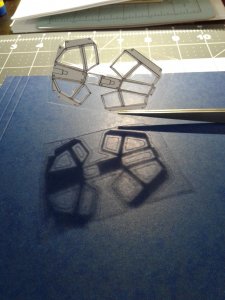

Now all cut out. How do I make it solid and clear? Packing tape? I will try.


While trying to fold it, the tabs keep getting in the way, so off they go.

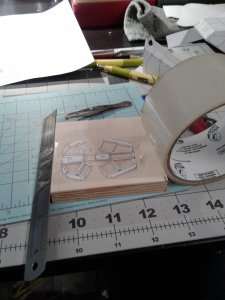

Now the fun part! I pulled off about 8 inches of tape, which I then taped down to the cutting board, ie. the first 2 inches, then slid the wood block on top of that and pushed it to the right to get a nice flat piece of tape as it came over the top of the block with sticky side up.
Then I used tweezers to pick up my frame, and place it in the middle of the block on the sticky side of the tape.

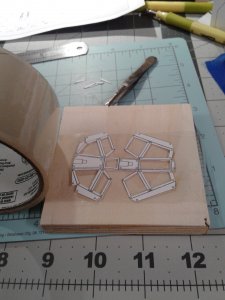

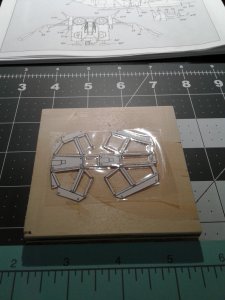

20190624_211824.jpg 20190624_211830.jpg

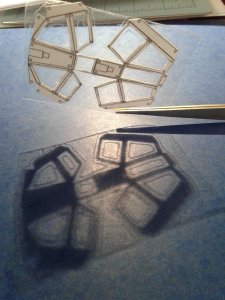

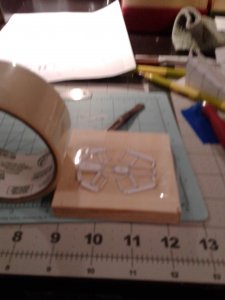

Then I laid a ruler on the sticky side of the tape, just off of the block, held it down and pulled off some more tape. Making sure it is tight against the block, I picked up the roll and carefully placed over the frame, sticky side down, to sandwich this frame between two layers of tape. Then I burnished the tape together here the windows are.

Next is to cut the frame out and figure out how to fold and glue it to the fuselage. In this build there are 2 more frames to go on top of this one.

Let the dry fitting begin!

Scott ;-)


Papa Mashy

Masher of paper
Jul 29, 2018
152
253
0
East Anglia, UK
I love your detailed build thread. :)
The tape for windows is interesting. I have a question though: won't the tape yellow with age over time? Is is special tape?


Sudsy

New Member
Sep 29, 2018
216
496
0
37
Let the dry fitting begin!
Anything less than three dry fits, and five different cut-out parts (with four ruined...), and a long stream of cuss words will be a smashing success! I do find the tape interesting. Keeps the number of layers down, and thinner, than my experience using acetate on the Vulture. Yellowing is of course a concern, but most cockpit canopies are tinted slightly anyway...


dr_tetrode

New Member
Jan 8, 2019
51
87
0
60
I do not know about the yellowing of the tape. The tape I am using is packing tape used to tape up moving boxes. I have some that are years ago taped in the garage, and are not yellow. The other side of this is that this is the first model I have built, with this complexity, so I am building this one as a throw away (ie. give to the grand kids to play). The techniques I am using are all new to me, so I try and see what works and what doesn't. I have no idea how this one goes together and there are no instructions, so I am guessing all the way through. And Sudsy, no re-cuts, yet! Slow and easy, seems to be working.

The tape had an interesting effect that I will try to capture in the next set of pictures. When I burnished it down, since I am using 110lb card-stock, it looks like there is a second frame in each window. The outline of where the two pieces of tape come together, towards the middle, and where the thickness of the card prevents them from actually sticking. I think it looks really cool.

OK, so now comes a question. Sudsy, you mentioned keeping the number of layers down. This model has 3 layers for the canopy, two with the flaps that look like armor on the bottom and the last has no flaps and is just the frame. But, in the first two layers, 12 and A12, there is some sort of detail drawn on the ceiling, and on the third it is blank on A12a. I have wrapped the first layer with the packing tape, which raises the question of glue.
1. What kind of glue would you recommend for shiny packing tape to paper?
2. What is the detail on 12 and A12 of the model? It is not on A12a, so do I just cut out the middle to let the detail show, and just keep a narrow frame around it?
3. When putting the canopy together, do I just fold the next layer and place on top of the lower layer, or should I cut the next layer apart and attach to the lower layer?
4. Sudsy, what is the reason for wanting less layers, which I think would be so much weaker and subject to 'battle damage' easier?

Dry fit and decision time is here.

Scott ;-)


dr_tetrode

New Member
Jan 8, 2019
51
87
0
60
Some more pictures.

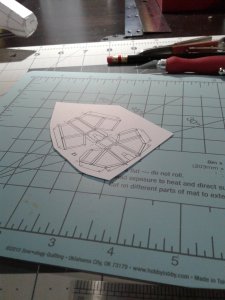

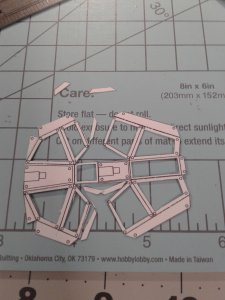

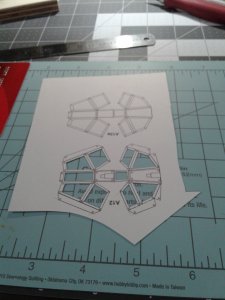

The taped part 12, note the detail on the left, what is that?

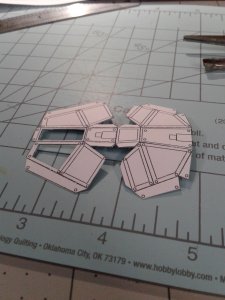

Cutting, inside first, of the second part A12. You can see the detail here, too.

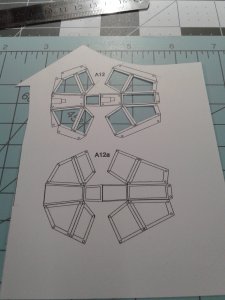

A better look and the detailing on A12 versus A12a parts.

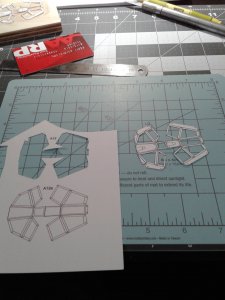

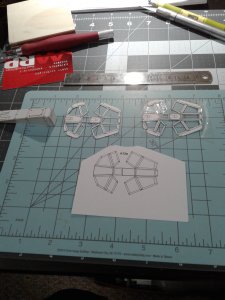

Cut out A12. Red card in the background used to guide the ball end for scoring and some cutting.

All 3 pieces in same picture with the piece that will be just above them on the left.

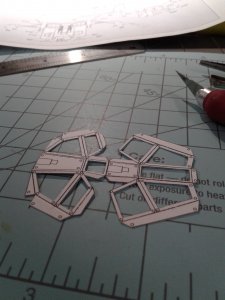

Now to figure out next steps and get a better picture of the effect of the tape.

Scott ;-)

  • Like
Reactions: Rhaven Blaack

dr_tetrode

New Member
Jan 8, 2019
51
87
0
60
On second thoughts, maybe I will greble it, and next time cut out the full window frames. Hmmm...... gun camera? IR sensor, FLIR sensor anyone?

Scott ;-)


Papa Mashy

Masher of paper
Jul 29, 2018
152
253
0
East Anglia, UK
That is a pretty cool effect on the windows.
I did have a look regarding tape degradation and you can buy conservators/archival tape for longevity without yellowing.

My 2 pence (cents) regarding your question about gluing packing tape surface to paper surfaces, would be PVA.

The stock answer of course, is to test out on scrap. ;)


Sudsy

New Member
Sep 29, 2018
216
496
0
37
OK, got it. The effect.
View attachment 172519 View attachment 172520

So, waiting for replies to my questions, before deciding what to do next.

Scott ;-)
So, less layers by less thickness. I had the cockpit exterior out of 110# bristol, acetate windows, and the onterior in 110# bristol. Three thick layers, therefore more armored than the "real" thing at scale... I ended up cutting and gluing each angled side, front, and top because as you can imagine, folding was not a viable option. If you check the post dates of my build, I think the cockpit took me three weeks alone to figure out... I used my Titebond 3 wood glue on the frames, and Tacky PVA glue on the acetate. I also have some scrap pieces laying around...

For quick reference:

20190330_142009.jpg 20190330_131218.jpg 20190330_131354.jpg

Let me know if you want another angle! I can get you any angle "as built" if that might help!
